Introduction
Creating an Ethernet to USB cable is an innovative way to extend the reach of USB devices over longer distances using existing Ethernet infrastructure. This can be particularly useful for connecting peripherals like keyboards, mice, or webcams across rooms or floors without the need for additional power sources. In this article, we will explore the process of making such a cable, including the materials needed and the steps involved.
Overview of the Process
To make an Ethernet to USB cable, you will need a few key components:
- USB Plugs: Both male and female USB Type A plugs are required.
- Ethernet Hubs: RJ45 connectors salvaged from network cards or purchased separately.
- CAT5 Ethernet Cable: This is the backbone of your extension cable.
- Soldering Tools: For connecting the USB plugs to the RJ45 connectors.
- Electric Tape: For insulation and protection of the soldered connections.
Materials and Tools
USB Plugs and RJ45 Connectors
- USB Male and Female Plugs: These can be sourced from standard USB cables.
- RJ45 Connectors: These are typically found on Ethernet cables and can be salvaged from old network cards.
- CAT5 Ethernet Cable: This cable has eight wires, which can be used to carry USB signals.
- Soldering Gun and Wire: For making secure connections between the USB plugs and RJ45 connectors.
- Electric Tape: To protect the soldered joints.

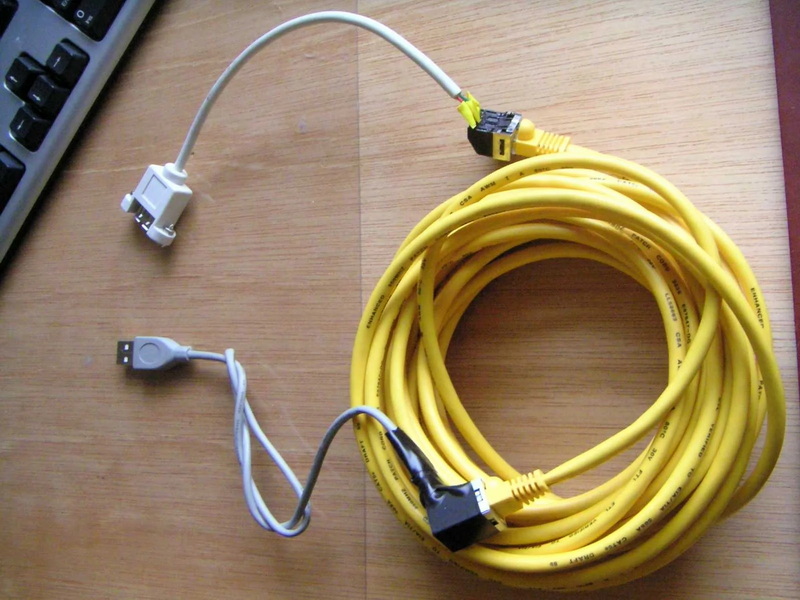

Step-by-Step Instructions
1. Prepare the USB Plugs: Cut the ends off a standard USB cable to expose the internal wires. You will have four wires: red (power), black (ground), green (data+), and white (data-).
2. Prepare the RJ45 Connectors: Use RJ45 connectors from Ethernet cables. These have eight pins, but you will only use four for the USB connection.
3. Connect the Wires:
- Pin 2 of the RJ45 connector should connect to the green wire (data+).
- Pin 4 should connect to the white wire (data-).
- Pin 6 should connect to the black wire (ground).
- Pin 8 should connect to the red wire (power).
4. Solder the Connections: Use a soldering gun to secure the wires to the RJ45 pins. Ensure the connections are clean and strong.
5. Insulate the Connections: Use electric tape to cover the soldered joints, protecting them from short circuits.
6. Repeat for the Other End: Connect the other end of the CAT5 cable to another USB plug using the same method.
Applications and Limitations
Applications
- Extended USB Range: Useful for connecting devices over longer distances without needing additional power sources.
- Convenience: Can be used with existing Ethernet infrastructure, making it easy to set up in environments with pre-installed Ethernet cables.
Limitations
- Power Limitations: The maximum length of the extension is limited by the power requirements of the USB device. It's best suited for low-power devices like mice and keyboards.

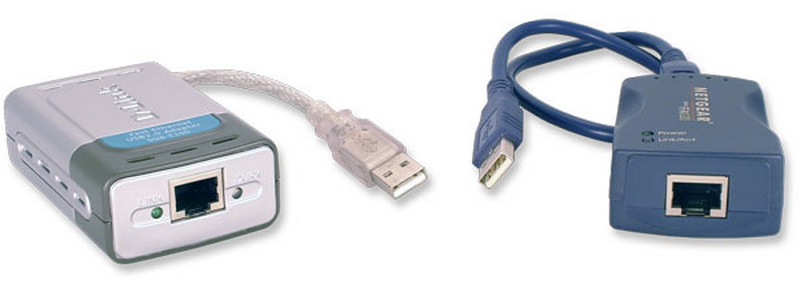

- Compatibility: These adapters work in pairs and are not intended for connecting Ethernet devices directly to USB ports.
Troubleshooting Common Issues
If your Ethernet to USB cable is not working as expected, here are some common issues to check:
- Incorrect Wiring: Ensure that the wires are connected correctly to the RJ45 pins.
- Poor Soldering: Check that the soldered connections are secure and not causing short circuits.
- Insufficient Power: If the device requires more power than the cable can provide, it may not function properly.
Advanced Considerations
Power Delivery
When using these cables, it's essential to consider the power requirements of the device. USB devices typically require up to 5V and 500mA of power. If the device needs more power, you might need to use a powered USB hub at the receiving end to ensure reliable operation.
Signal Integrity
The quality of the CAT5 cable used can affect the signal integrity. High-quality cables with better shielding can reduce interference and ensure reliable data transmission over longer distances.
Environmental Factors
Environmental factors such as temperature and humidity can affect the performance of the cable. Ensure that the cable is protected from extreme conditions to maintain its reliability.
Practical Uses in Different Environments
Home Use
In home environments, these cables can be useful for connecting devices like webcams or keyboards across rooms without needing additional power outlets.
Office Use
In offices, they can be used to connect peripherals to computers located far from the user's desk, making it easier to set up workstations without needing additional power sources.
Event Setup
During events, these cables can be used to connect devices like microphones or cameras to control rooms or recording equipment located at a distance.
Conclusion
Creating an Ethernet to USB cable is a creative solution for extending the reach of USB devices. While it has its limitations, it can be a cost-effective and convenient way to connect peripherals across longer distances. However, it's crucial to follow the wiring instructions carefully and ensure that the soldered connections are secure.
Frequently Asked Questions
1. What Materials Are Needed to Make an Ethernet to USB Cable?
To make an Ethernet to USB cable, you need USB male and female plugs, RJ45 connectors, a CAT5 Ethernet cable, a soldering gun, and electric tape.
2. How Do I Connect the USB Wires to the RJ45 Connector?
Connect the green wire to pin 2, the white wire to pin 4, the black wire to pin 6, and the red wire to pin 8 of the RJ45 connector.
3. What Are the Limitations of Using an Ethernet to USB Cable?
The cable is limited by the power requirements of the USB device and should only be used with low-power devices. It also works in pairs and is not suitable for connecting Ethernet devices directly to USB ports.
4. Can I Use This Cable for High-Power Devices?
No, this cable is best suited for low-power devices like mice and keyboards due to power limitations.
5. How Long Can the Ethernet to USB Cable Be?
The maximum length is limited by the power required by the USB device, but generally, it can extend up to 25 feet or more depending on the device's power needs.
