Creating an aux to USB cable is a useful DIY project that can help you connect devices with different audio interfaces. This guide will walk you through the process, providing detailed instructions and visual aids to ensure a successful outcome.
Introduction
In today's world of diverse audio devices, compatibility issues often arise when trying to connect different types of equipment. For instance, if you have a device with an aux output but need to connect it to a USB port, a custom aux to USB cable can be the solution. This project involves some basic electronics knowledge and tools, but with patience and the right materials, you can create a functional cable.
Materials Needed
- Aux Cable: A standard aux cable with a 3.5mm jack.
- USB Cable: A USB cable for the other end of your adapter.
- USB Sound Card: This is crucial for converting analog audio signals to digital signals that a computer can understand.
- Soldering Iron and Solder: For connecting wires.
- Wire Strippers: To strip the insulation from the wires.
- Heat Shrink Tubing: To protect the soldered connections.
Step-by-Step Instructions
1. Prepare the Cables: Cut both the aux and USB cables to the desired length. Use wire strippers to expose the internal wires.
2. Identify the Wires:
- Aux Cable: Typically has three wires—left channel, right channel, and ground.
- USB Cable: Has four wires—red (+5V), black (GND), white (left channel), and green (right channel).
3. Connect the Wires:
- Connect the left channel of the aux cable to the white wire of the USB cable.
- Connect the right channel of the aux cable to the green wire of the USB cable.
- Connect the ground of the aux cable to the black wire of the USB cable.
4. Use a USB Sound Card:
- Connect the USB sound card to the USB end of your cable. This device converts the analog audio signal from the aux cable into a digital signal that can be read by a computer.
5. Solder and Insulate: Use a soldering iron to secure the connections and cover them with heat shrink tubing for protection.
Visual Guide

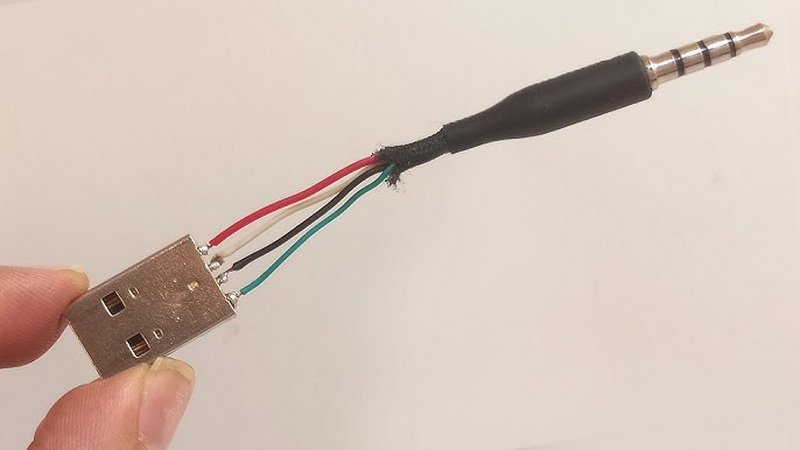

To better understand the process, it's helpful to visualize the steps involved. Here's a detailed description of what you should see:
- Aux Cable Wires: The aux cable typically has three wires: one for the left audio channel, one for the right audio channel, and one for ground. These wires are usually color-coded for easy identification.
- USB Cable Wires: The USB cable has four wires: red for power (+5V), black for ground, white for the left audio channel, and green for the right audio channel. However, in this project, you will primarily focus on the ground, left channel, and right channel wires.
Common Issues and Solutions
Troubleshooting Tips
If your cable doesn't work as expected, here are some common issues and solutions:
1. No Sound: Check if all connections are secure and not short-circuited. Ensure that the USB sound card is properly connected and recognized by your computer.
2. Distorted Sound: This could be due to poor soldering or interference. Use better quality components and ensure all connections are well insulated.
3. Compatibility Issues: Some USB sound cards may not work with all devices. Try using a different sound card or updating your device's drivers.
Advanced Modifications
Adding a Microphone Input
If you want to enhance your setup by adding a microphone input, you can do so by using a USB sound card that supports microphone inputs. This is particularly useful for recording voiceovers or participating in voice chats.
1. Choose a Compatible Sound Card: Select a USB sound card that has a microphone input. These sound cards usually have an additional jack for the microphone.
2. Connect the Microphone: Connect your microphone to the sound card's microphone input. Ensure that the microphone is compatible with the sound card's input type (e.g., 3.5mm or XLR).
3. Configure the Sound Settings: On your computer, go to the sound settings and select the USB sound card as the default recording device. This will allow you to use the microphone for recording or voice chat.
Safety Precautions
When working with electronics, safety is paramount. Here are some precautions to keep in mind:
- Use Protective Gear: Always wear safety glasses and gloves when soldering to protect yourself from splashes of hot solder.
- Avoid Overheating: Ensure that your soldering iron is set to the correct temperature to avoid damaging components or causing a fire.
- Work in a Well-Ventilated Area: Soldering can release fumes that are harmful if inhaled. Work in a well-ventilated area to minimize exposure.
Conclusion
Creating an aux to USB cable is a practical DIY project that can help bridge compatibility gaps between different audio devices. With the right materials and a bit of patience, you can successfully build a functional cable that enhances your audio connectivity options. Remember to use high-quality components and ensure all connections are secure to achieve the best results.
