USB Y cables are versatile tools used to connect multiple devices to a single USB port, providing both power and data transfer capabilities. They are particularly useful for devices that require more power than a single USB port can supply, such as external hard drives and optical disk drives. In this article, we will explore the basics of USB Y cables, their applications, and a step-by-step guide on how to make one.

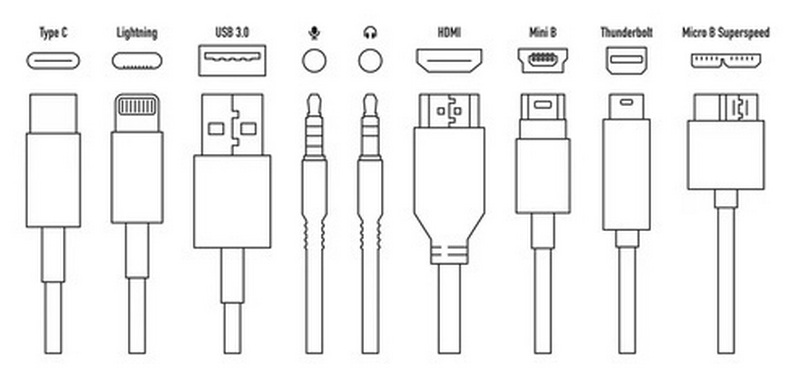

Introduction to USB Y Cables

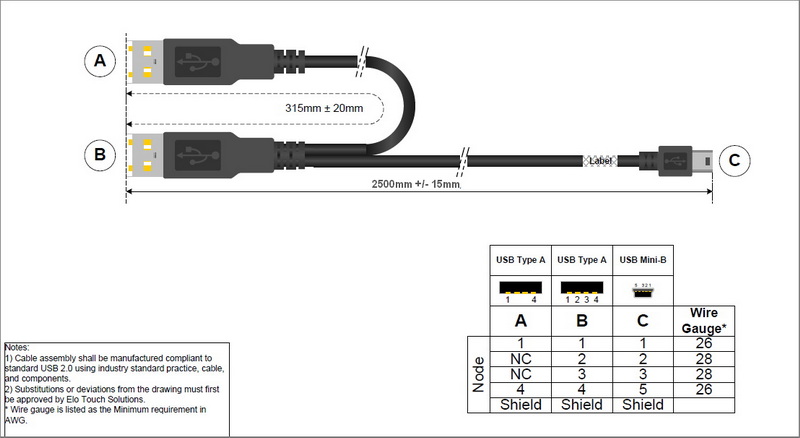

USB Y cables are designed with two connectors at one end and a single connector at the other. This configuration allows devices to draw power from two USB ports simultaneously, ensuring that power-hungry devices receive the necessary voltage to function properly. The most common use of USB Y cables is to power devices that exceed the power output of a single USB port.
Common Applications of USB Y Cables
1. Powering External Hard Drives: Many portable hard drives require more power than a single USB port can provide. A USB Y cable solves this issue by drawing power from two ports.
2. Charging Power-Hungry Devices: Devices like tablets often charge slowly or not at all from a single USB port. A Y cable can provide the extra power needed for efficient charging.
3. Powering USB Hubs: Some unpowered USB hubs may require more power than a single port can supply. A Y cable can provide the necessary power to run multiple devices through the hub.
How USB Y Cables Work

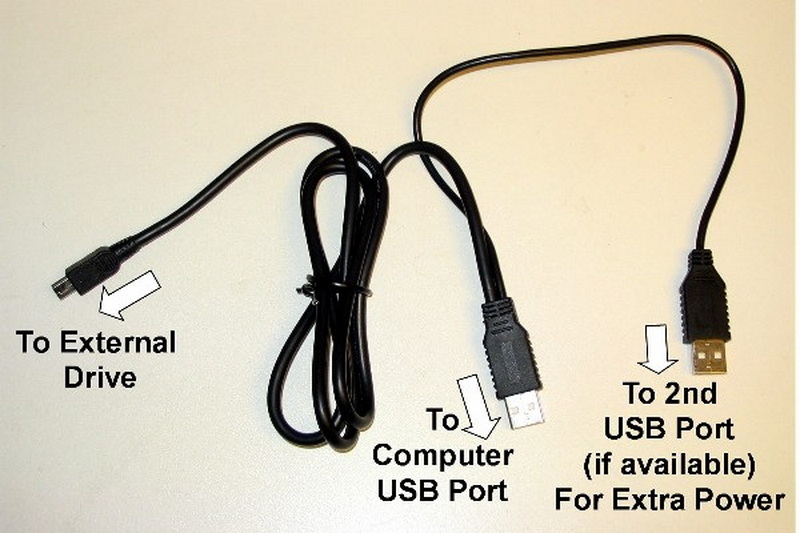

USB Y cables work by combining power sources or splitting signals. In power-only Y cables, the two USB-A connectors on the "Y" end draw power from two separate USB ports. For power and data Y cables, one connector handles both data transfer and power supply, while the other is used solely for additional power.
Types of USB Y Cables
- Power-Only Y Cables: These cables are used to draw power from two USB ports to supply devices that require more power than a single port can provide.
- Power and Data Y Cables: These cables allow devices to receive both power and data from a single connection, with one leg providing additional power.
Making a USB Y Cable
To make a USB Y cable, you will need:
- Two male USB-A connectors
- One female USB-A connector
- A length of USB cable (with four wires: VBUS, D-, D+, and GND)
- Wire strippers
- Soldering iron
Step-by-Step Instructions
1. Strip the USB Cable: Use wire strippers to expose the four wires inside the USB cable.

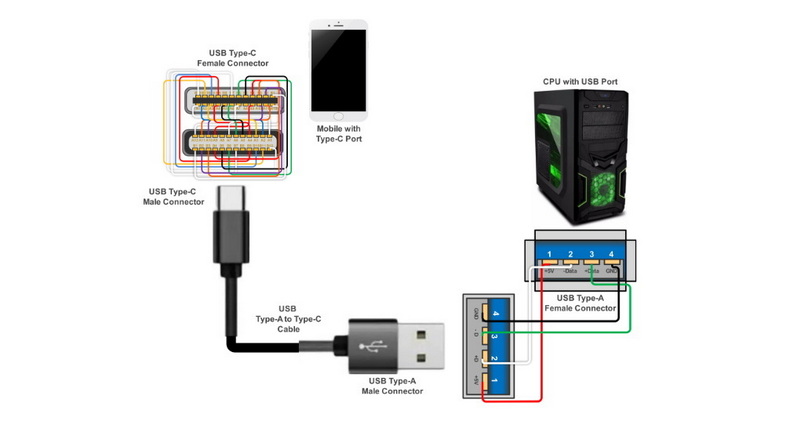

2. Identify the Wires: The wires are typically colored as follows: red (VBUS), white (D-), green (D+), and black (GND).
3. Connect the Power-Only Leg: Connect the red and black wires from the power-only leg to the corresponding wires on the female connector. This leg will only provide power.
4. Connect the Data and Power Leg: Connect all four wires (red, white, green, and black) from the data and power leg to the corresponding wires on the female connector. This leg will handle both data transfer and power supply.
5. Solder the Connections: Use a soldering iron to secure the connections.
6. Test the Cable: Before using the cable, ensure that it works correctly by testing it with a device.
Safety Considerations
When making a USB Y cable, it's crucial to follow safety guidelines to avoid electrical overloads or damage to devices. Ensure that the total current draw does not exceed the capacity of the USB ports or the cable itself.
Common Issues with USB Y Cables
One common issue with USB Y cables is that they are not officially supported by the USB specification, which can lead to compatibility problems with some devices. Additionally, improper wiring can cause electrical issues.
Troubleshooting USB Y Cables
If your USB Y cable is not working, here are some steps to troubleshoot:
- Check for Loose Connections: Ensure that all connections are secure and properly soldered.
- Verify Compatibility: Make sure the device is compatible with the cable's configuration.
- Inspect the Cable: Look for any signs of damage or wear on the cable.
Alternatives to USB Y Cables
While USB Y cables are convenient, there are alternative solutions for powering devices:
- Powered USB Hubs: These hubs have their own power supply and can provide power to multiple devices without needing a Y cable.
- Separate Power Adapters: Using a separate power adapter for devices can eliminate the need for a Y cable.
Choosing the Right USB Y Cable
Choosing the right USB Y cable depends on your device's power requirements. If your device needs both power and data, ensure the cable supports both functions. For devices requiring only power, a power-only Y cable is sufficient.
Future Developments in USB Technology
As USB technology evolves, we see advancements in power delivery and data transfer speeds. Newer standards like USB-C offer higher power output and faster data transfer rates, potentially reducing the need for Y cables in some applications.
Conclusion
USB Y cables are useful tools for managing power and data connections for devices that require more power than a single USB port can supply. By understanding how they work and following a simple DIY guide, you can create your own USB Y cable. However, it's important to adhere to safety standards and ensure compatibility with your devices.
Frequently Asked Questions (FAQ)
1. What is a USB Y cable used for?
- USB Y cables are used to connect devices that require more power than a single USB port can supply, such as external hard drives and optical disk drives.
2. Can I make my own USB Y cable?
- Yes, you can make your own USB Y cable using basic electronics tools and following proper safety guidelines.
3. Are USB Y cables supported by the USB specification?
- No, USB Y cables are not officially supported by the USB specification, which can lead to compatibility issues with some devices.
4. What are the safety considerations when using a USB Y cable?
- Ensure that the total current draw does not exceed the capacity of the USB ports or the cable itself to avoid electrical overloads.
5. Can USB Y cables be used for data transfer only?
- While USB Y cables are primarily used for power, they can also handle data transfer when configured to do so.
