Introduction to USB to DB9 Serial Cables

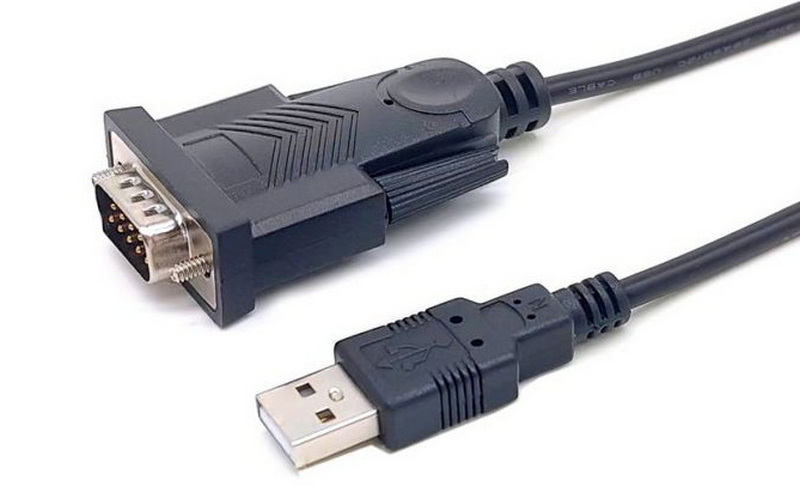

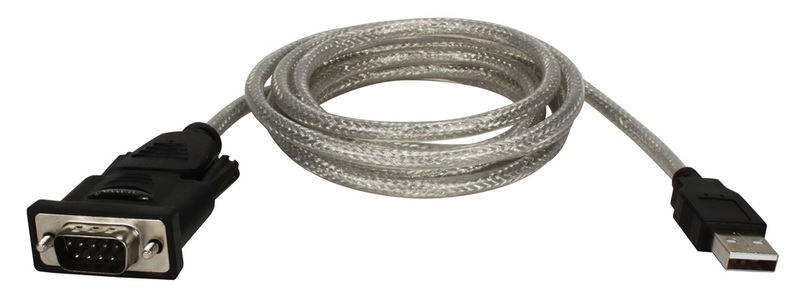

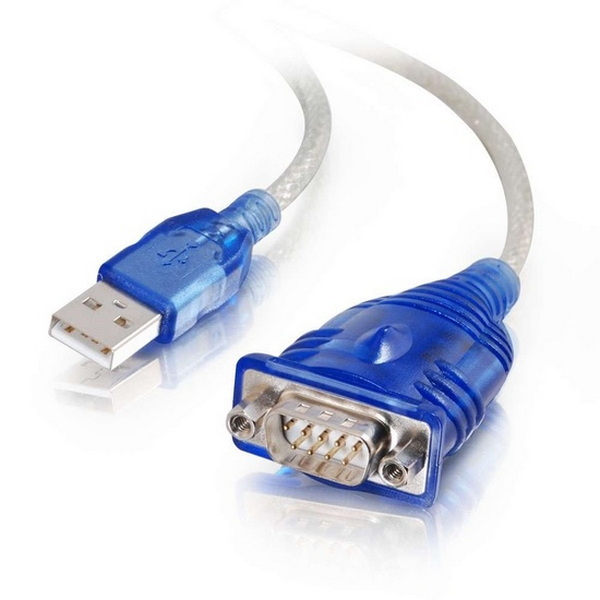

USB to DB9 serial cables are essential for connecting devices with RS-232 serial ports to modern computers that lack these ports. These cables enable communication between devices such as modems, network switches, and console servers, and a computer's USB port. In this article, we will explore how to make a USB to DB9 serial cable, discuss the components involved, and provide troubleshooting tips.
Components Needed
To create a USB to DB9 serial cable, you will need the following components:

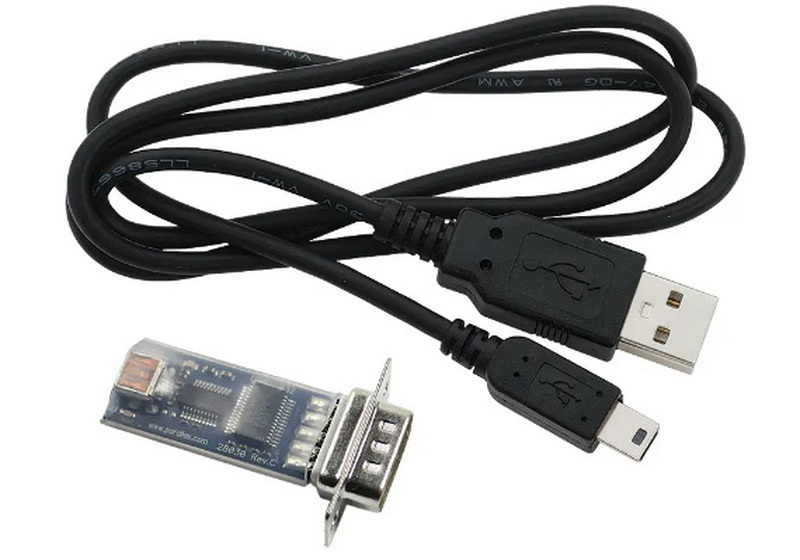

- USB to Serial Converter Chip: This is the core component that converts USB signals to RS-232 signals. Common chips include the Prolific PL2303GT and FTDI FT232R. These chips are crucial as they handle the conversion process efficiently and are widely supported by various operating systems.
- DB9 Connector: A 9-pin connector used for RS-232 serial communication. It is important to ensure that the connector is of high quality to prevent signal degradation.
- USB-A Connector: A male USB-A connector to connect to the computer. This connector should be compatible with the USB port on your computer.
- Cable: A shielded cable to reduce interference. Shielding is important as it protects the signal from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable data transmission.
- Soldering Tools: For assembling the connectors. Proper soldering techniques are essential to ensure strong and reliable connections.
Step-by-Step Assembly Guide
1. Prepare the Cable: Cut the shielded cable to the desired length. Ensure it is long enough to connect your devices comfortably but not so long that it introduces unnecessary signal degradation.
2. Strip the Cable Ends: Use a wire stripper to expose the internal wires. Typically, you will have three wires: red (TX), black (RX), and a shield (GND). The shield is crucial for grounding and reducing interference.
3. Assemble the DB9 Connector:
- Connect the wires to the appropriate pins on the DB9 connector:
- Pin 2: Red (TX)
- Pin 3: Black (RX)
- Pin 5: Shield (GND)
- Secure the wires using a crimping tool. Ensure that the connections are tight and secure to prevent signal loss.
4. Assemble the USB-A Connector:
- Connect the USB to Serial converter chip to the USB-A connector. This step usually requires soldering. It is important to follow proper soldering techniques to avoid overheating the components.
- Ensure proper connections for power (VCC), ground (GND), and data lines. The data lines should be connected correctly to ensure proper communication between the USB and serial interfaces.
5. Final Assembly:
- Connect the DB9 and USB-A connectors to the cable.
- Use heat shrink tubing to protect exposed connections. This helps prevent short circuits and protects the cable from environmental factors.
Testing the Cable
After assembly, test the cable for continuity using a multimeter. Ensure that each pin on the DB9 connector is correctly connected to the corresponding wire. This step is crucial to identify any wiring errors before using the cable.
Common Issues and Solutions
1: No Signal Detected
- Cause: Incorrect wiring or faulty components.
- Solution: Check wiring connections and replace any damaged components. Ensure that all connections are secure and not loose.
2: Data Corruption
- Cause: Electromagnetic interference (EMI) or radio frequency interference (RFI).
- Solution: Use a shielded cable and ensure proper grounding. Also, consider using noise filters if necessary.
3: Incompatibility Issues
- Cause: Incorrect driver installation or unsupported operating system.
- Solution: Install the correct drivers and ensure compatibility with your OS. Check the manufacturer's website for updated drivers.
4: Physical Damage
- Cause: Overheating or physical stress on the cable.
- Solution: Replace the damaged cable and avoid overheating. Use cable management techniques to reduce stress on the cable.
5: Configuration Errors
- Cause: Incorrect baud rate or parity settings.
- Solution: Adjust settings to match the device's requirements. Refer to the device's manual for correct settings.
Advanced Troubleshooting Techniques
In addition to the common issues, advanced troubleshooting may involve using specialized tools such as serial analyzers or logic analyzers. These tools can help identify more complex problems like timing issues or signal integrity problems.
Best Practices for Cable Maintenance
- Regular Inspection: Regularly inspect the cable for signs of wear or damage.
- Proper Storage: Store the cable in a dry, cool place to prevent degradation.
- Avoid Overheating: Ensure that the cable is not exposed to high temperatures, which can damage the components.
Conclusion
Creating a USB to DB9 serial cable requires attention to detail and the right components. By following these steps and troubleshooting common issues, you can ensure reliable communication between your devices. Proper maintenance and regular inspection can extend the lifespan of the cable and prevent unnecessary downtime.
Frequently Asked Questions
1. What is the purpose of a USB to DB9 serial cable?
- This cable connects devices with RS-232 serial ports to computers via USB.
2. What components are needed to make a USB to DB9 serial cable?
- USB to Serial converter chip, DB9 connector, USB-A connector, shielded cable, and soldering tools.
3. How do I test a USB to DB9 serial cable?
- Use a multimeter to check for continuity between pins.
4. What causes data corruption in serial communication?
- Electromagnetic interference (EMI) and radio frequency interference (RFI).
5. How do I resolve incompatibility issues with my USB to DB9 serial cable?
- Ensure correct driver installation and check OS compatibility.
