USB power cables are essential for charging devices and powering electronics. Whether you need a custom cable for a project or want to repurpose an old cable, creating your own USB power cable can be a rewarding DIY endeavor. This guide will walk you through the process step-by-step, offering detailed instructions, visual aids, and answers to common questions.
Materials Needed
Before starting, gather the following materials:

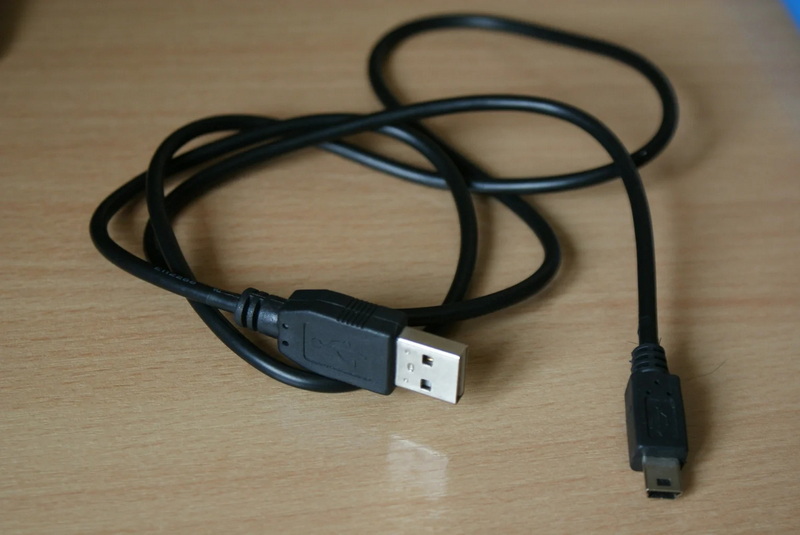

- An old USB cable
- Wire stripper
- Wire cutter
- Multimeter (optional for testing voltage)
- Jumper wires (male or female, depending on your project)
- Splice connectors (if soldering is not preferred)
- Soldering iron and solder (optional)
- Electrical tape or heat shrink tubing
- Hot glue gun (optional for reinforcement)
Step-by-Step Instructions
Step 1: Prepare the USB Cable
1. Cut the Cable
Use wire cutters to cut the USB cable to your desired length. Ensure the cut is clean and straight. It's crucial to avoid fraying the wires, which can lead to short circuits.
2. Strip the Insulation

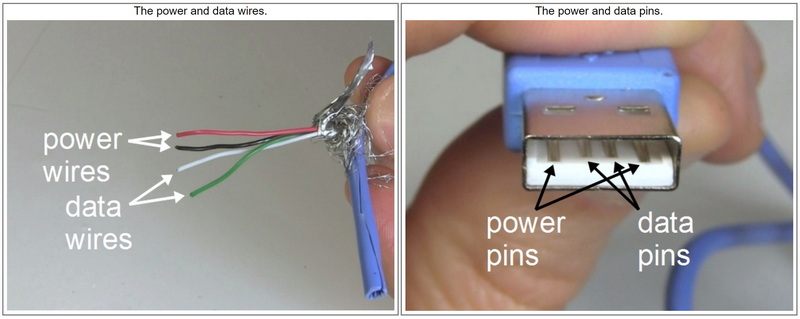

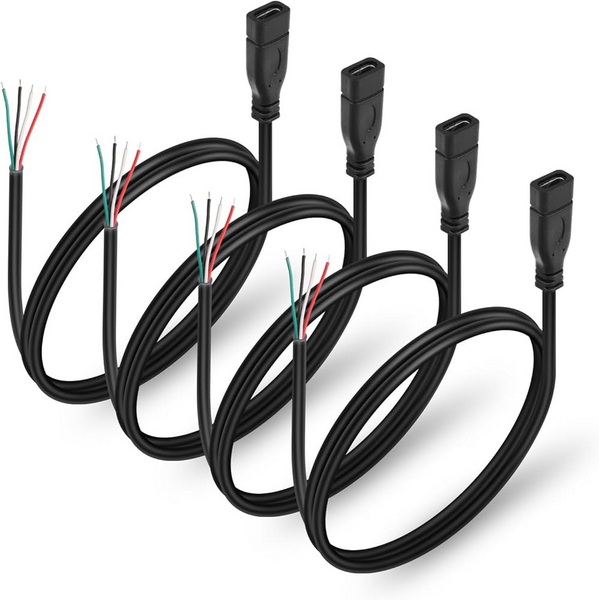

Using a wire stripper, carefully remove the outer insulation to expose the inner wires. Typically, USB cables contain four wires:
- Red: Power (+5V)
- Black: Ground
- White: Data (-)
- Green: Data (+)
3. Identify Power Wires
Separate the red and black wires from the white and green ones. The red and black wires will be used for power; clip off the data wires if they are not needed. This step is important for ensuring that your cable only carries power and does not interfere with data transmission.
Step 2: Connect the Wires
Option 1: Soldering Method
1. Tin the Wires

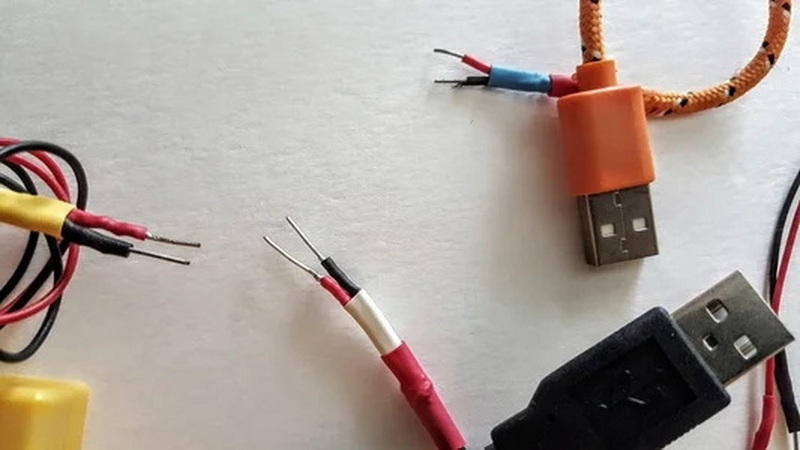

Strip the ends of the red and black wires and apply solder to them for easier connections. This process, known as tinning, helps create a strong bond when soldering.
2. Attach Jumper Wires
Solder male or female jumper wires to the red and black USB wires. Ensure a secure connection by applying enough solder but avoiding excess, which can cause short circuits.
3. Insulate Connections
Cover exposed solder joints with electrical tape or heat shrink tubing to prevent short circuits. Heat shrink tubing is preferred as it provides better insulation and protection against moisture.
Option 2: Splice Connector Method (No Soldering)
1. Insert Wires into Connectors
Place the stripped ends of the USB wires and jumper wires into splice connectors.
2. Crimp with Pliers
Use needle-nose pliers to crimp the connectors securely. Ensure they are tightly crimped to prevent loose connections.
3. Test Connection
Plug the cable into a power source and use a multimeter to check for proper voltage output. This step is crucial to ensure that your cable is functioning correctly.
Step 3: Reinforce Connections
To ensure durability:
- Apply hot glue around soldered or crimped connections.
- Use heat shrink tubing for added insulation.
- Test connections by gently pulling on wires to confirm they are secure.
Step 4: Test Your Cable
1. Plug your newly made USB power cable into a power source such as a wall adapter or power bank.
2. Use a multimeter to verify that it outputs 5V.
3. Connect your device or project to confirm functionality.
Common Challenges and Solutions
Short Circuits
- Cause: Exposed wires touching each other.
- Solution: Use electrical tape or heat shrink tubing to cover exposed connections.
Low Voltage Output
- Cause: Poor connections or damaged wires.
- Solution: Check for loose connections and ensure all solder joints are secure.
Overheating
- Cause: Insufficient insulation or excessive current draw.
- Solution: Use thicker wires if necessary and ensure proper insulation.
Advanced Applications
USB Power Distribution
For projects requiring multiple power outputs, you can create a USB power distribution system by connecting multiple USB cables to a single power source. This is useful for powering multiple devices simultaneously.
Custom Lengths and Configurations
One of the benefits of making your own USB cables is the ability to customize lengths and configurations. This is particularly useful for projects where standard cable lengths are not suitable.
Safety Considerations
- Electrical Safety: Always handle electrical components with care, and ensure that all connections are secure to prevent electrical shock.
- Fire Hazard: Avoid overheating by ensuring proper insulation and not exceeding the recommended current draw for your cable.
Troubleshooting Tips
- No Power Output: Check for loose connections and ensure the power source is functioning.
- Intermittent Power: Inspect for damaged wires or poor solder joints.
Conclusion
Creating your own USB power cable is simple and cost-effective, especially if you have old cables lying around. By following these steps, you can customize cables for various projects, ensuring they meet your specific needs. Whether you're a DIY enthusiast or an electronics hobbyist, this guide provides a comprehensive overview to help you achieve your goals.
FAQs
Q1: Can I use this method for USB-C cables?
Yes, but USB-C cables may require additional attention due to their multiple pins and advanced features like fast charging.
Q2: Do I need soldering skills?
Not necessarily! You can use splice connectors as an alternative to soldering.
Q3: What tools are essential for this project?
At minimum, you need wire cutters, wire strippers, electrical tape, and jumper wires.
Q4: How do I test if my cable works?
Use a multimeter to check voltage output or connect it to a device that requires 5V power.
Q5: Can I repurpose damaged cables?
Yes! Cut off damaged sections and use intact parts for your DIY project.
