USB cables are essential components in our digital world, connecting various devices and enabling data transfer and charging capabilities. While most commercially available USB cables have different connectors on each end, there are situations where a male-to-male USB cable can be useful. In this comprehensive guide, we'll walk you through the process of creating your own USB male to male cable, exploring the necessary materials, steps, and precautions to ensure a successful project.
Before we dive into the cable-making process, it's important to understand the different types of USB connectors. The most common types include:
- USB Type-A: The standard rectangular connector found on most computers and chargers

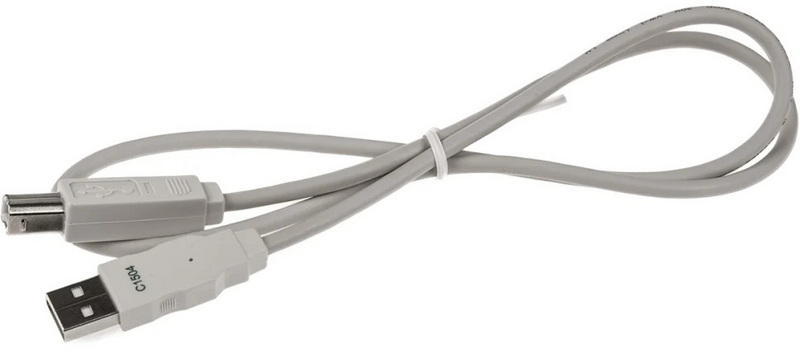

- USB Type-B: A square-shaped connector often used on printers and other peripherals

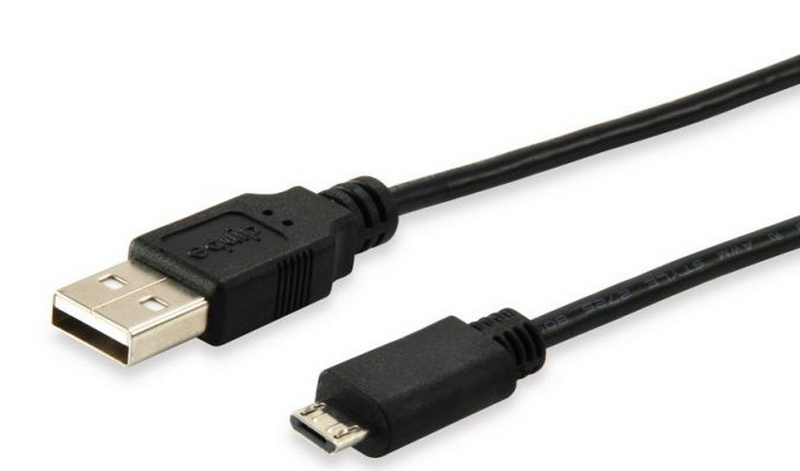

- USB Micro-B: A small, trapezoid-shaped connector commonly found on older smartphones and tablets
- USB Type-C: The newest standard, featuring a reversible oval-shaped connector

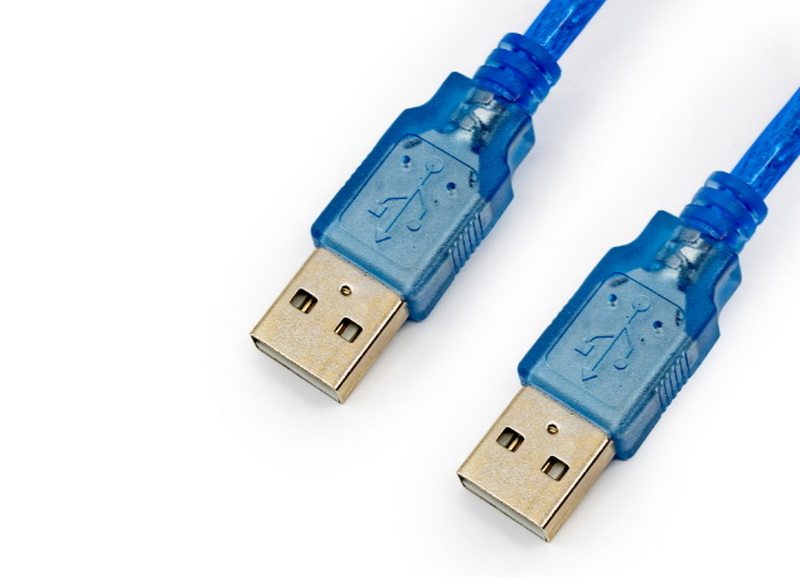

For this guide, we'll focus on creating a USB Type-A male to male cable, as it's one of the most versatile options.
To create your USB male to male cable, you'll need the following materials:
- Two USB Type-A male connectors
- USB cable (you can repurpose an existing cable or use bulk USB cable)
- Wire strippers
- Soldering iron and solder
- Heat shrink tubing
- Multimeter (for testing)
- Small screwdriver (if needed to open connectors)
- Wire cutters
Start by cutting your USB cable to the desired length. If you're repurposing an existing cable, remove the connectors from both ends. Strip about 1-2 cm of the outer insulation from each end of the cable, revealing the inner wires.
USB cables typically contain four wires:
- Red: +5V (power)
- White or Green: Data- (negative data line)
- Green or White: Data+ (positive data line)
- Black: Ground
Some cables may also include a braided shield, which can be connected to the ground.
If your USB Type-A male connectors are not already open, carefully pry them apart using a small screwdriver. Be gentle to avoid damaging the plastic housing.
Carefully solder each wire to the corresponding pin on the USB connector. The pinout for a USB Type-A connector is as follows:
1. Red wire (+5V) to Pin 1
2. White or Green wire (Data-) to Pin 2
3. Green or White wire (Data+) to Pin 3
4. Black wire (Ground) to Pin 4
Ensure that your solder joints are clean and secure. Avoid creating any bridges between pins.
Once the soldering is complete, slide small pieces of heat shrink tubing over each individual wire connection. Use a heat gun or lighter to shrink the tubing, providing insulation and protection for your solder joints.
Carefully place the soldered connections back into the USB connector housing. Make sure everything fits properly and the housing closes securely.
Before using your newly created USB male to male cable, it's crucial to test it for proper functionality and safety. Use a multimeter to check for continuity between the corresponding pins on each end of the cable. Also, verify that there are no short circuits between pins.
If desired, you can add some strain relief to the cable ends by using larger pieces of heat shrink tubing where the cable enters the connector housing. This will help protect your solder joints from stress and increase the longevity of your cable.
When creating and using a USB male to male cable, it's important to keep the following safety considerations in mind:
1. Never connect two power sources using this cable. It's designed for data transfer, not for connecting two computers' power systems.
2. Be cautious when using the cable with devices that aren't expecting a male-to-male connection. Some devices may not be compatible or could be damaged.
3. Always test your cable thoroughly before using it with valuable equipment.
4. If you're not confident in your soldering skills, consider seeking help from someone with more experience or purchasing a professionally made cable.

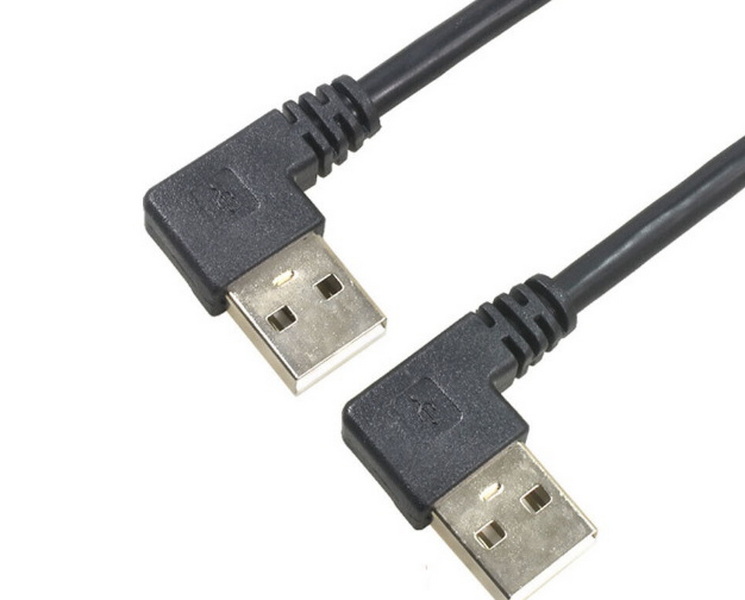

While less common than standard USB cables, male to male USB cables can be useful in several scenarios:
1. Direct file transfer between two computers
2. Connecting certain specialized equipment or industrial machinery
3. Some automotive applications
4. Specific testing and development scenarios
Always verify that your devices are compatible with a male to male connection before use.
If your homemade USB cable isn't working as expected, here are some common issues to check:
- Incorrect Wiring: Double-check that your wires are connected to the correct pins on both ends of the cable.
- Poor Solder Joints: Ensure that your solder joints are clean and secure. If necessary, re-solder any weak connections.
- Damaged Connectors: Inspect your connectors for any signs of damage. If damaged, replace them with new ones.
- Short Circuits: Use a multimeter to check for any short circuits between pins.
For those looking to enhance their cable-making skills, here are some advanced techniques:
- Shielding: If your cable includes a braided shield, connect it to the ground pin on both connectors to reduce electromagnetic interference.
- Cable Length: While USB cables can be extended, keep in mind that longer cables may reduce signal quality. For critical applications, it's best to keep cables as short as possible.
- Custom Cables: Experiment with different types of connectors and cable materials to create custom cables tailored to specific needs.
If you need to create cables with different connector types, such as USB-A to USB-C or Micro-USB to USB-C, the process is similar. The key is to match the correct wires to the appropriate pins on each connector type. Here's a brief overview:
- USB-C to USB-A: USB-C uses a different pinout and requires a reversible connector. Ensure that you align the wires correctly according to the USB-C pinout.
- Micro-USB to USB-C: Similar to USB-A, but you'll be working with smaller connectors. Be precise with your soldering to avoid damaging the connectors.
Creating your own USB male to male cable can be a rewarding project that allows you to customize cable length and potentially save money. However, it requires careful attention to detail and proper safety precautions. By following this guide, you should be able to create a functional and safe USB male to male cable for your specific needs.
Remember, if you're unsure about any step in the process or if you need a cable for critical applications, it's always best to opt for a professionally manufactured cable to ensure reliability and safety.
While a properly made cable can be safe, there are risks involved. Always test your cable thoroughly and use it cautiously, especially with valuable equipment. If you're unsure, it's best to use a professionally manufactured cable.
Yes, you can use a male to male USB cable to connect two computers for direct file transfer. However, make sure to use appropriate software and follow proper connection procedures to avoid any potential issues.
There could be several reasons, including incorrect wiring, poor solder joints, or damaged connectors. Double-check your connections, test for continuity with a multimeter, and ensure that the cable is properly assembled.
Yes, you can create cables with different connector types, such as USB-A to USB-C or Micro-USB to USB-C. The key is to match the correct wires to the appropriate pins on each connector type.
USB cables have a maximum recommended length of about 5 meters (16.4 feet) for USB 2.0 and 3 meters (9.8 feet) for USB 3.0 to maintain signal integrity. Longer cables may result in reduced performance or reliability.
