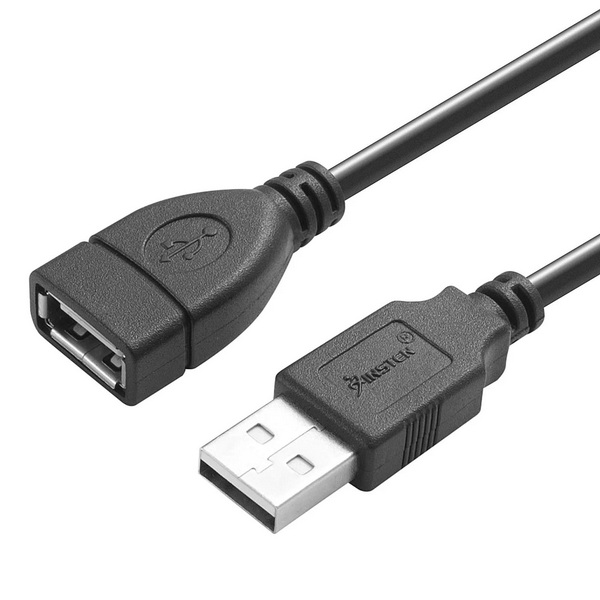

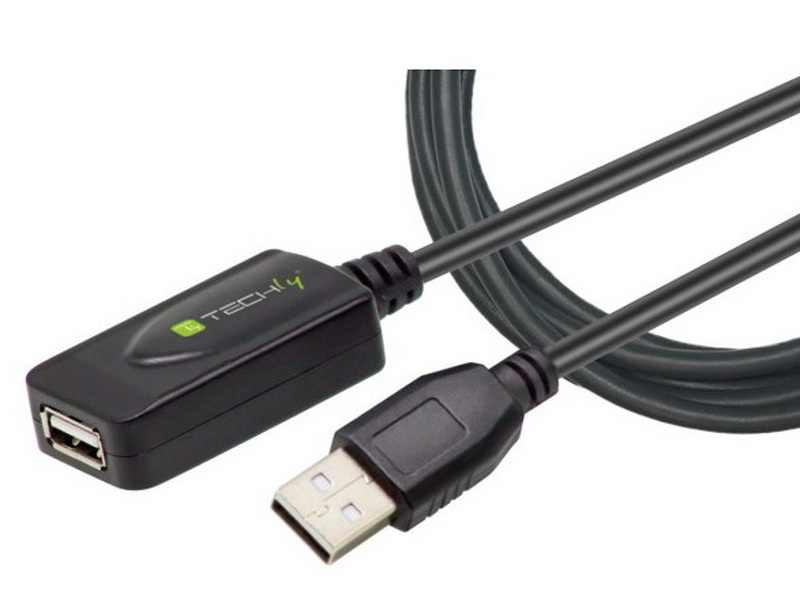

USB extension cables are incredibly useful for extending the length of your USB connections, whether for gaming, charging devices, or accessing hard-to-reach USB ports. Instead of buying one, you can make your own with some basic tools and skills. This guide will walk you through the process step by step, including materials, instructions, and troubleshooting tips.
Introduction
USB extension cables can save you from the frustration of short cables that limit your workspace or device placement. Making your own USB extension cable is not only cost-effective but also a fun DIY project that allows you to repurpose old cables and connectors. This project requires minimal technical knowledge and can be completed in a short amount of time.
Why Make Your Own USB Extension Cable?
1. Custom Length: You can create a cable of any length you need, which is particularly useful for connecting devices across long distances.
2. Cost-Effective: Repurposing old cables can save you money compared to buying a new extension cable.
3. Learning Opportunity: It's a great way to learn basic electronics and soldering skills.
Materials Needed
Before starting, gather the following materials:
- USB cable (from an old or unused device)
- USB female jack (can be salvaged from a broken charger)
- Wire strippers
- Soldering iron and solder
- Electrical tape
- Heat shrink tubing (optional but recommended for durability)
- Multimeter (for testing connections)
- Hot glue gun (optional for added strength)

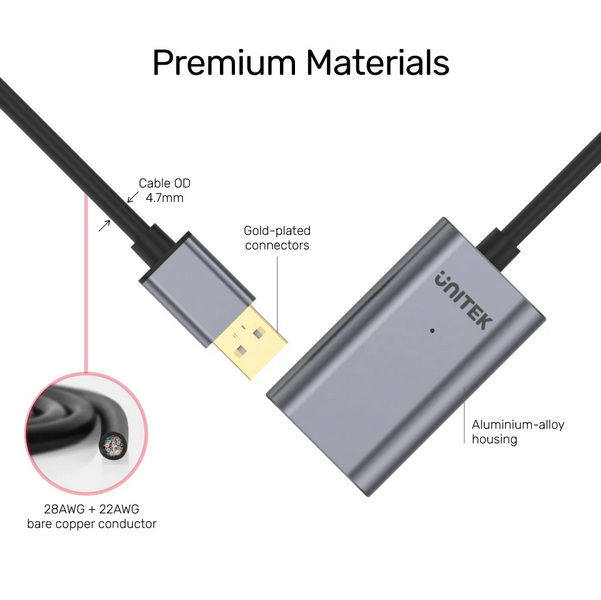

Choosing the Right Materials
- USB Cable: Ensure it has all four standard wires (red, black, white, green) for full functionality. For USB 3.0 cables, additional wires are required.
- USB Female Jack: This can be sourced from an old charger or purchased online. Ensure it matches the type of USB connector you need (e.g., USB-A, USB-C).
Step-by-Step Instructions
Step 1: Preparing the Cable
1. Cut the USB cable to your desired length.
2. Remove both ends of the cable to expose the internal wires.
3. Identify the wires inside:
- Red: 5V (power)
- Black: Ground
- White: Data-
- Green: Data+
- Thick black wire: Shielding ground (optional).
Step 2: Stripping and Soldering
1. Use wire strippers to carefully strip about 1 cm of insulation from each wire.
2. Twist together wires of the same color from both cable ends.
3. Apply flux to ensure a clean soldering process.
4. Use a soldering iron to connect the wires securely.
5. For shielding ground, connect it to the metal casing of the USB female port if applicable.
Step 3: Insulating and Testing
1. Cover each soldered connection with electrical tape or heat shrink tubing to prevent shorts.
2. Use a multimeter to test continuity:
- Set it to continuity mode.
- Check that corresponding pins on both ends are connected properly.
3. Optionally, apply hot glue around connections for added durability.
Troubleshooting Tips
If your USB extension cable doesn't work:
- Ensure no wires are touching each other, as this can cause short circuits.
- Recheck soldered connections for proper contact.
- Test with another device or port to rule out compatibility issues.
Common Issues and Solutions
1. No Power: Check that the red (5V) and black (ground) wires are securely connected.
2. Data Transfer Issues: Verify that the white (Data-) and green (Data+) wires are correctly soldered.
3. Interference: Ensure proper shielding by connecting the shielding wire to the metal casing.
Advanced Techniques
For those looking to enhance their DIY skills, here are some advanced techniques:
Using Heat Shrink Tubing
Heat shrink tubing provides a more durable and professional finish compared to electrical tape. It can be applied over soldered connections and then heated to shrink and seal the area.
Adding Additional Features
You can add features like LED indicators to show when the cable is powered or use different types of insulation for better durability.
Safety Precautions
When working with electrical components, safety is paramount:
- Always unplug devices before working on them.
- Use protective gear like gloves and safety glasses when soldering.
- Ensure good ventilation when using solder.
Conclusion
Making your own USB extension cable is a rewarding DIY project that combines creativity with practicality. With just a few tools and some patience, you can create a custom-length cable tailored to your needs. This project not only saves money but also provides an opportunity to learn valuable electronics skills.
FAQs
Q1: Can I use any USB cable for this project?
Yes, but ensure it has all four standard wires (red, black, white, green) for full functionality.
Q2: What tools are essential for this project?
Wire strippers, a soldering iron, and electrical tape are must-haves.
Q3: How do I test my finished cable?
Use a multimeter in continuity mode to check that each pin is correctly connected.
Q4: Can I extend USB 3.0 cables using this method?
Yes, but ensure you use high-quality cables with additional wires required for USB 3.0 functionality.
Q5: Is it safe to use homemade USB extension cables?
Yes, as long as proper insulation and testing are done to avoid short circuits or damage.
