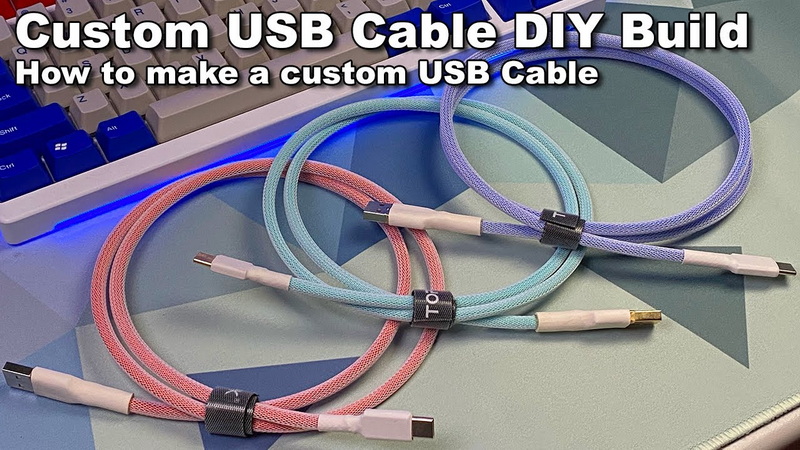

Creating your own USB charging cable can be a rewarding and cost-effective project. Whether you want to repair an old cable, customize the length, or simply learn a new skill, this guide will walk you through the process step by step. By the end, you'll have a functional USB charging cable and a deeper understanding of how USB connections work.
USB cables are essential for charging devices and transferring data. However, they can be expensive or come in inconvenient lengths. Making your own USB charging cable allows you to tailor it to your needs while also learning about electronics.
This guide focuses on creating a standard USB charging cable that can power most devices, such as smartphones and tablets. Understanding the basics of USB wiring and using the right materials are crucial for a successful project.
Before starting, gather the following materials:
- USB cable: Use an old or broken one.
- USB connectors: Male and female connectors (can be salvaged from other cables).
- Soldering iron and solder: For secure connections.
- Wire cutters and strippers: To prepare the wires.
- Heat shrink tubing or electrical tape: For insulation.
- Multimeter: To test connections.
- Optional tools: Razor knife, small perfboard (for added durability).

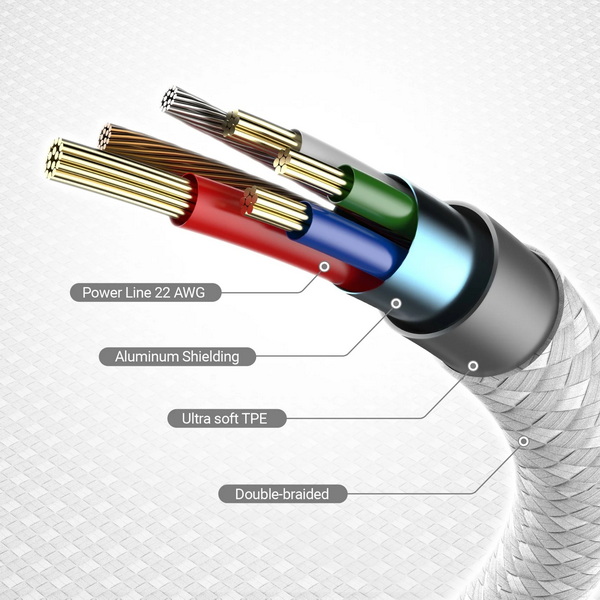

To successfully make a USB charging cable, you need to understand the basic wiring inside a USB cable:
| Wire Color | Function |
|---|---|
| Red | Power (+5V) |
| Black | Ground |
| Green | Data+ |
| White | Data- |
For charging purposes, you'll primarily use the red and black wires. However, if you're planning to use your cable for data transfer as well, you'll need to connect all four wires.
1. Inspect your USB cable for damage.
2. Use wire cutters to remove the damaged section or cut the cable to your desired length.
3. Strip about 1–2 cm of insulation from both ends of the cable to expose the inner wires.
1. Identify the red (power) and black (ground) wires.
2. Trim any frayed ends and "tin" them by applying a small amount of solder to make them easier to work with.
1. Solder the red wire to the positive terminal of the USB connector.
2. Solder the black wire to the ground terminal.
3. If you're using a perfboard for added durability, attach the connectors and wires securely to it.
1. Use heat shrink tubing or electrical tape to cover exposed wires and solder joints.
2. Ensure all connections are insulated to prevent short circuits.
1. Use a multimeter to check continuity between connectors.
2. Plug your cable into a power source and test it with a device.
Once you've assembled your cable:
- Double-check all connections with a multimeter.
- Test it with multiple devices to ensure compatibility.
- Use hot glue or additional tape for extra durability.
If your cable doesn't work as expected, here are some common issues to check:
- Loose Connections: Ensure that all solder joints are secure and not loose.
- Incorrect Wiring: Double-check that the red wire is connected to the positive terminal and the black wire to the ground.
- Insulation Issues: Make sure all exposed wires are properly insulated to prevent short circuits.
One of the benefits of making your own USB cable is the ability to customize its length. Whether you need a longer cable for convenience or a shorter one for portability, you can easily adjust the length during the assembly process.
USB technology has evolved over time, introducing new types of connectors like USB-C, which offers faster charging and data transfer speeds. If you want to make a USB-C charging cable, you'll need USB-C connectors and a cable that supports the higher speeds.
Some users might want to add additional features to their cables, such as built-in voltage regulators for safer charging or LED indicators to show when the cable is in use. These modifications require more advanced electronics knowledge but can enhance the functionality of your custom cable.
Making your own USB charging cable is not only practical but also an excellent way to learn about electronics and wiring. By following this guide, you can create a custom-length cable that suits your needs perfectly. Whether you're looking to save money, customize your setup, or simply enjoy DIY projects, this project offers a rewarding experience.
You'll need basic tools like a soldering iron, wire cutters, strippers, and optionally a multimeter for testing.
Yes, but you'll need to connect all four wires (red, black, green, white) instead of just red and black.
Yes, as long as you follow proper insulation techniques and test your connections thoroughly.
Use connectors that match your device's requirements (e.g., USB-A, USB-C).
Check for loose connections or incorrect wiring using a multimeter.
