MIDI (Musical Instrument Digital Interface) is a protocol used to communicate between electronic musical instruments, computers, and other devices. It allows for the control of various parameters such as pitch, volume, and tempo. However, with the advancement of technology, many modern devices have shifted towards USB connectivity, making MIDI to USB adapters essential for connecting older MIDI devices to newer systems.
Understanding MIDI and USB
MIDI is a serial communication protocol that operates at a baud rate of 31.25 kbps. It uses a five-pin DIN connector for its connections. On the other hand, USB (Universal Serial Bus) is a more modern interface that supports faster data transfer rates and is widely used in computers and other electronic devices.
To convert MIDI signals to USB, we need a device that can interpret MIDI data and send it over USB. Arduino boards, particularly those with native USB capabilities like the Arduino Leonardo and Arduino Micro, are ideal for this task.
Arduino Boards for MIDI to USB Conversion
Arduino boards like the Arduino Leonardo and Arduino Micro are based on the ATmega32u4 microcontroller, which supports native USB communication. This feature allows them to act as a USB MIDI interface when connected to a computer.
Arduino Leonardo:
- Native USB Support: Allows it to emulate a USB MIDI device.
- Analog and Digital Inputs: Can be used to add additional MIDI controls like potentiometers or buttons.
Arduino Micro:
- Compact Size: Suitable for projects where space is limited.
- Native USB Support: Similar to the Leonardo, it can present itself as a USB MIDI interface.

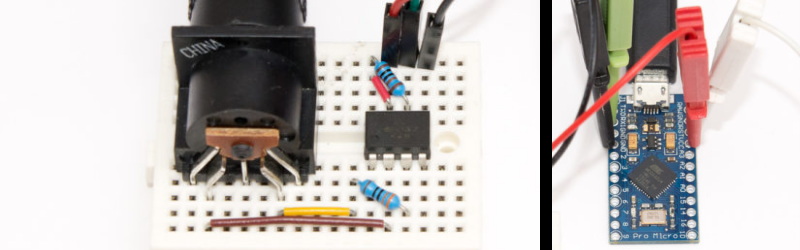

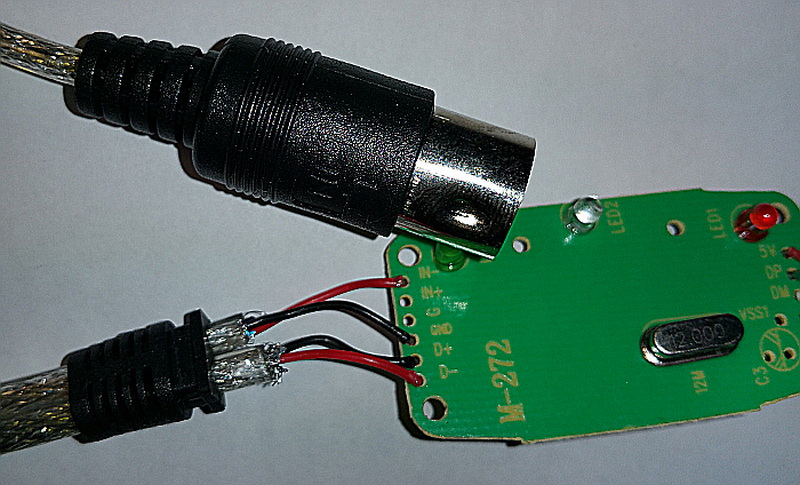

Building a MIDI to USB Adapter
To build a MIDI to USB adapter using an Arduino board, you will need the following components:
- Arduino Board (e.g., Arduino Leonardo or Micro)
- Opto-coupler (e.g., 6N137)
- Resistors (220Ω)
- MIDI Connector (5-pin DIN)
- Breadboard and Jumper Wires

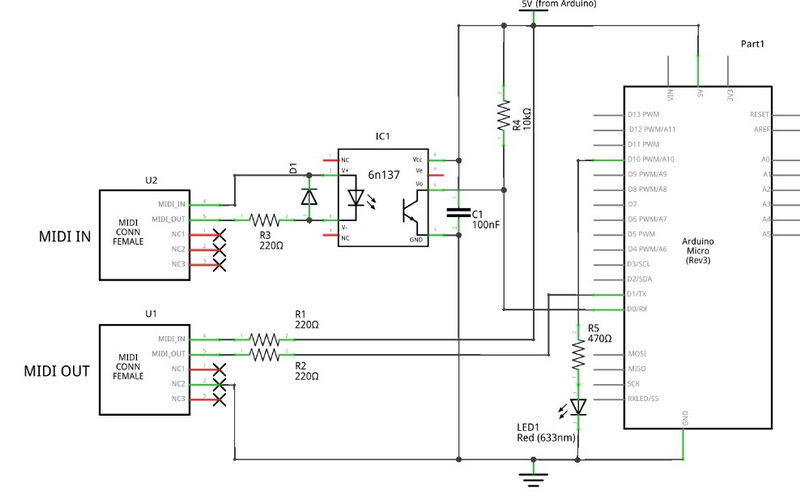

Circuit Diagram
The circuit involves connecting the MIDI IN and OUT connectors to the Arduino board using an opto-coupler for isolation. The opto-coupler ensures that the MIDI circuit is electrically isolated from the Arduino, preventing potential damage.
MIDI Circuit:
- Connect the MIDI IN pin 5 to the opto-coupler's input.
- Connect the opto-coupler's output to the Arduino's RX pin.
- For MIDI OUT, connect the Arduino's TX pin to the opto-coupler's input.
- Connect the opto-coupler's output to the MIDI OUT pin 5.
Software Implementation
On the software side, you can use libraries like the Control Surface library for Arduino. This library simplifies the process of handling MIDI data and allows for additional features like filtering specific MIDI messages.
Control Surface Library:
- Handles various aspects of the MIDI protocol.
- Allows for adding extra MIDI controls.
- Supports callback functions for processing MIDI data.
Common Issues and Solutions
Issue 1: Incorrect Pin Connections
One common issue is swapping pins 4 and 5 on the MIDI connector. Ensure that pin 2 is connected to ground only on the MIDI OUT connector, as per the MIDI standard.
Issue 2: Limited SysEx Support
Some libraries may not handle large SysEx packages well. This can be problematic when using MIDI editors or librarians that send extensive SysEx data. You may need to modify the library or use a different one that supports larger SysEx messages.
Issue 3: Baud Rate Problems
MIDI operates at 31.25 kbps. However, some implementations might use a slightly higher baud rate (e.g., 32.15 kbps) to avoid issues with byte detection in certain microcontrollers.
DIY MIDI to USB Projects
Several DIY projects involve converting MIDI signals to USB using Arduino boards. These projects often include building custom enclosures and using laser cutters to create precise designs.
Enclosure Design
When designing an enclosure, consider the placement of the USB port and MIDI connectors. You might need to carve out slots to accommodate the USB cable head.
Laser Cutting
Laser cutting can be used to create custom shapes for the enclosure, including slots for faders or buttons if you're adding additional MIDI controls.

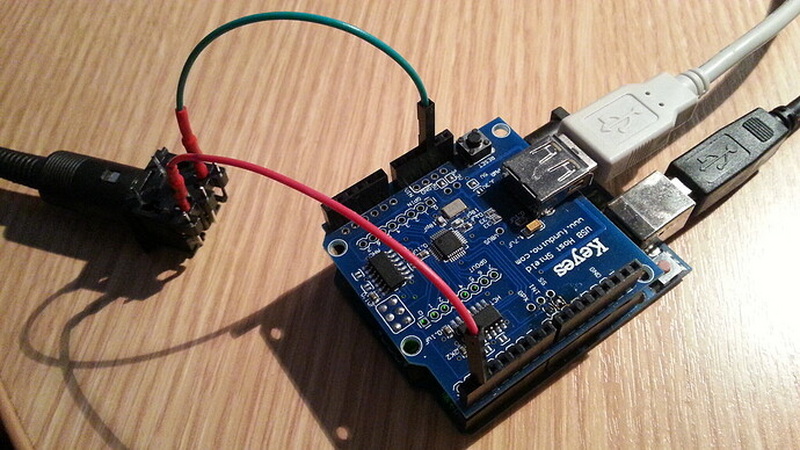

Using a USB MIDI Host
If you want to connect a USB MIDI device directly to a MIDI interface without a computer, you can use a USB MIDI Host. These devices act as a bridge between USB MIDI controllers and traditional MIDI gear.
USB MIDI Host Devices
- CAMOLA USB MIDI Host Box: A popular choice for converting USB MIDI to DIN MIDI.
- Kenton USB Host Box: Another reliable option for connecting USB MIDI controllers to MIDI interfaces.
Advanced MIDI Applications
MIDI to USB adapters can be used in various advanced applications, such as integrating MIDI devices with digital audio workstations (DAWs) or creating custom MIDI controllers.
Integrating with DAWs
Many musicians use MIDI devices to control virtual instruments within DAWs like Ableton Live or Logic Pro. A MIDI to USB adapter ensures seamless integration of older MIDI gear with these modern software tools.
Custom MIDI Controllers
By adding additional controls like buttons, sliders, or potentiometers to your Arduino-based MIDI to USB adapter, you can create custom controllers tailored to specific needs. This can enhance workflow efficiency and creativity in music production.
Troubleshooting Common MIDI Issues
When working with MIDI, several issues can arise, such as dropped notes, incorrect pitch, or timing problems. These issues often stem from incorrect baud rates, faulty connections, or software misconfigurations.
Dropped Notes
This can occur due to buffer overflows or incorrect baud rates. Ensure that your setup uses the correct baud rate and that buffers are properly managed.
Incorrect Pitch
Incorrect pitch issues might arise from misconfigured MIDI channels or incorrect note mapping. Check that your MIDI channels are correctly set up and that note mappings are accurate.
Future Developments in MIDI Technology
As technology advances, we can expect to see more sophisticated MIDI interfaces and devices. These might include wireless MIDI connectivity, improved latency, and enhanced compatibility with a wider range of devices.
Wireless MIDI Connectivity
Wireless MIDI technology allows for more flexible setups, eliminating the need for cables. This can be particularly useful in live performances or when working in studios with limited space.
Improved Latency
Reducing latency is crucial for real-time applications. Future developments might focus on minimizing delay times, ensuring that MIDI signals are transmitted almost instantaneously.
Conclusion
Creating a MIDI to USB adapter using an Arduino board is a feasible DIY project that can breathe new life into older MIDI devices. By understanding the basics of MIDI and USB communication and using the right hardware and software components, you can successfully build a functional MIDI to USB adapter. This project not only enhances compatibility with modern systems but also opens up possibilities for custom MIDI controllers and advanced applications in music production.
Frequently Asked Questions
1. What Arduino boards are suitable for MIDI to USB conversion?
- Arduino Leonardo and Arduino Micro are ideal due to their native USB support.
2. What components are needed for the circuit?
- Arduino board, opto-coupler, resistors, MIDI connector, breadboard, and jumper wires.
3. How do I handle large SysEx packages?
- You may need to modify the library or use a different one that supports larger SysEx messages.
4. What is the purpose of using an opto-coupler in the MIDI circuit?
- It provides electrical isolation between the MIDI circuit and the Arduino, preventing potential damage.
5. Can I use a USB MIDI Host to connect a USB MIDI device directly to a MIDI interface?
- Yes, devices like the CAMOLA USB MIDI Host Box can act as a bridge between USB MIDI controllers and traditional MIDI gear.
