Creating a micro USB to micro USB cable can be a useful DIY project for connecting devices that require this specific type of connection. This guide will walk you through the process step by step, including the materials needed and the assembly process. Additionally, we'll cover some common issues and provide tips for troubleshooting.
Introduction
Micro USB cables are commonly used for charging and data transfer between devices. However, there are scenarios where you might need a micro USB to micro USB cable, such as connecting two devices that both use micro USB ports. This could be for data transfer, charging, or other purposes. While these cables are not as common as standard USB cables, making one yourself can be a cost-effective and educational project.
Materials Needed
To make a micro USB to micro USB cable, you will need the following materials:
- Micro USB connectors (male and female): These can be purchased from electronic stores or online. Ensure that they are compatible with your devices and are of good quality.
- Thin insulated copper wire: Typically, you'll need four wires for a standard USB connection (red for power, black for ground, and two for data). The wires should be thin enough to fit comfortably within the micro USB connector but thick enough to handle the required current.
- Soldering iron and solder: For connecting the wires to the connectors. A temperature-controlled soldering iron is recommended for precise control.
- Heat shrink tubing: To protect the connections and make the cable more durable. This is essential for preventing short circuits and ensuring the longevity of your cable.
- Wire strippers: For removing insulation from the wire ends. These are crucial for preparing the wires for soldering.
Step-by-Step Instructions
1. Prepare the Wires: Cut four pieces of wire to the desired length. Typically, each wire should be about the same length to ensure even signal quality. If you're making a longer cable, consider using thicker wires to reduce signal loss.
2. Strip the Wire Ends: Use wire strippers to remove the insulation from both ends of each wire. Be careful not to strip too much insulation, as this can lead to exposed wire and potential short circuits.
3. Solder the Wires to the Connectors:

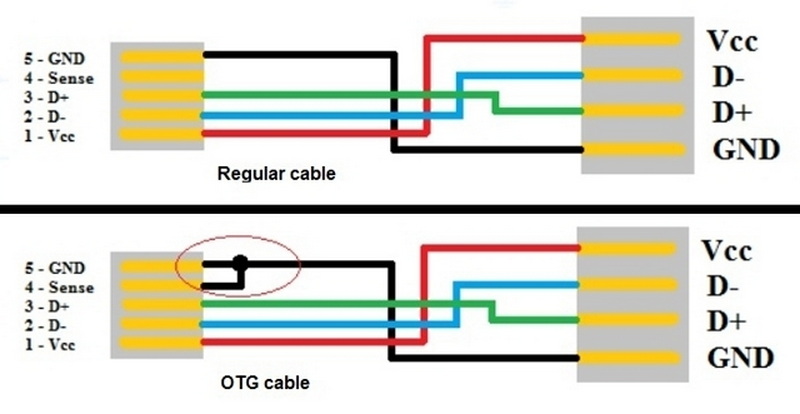

- For a micro USB connector, the pinout is as follows:
- Pin 1: VCC (Power)
- Pin 2: D-
- Pin 3: D+
- Pin 4: ID (Optional, usually not connected in standard cables)
- Pin 5: GND (Ground)
- Connect the wires to the appropriate pins on both connectors. Ensure that the connections are secure and apply a small amount of solder to each pin.
4. Apply Heat Shrink Tubing: Once the connections are secure, apply heat shrink tubing to protect them. This step is crucial for preventing moisture and physical stress from damaging the connections.
5. Test the Cable: Before finalizing, test the cable with a device to ensure it works correctly. This is important to catch any errors in the soldering process.
Tips and Variations
- Use High-Quality Materials: Ensure that your wires and connectors are of good quality to avoid signal loss or connection issues. High-quality materials will also ensure that your cable lasts longer.
- Custom Lengths: One of the benefits of making your own cable is that you can choose the exact length you need. This can be particularly useful for specific applications where standard cable lengths are not suitable.
- Color Coding: Use color-coded wires to keep track of which wire goes to which pin. This makes the assembly process much easier and reduces the chance of mistakes.
Common Issues
- Signal Loss: If the cable is too long, you might experience signal loss. This can be mitigated by using thicker wires or shorter lengths. Signal loss can also occur if the connections are not secure or if the cable is damaged.
- Connection Problems: Ensure that all connections are secure and protected with heat shrink tubing. Loose connections can lead to intermittent failures or complete loss of functionality.
Troubleshooting
If your cable does not work as expected, there are several things you can check:
- Check the Connections: Ensure that all wires are securely soldered to the correct pins.
- Inspect for Damage: Look for any signs of physical damage to the cable or connectors.
- Test with Different Devices: Try using the cable with different devices to rule out issues with a specific device.
Safety Precautions
When working with electronics, safety is paramount:
- Use Protective Gear: Always wear safety glasses and gloves when soldering to protect yourself from splashes of hot solder.
- Work in a Well-Ventilated Area: Soldering can release fumes that are harmful if inhaled in large quantities.
- Avoid Overheating: Be careful not to overheat the soldering iron, as this can damage components or start a fire.
Applications
Micro USB to micro USB cables can be used in various scenarios:
- Data Transfer: For transferring data between devices that both use micro USB ports.
- Charging: For charging devices from another device that supports USB OTG (On-The-Go) functionality.
- Custom Projects: In DIY electronics projects where a micro USB connection is required.
Conclusion
Making a micro USB to micro USB cable is a straightforward DIY project that can be completed with basic electronics tools. It's a great way to learn about electronics and create custom cables for specific needs. Whether you're looking to connect devices for data transfer or charging, this guide should help you get started.
Frequently Asked Questions
1. What Materials Do I Need to Make a Micro USB to Micro USB Cable?
You will need micro USB connectors (male and female), thin insulated copper wire, a soldering iron and solder, heat shrink tubing, and wire strippers.
2. How Do I Solder the Wires to the Connectors?
Strip the ends of the wires, apply a small amount of solder to each end, and then solder them to the appropriate pins on the micro USB connectors.
3. What Are the Common Issues with Homemade USB Cables?
Common issues include signal loss over long distances and connection problems if the soldering is not secure.
4. Can I Use Any Type of Wire for Making a USB Cable?
It's best to use thin insulated copper wire. Using Cat-5 cable is also a popular option for custom USB cables due to its availability and soldering properties.
5. How Do I Test My Homemade USB Cable?
Plug one end into a device and the other into a USB port to test for connectivity and data transfer.
