Creating a Micro USB OTG (On-The-Go) cable is a rewarding DIY project that allows you to connect USB devices like keyboards, mice, or flash drives to your smartphone or tablet. This article will guide you step-by-step through the process, including materials needed, instructions, and tips for success.
What is a Micro USB OTG Cable?
A Micro USB OTG cable enables your smartphone or tablet to act as a host device, allowing it to power and communicate with external peripherals such as USB drives, keyboards, or game controllers. This functionality is achieved by modifying the micro-USB connector to short specific pins together.
How OTG Works
OTG technology allows devices that typically act as peripherals to become hosts. This is particularly useful for Android devices, as it expands their capabilities beyond their built-in features. For example, you can connect a keyboard to your tablet for easier typing or use a USB flash drive to expand your storage.
Materials and Tools Required
Materials:
- A micro-USB cable
- A USB female port (from an old USB extension cable or device)
- Electrical tape or heat shrink tubing
- Solder wire
Tools:
- Soldering iron
- Wire stripper or cutter
- Tweezers
- Hot glue gun (optional for added durability)
Choosing the Right Materials
When selecting materials, ensure that the micro-USB cable is of good quality and has minimal damage. The USB female port should be compatible with standard USB devices. Solder wire should be thin enough to fit within the micro-USB connector but thick enough to carry the necessary current.
Step-by-Step Instructions
Step 1: Prepare the Cables
1. Cut the micro-USB cable to expose the internal wires.
2. Strip the insulation from both ends of the wires to reveal the color-coded wires inside (red, black, white, green).
Step 2: Open the Micro USB Connector
1. Carefully open the micro-USB connector using a knife or tweezers.
2. Locate pins 4 and 5 inside the connector. These pins are crucial for OTG functionality.

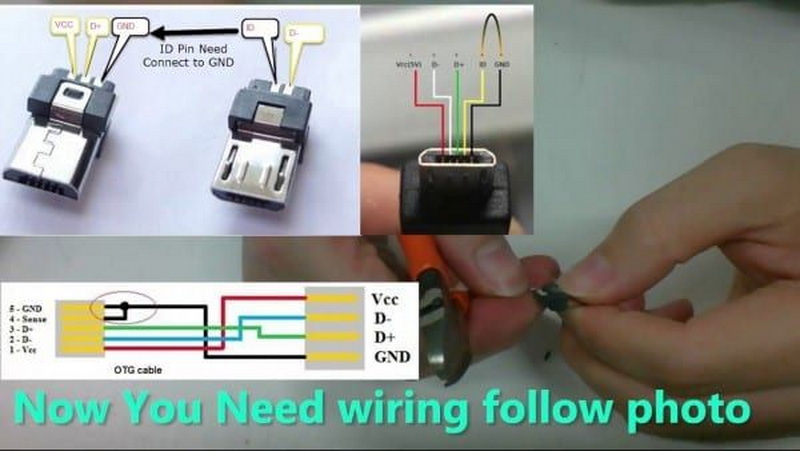

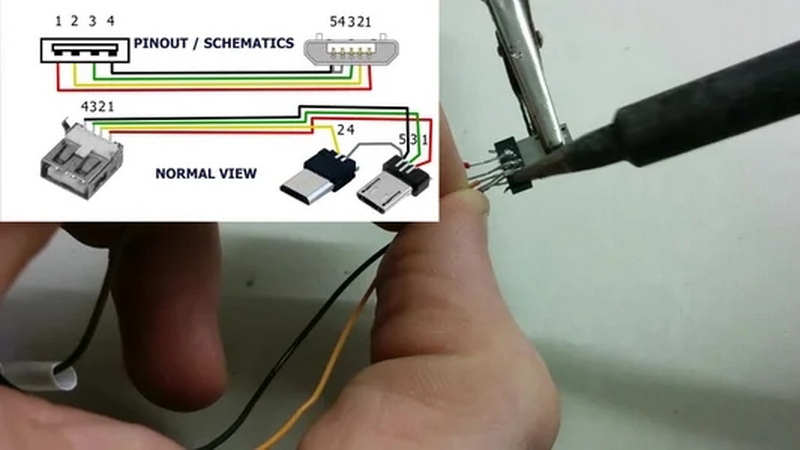

Step 3: Solder Pins 4 and 5 Together
1. Use a soldering iron to bridge pins 4 and 5 inside the micro-USB connector.
2. Ensure no other pins are accidentally soldered together, as this can cause short circuits.

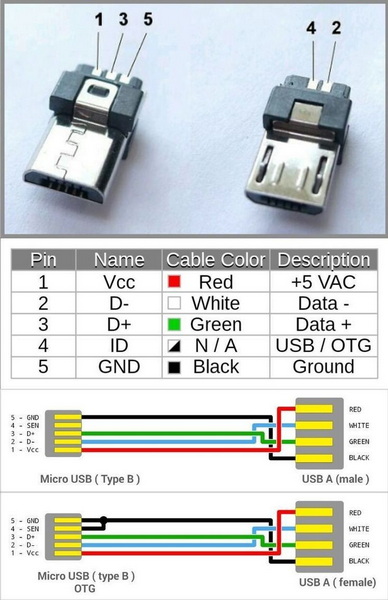

Step 4: Connect the USB Female Port
1. Match the color-coded wires from the micro-USB cable to those on the USB female port:
- Red: Power (+5V)
- Black: Ground
- White: Data (-)
- Green: Data (+)
2. Solder each wire carefully to its corresponding pin on the USB female port. Make sure the connections are secure and not touching other pins.
Step 5: Insulate and Secure Connections
1. Use electrical tape or heat shrink tubing to insulate each soldered joint.
2. Apply hot glue around the connections for added durability and protection against moisture.
Step 6: Test Your Cable
1. Plug one end into your smartphone and connect a peripheral device (e.g., a keyboard).
2. Check if your phone recognizes the device. If it does, your OTG cable is working correctly.
Tips for Testing and Troubleshooting
- Device Compatibility: Ensure your smartphone supports OTG functionality. Not all devices do, so check your device specifications or test with a pre-made OTG cable.
- Connection Issues: If your device doesn't recognize peripherals, double-check all soldered connections for any signs of damage or short circuits.
- Power Limitations: Be aware that OTG cables can only supply a limited amount of power. Avoid connecting devices that require too much power, as this can drain your phone's battery quickly or cause damage.
Advanced Modifications and Applications
Using OTG with Other Devices
While OTG is commonly used with Android devices, some tablets and smartphones from other manufacturers may also support this technology. Always check compatibility before attempting to use an OTG cable.

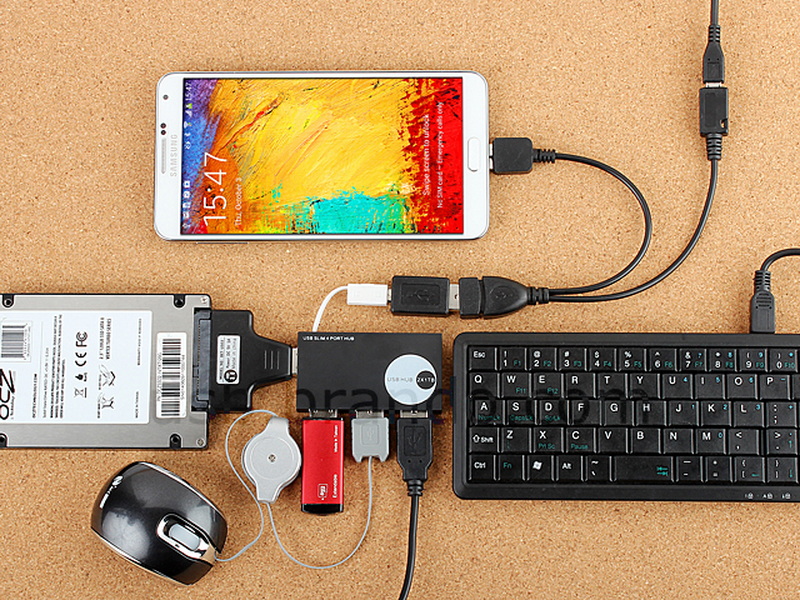

Creating a USB Hub
You can further enhance your OTG setup by creating a simple USB hub. This involves connecting multiple USB devices to a single OTG cable using a USB hub. However, ensure that your device can handle the power requirements of multiple peripherals.
OTG in Gaming
OTG cables are particularly useful for gamers who want to connect game controllers or keyboards to their devices for a more immersive experience. This setup can significantly improve gameplay, especially in strategy or action games.
OTG for Data Transfer
OTG cables are also useful for transferring data between devices. You can connect a USB flash drive to your smartphone and transfer files easily without needing a computer.
Common Issues and Solutions
1. Device Not Recognized
- Solution: Check if your device supports OTG. Ensure all connections are secure and not damaged.
2. Power Issues
- Solution: Avoid using devices that require too much power. Use a powered USB hub if necessary.
3. Soldering Mistakes
- Solution: Use a soldering iron carefully to avoid short circuits. Inspect your work under a magnifying glass if possible.
4. Cable Damage
- Solution: Inspect the cable for any signs of physical damage. Replace the cable if necessary.
5. OTG Cable Not Working
- Solution: Recheck all connections and ensure pins 4 and 5 are correctly soldered together.
Conclusion
Making a Micro USB OTG cable is an excellent way to repurpose old cables while gaining a functional tool for your devices. By following this guide, you can create your own OTG cable in under an hour with minimal costs. This project not only enhances your device's capabilities but also teaches you valuable DIY skills.
FAQs
Q1: What devices are compatible with OTG cables?
Most Android smartphones and tablets support OTG functionality. Check your device specifications or test with a pre-made OTG cable.
Q2: Can I use this cable for charging?
No, an OTG cable is designed for data transfer and connecting peripherals, not for charging devices.
Q3: Do I need special tools for this project?
A soldering iron is essential for this project, but other tools like wire strippers and hot glue guns can make the process easier.
Q4: Is it safe to make my own OTG cable?
Yes, as long as you follow proper safety precautions when soldering and ensure all connections are insulated.
Q5: How can I test if my cable works?
Connect your DIY OTG cable to your smartphone and plug in an external device like a flash drive or keyboard. If recognized, your cable works correctly.
