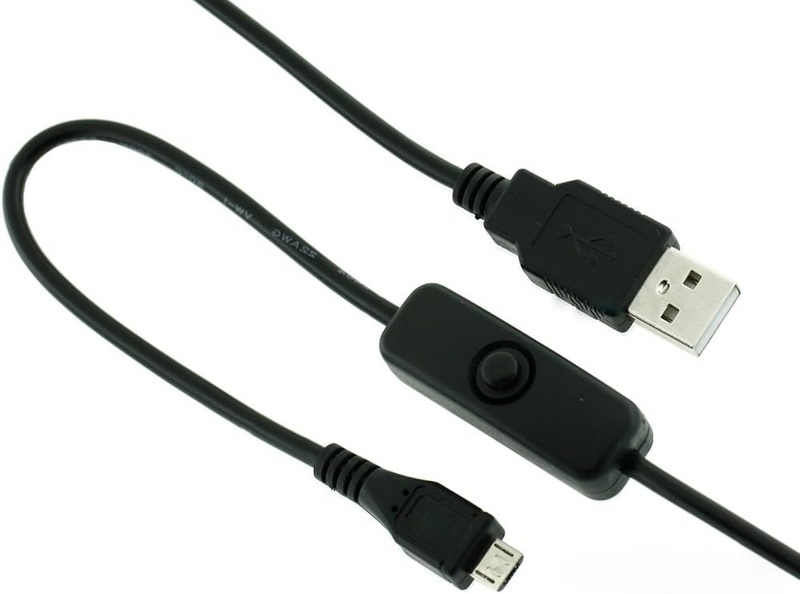

In today's digital age, USB cables have become an essential part of our daily lives. They are used for charging devices, transferring data, and connecting various electronic gadgets. While you can easily purchase USB cables from stores, making your own custom micro USB cable can be a rewarding and cost-effective project. This guide will walk you through the process of creating your own micro USB cable, providing detailed instructions, tips, and insights.
Understanding USB Cables
Before we dive into the cable-making process, it's important to understand the basics of USB cables. A typical USB cable consists of four main components:
1. The USB connector (Type-A, micro-B, or Type-C)
2. The cable itself (usually containing four wires)
3. Insulation and shielding
4. The outer jacket or sleeve

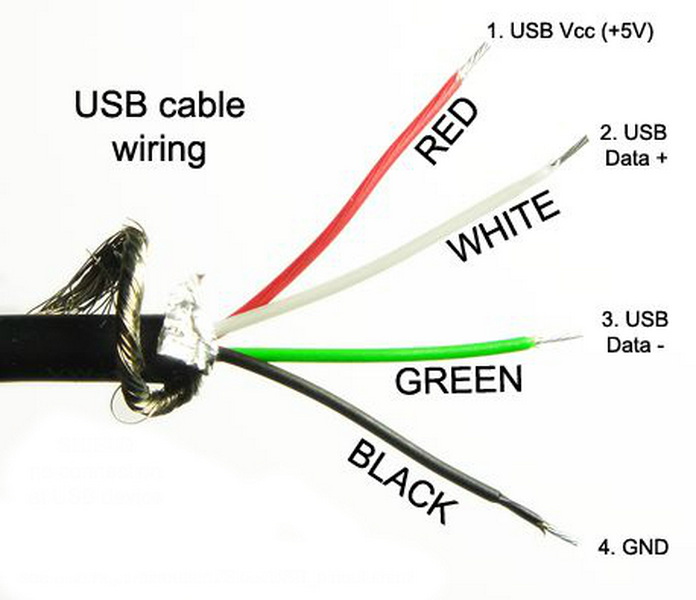

The four wires inside the cable are color-coded and serve specific functions:
- Red: +5V (power)
- White: Data- (negative data line)
- Green: Data+ (positive data line)
- Black: Ground
Understanding these components and their roles is crucial for creating a functional and reliable cable.
Materials Needed
To create your own micro USB cable, you'll need the following materials:
- USB Type-A male connector
- Micro-B male connector
- UL2464 26AWG 4-core cable (or similar)
- Paracord (Type III - 550lbs)
- PET sleeve (4mm)
- Heat shrink tubing (8mm and 12mm)
- Soldering iron and solder
- Wire strippers
- Scissors
- Hobby knife
- Multimeter (for testing)
Choosing the right materials is important for ensuring the quality and durability of your cable. For example, using a high-quality cable like UL2464 ensures that your cable can handle the required current for charging devices efficiently.
Step-by-Step Guide
1. Prepare the Cable
Start by cutting your UL2464 cable to the desired length. Remember to add a few extra inches to account for the connectors and any mistakes.
Next, slide the paracord sleeve over the cable. This step can be tricky, so take your time and be patient. You may need to use a wire or thin rod to help guide the cable through the paracord.
Once the paracord is in place, slide the PET sleeve over the paracord. This adds an extra layer of protection and gives the cable a more professional look.
2. Strip the Cable
Using wire strippers or a hobby knife, carefully strip about 1 inch of the outer jacket from both ends of the cable. Be careful not to damage the inner wires.
Next, strip about 2-3mm of insulation from each of the four inner wires.
3. Prepare the Connectors
For the USB Type-A connector:
1. Open the connector housing.
2. Identify the four pins inside the connector.
3. Tin the pins with a small amount of solder.
For the micro-B connector:
1. If it came with a plastic housing, remove it carefully.

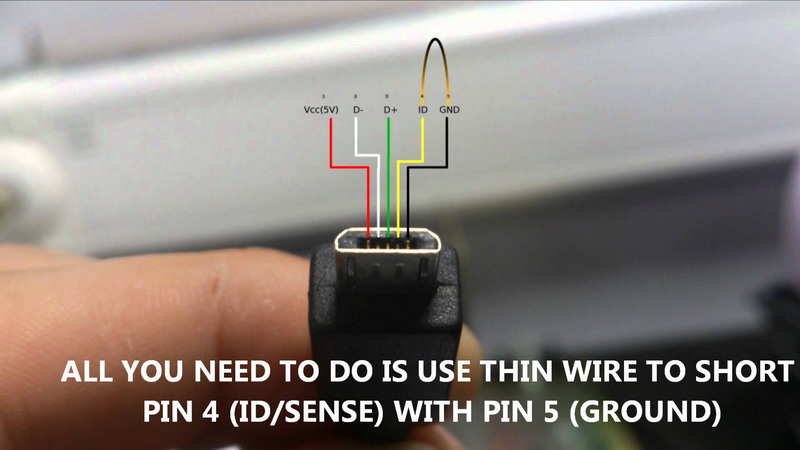

2. Identify the five pins on the connector (micro-B has an extra pin for ID).
3. Tin the pins with a small amount of solder.
4. Solder the Wires
For the USB Type-A end:
1. Solder the red wire to pin 1 (VBUS)
2. Solder the white wire to pin 2 (D-)
3. Solder the green wire to pin 3 (D+)
4. Solder the black wire to pin 4 (GND)
For the micro-B end:
1. Solder the red wire to pin 1 (VBUS)
2. Solder the white wire to pin 2 (D-)
3. Solder the green wire to pin 3 (D+)
4. Solder the black wire to pin 5 (GND)
5. Leave pin 4 (ID) unconnected
Ensure that your solder joints are clean and secure. Avoid creating solder bridges between pins.
5. Test the Cable
Before proceeding, use a multimeter to test the continuity between the corresponding pins on both ends of the cable. This will help you identify any potential short circuits or faulty connections.
6. Assemble the Connectors
For the USB Type-A connector:
1. Carefully place the soldered wires into the connector housing.
2. Ensure that the wires are not touching each other.
3. Close the housing, making sure it snaps securely into place.
For the micro-B connector:
1. If your connector came with a plastic housing, carefully place it over the soldered connections.
2. Use a small amount of hot glue or epoxy to secure the housing and provide strain relief.
7. Add Heat Shrink Tubing
Cut two pieces of heat shrink tubing, one for each end of the cable. The tubing should be long enough to cover the soldered connections and part of the cable jacket.
Slide the heat shrink tubing over each end of the cable and use a heat gun or lighter to shrink it into place. Be careful not to overheat the tubing or the cable.
8. Final Touches

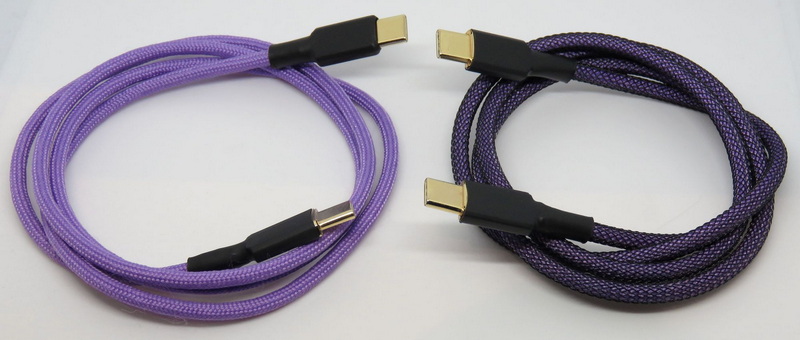

Trim any excess paracord or PET sleeve from the ends of the cable. You can use a lighter to carefully melt the ends of the paracord to prevent fraying.
Tips for Success
1. Take your time and be patient, especially when soldering. Rushed work often leads to mistakes.
2. Use flux when soldering to ensure clean, strong connections.
3. Double-check your wire connections before closing up the connectors.
4. If possible, use a USB tester to verify that your cable is functioning correctly before using it with your devices.
Customization Options
One of the benefits of making your own USB cable is the ability to customize it to your liking. Here are some ideas:
- Choose colorful paracord for a unique look
- Add a coil to your cable for a retro aesthetic
- Use different colors of heat shrink tubing for accent
- Experiment with various lengths to suit your specific needs
Customization not only adds a personal touch but also allows you to tailor your cable for specific applications. For example, using a longer cable can be beneficial for charging devices from a distance.
Troubleshooting Common Issues
During the process, you might encounter some common issues. Here are a few troubleshooting tips:
- Short Circuits: Check for solder bridges or wires touching each other. Use a multimeter to identify any short circuits.
- No Power: Ensure that the red wire is properly connected to the VBUS pin on both connectors.
- Data Transfer Issues: Verify that the data wires (white and green) are securely connected to their respective pins.
Safety Considerations
Safety is paramount when working with electrical components. Always ensure that your workspace is well-ventilated, and avoid touching electrical components with wet hands. Use protective gear like safety glasses and gloves if necessary.
Conclusion
Creating your own micro USB cable is a rewarding project that allows you to customize your tech accessories while gaining valuable skills. With patience and attention to detail, you can produce a high-quality cable that meets your specific needs and reflects your personal style. Remember to always prioritize safety and test your cable thoroughly before use.
FAQ
1. Is it safe to make my own USB cable?
Yes, it is safe to make your own USB cable if you follow proper procedures and use quality materials. Always test your cable before using it with valuable devices.
2. Can I use this method to make other types of USB cables?
Yes, you can adapt this method to create various USB cables, including USB-C and Lightning cables. However, you may need different connectors and pinouts.
3. How long does it take to make a custom USB cable?
For beginners, the process might take 1-2 hours. With practice, you can complete a cable in 30-45 minutes.
4. What tools are essential for making USB cables?
The most essential tools are a soldering iron, wire strippers, and a multimeter for testing. A helping hand tool can also be very useful.
5. How can I ensure my homemade cable is durable?
Use quality materials, make strong solder joints, and add strain relief at the connectors. Proper use of heat shrink tubing and paracord can also increase durability.
