Creating a custom USB cable is a rewarding DIY project that allows you to tailor the cable's length, design, and functionality to your specific needs. Whether you want a cable for your mechanical keyboard, desktop setup, or other devices, this guide will walk you through the process step by step.
Introduction
Custom USB cables are not just functional but can also be styled to match your aesthetic preferences. This guide covers everything from gathering materials to assembling and testing your cable. Alongside textual instructions, detailed descriptions are provided to make the process easier to follow.
Materials Needed
To build your own USB cable, gather the following materials:
- USB Connectors: USB-A, USB-C, or Micro-USB connectors depending on your project.
- Cable: 26AWG 4-core wire (UL2464 recommended).
- Sleeving: PET sleeve or paracord for added durability and aesthetics.
- Heat Shrink Tubes: Various sizes (e.g., 8mm, 12mm).
- Soldering Iron and Solder: Essential for attaching wires to connectors.
- Wire Strippers: For cleanly stripping the cable insulation.
- Electrical Meter: To test connectivity and ensure proper wiring.
- Scissors or Razor Knife: For cutting materials.
- Optional: Cable Ties, Adhesives, and Cable Management Tools.
Step-by-Step Instructions
Step 1: Preparing the Cable
1. Decide on the length of your custom cable. Consider the distance between devices and any cable management needs.
2. Cut the cable to size using scissors or a razor knife. Ensure a clean cut to avoid fraying.
3. Strip about 1 inch of insulation from both ends of the cable using wire strippers. Be careful not to cut the wires.

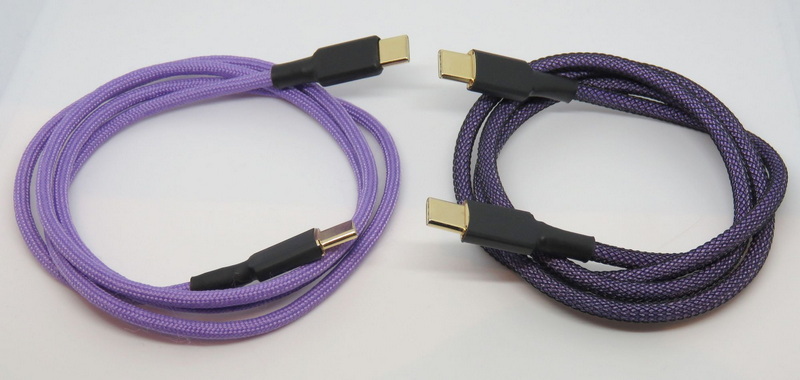

Step 2: Adding Sleeving
1. Slide a paracord sheath or PET sleeve over the cable for protection and aesthetics. This step can enhance durability and visual appeal.
2. Ensure the sleeving fits snugly around the cable. If using paracord, you may need to stretch it slightly to fit.
Step 3: Soldering Connectors
1. Warm up your soldering iron. It should reach a temperature of about 350°C to 400°C.
2. Tin the exposed wires by applying solder to their tips. This helps ensure a smooth soldering process.

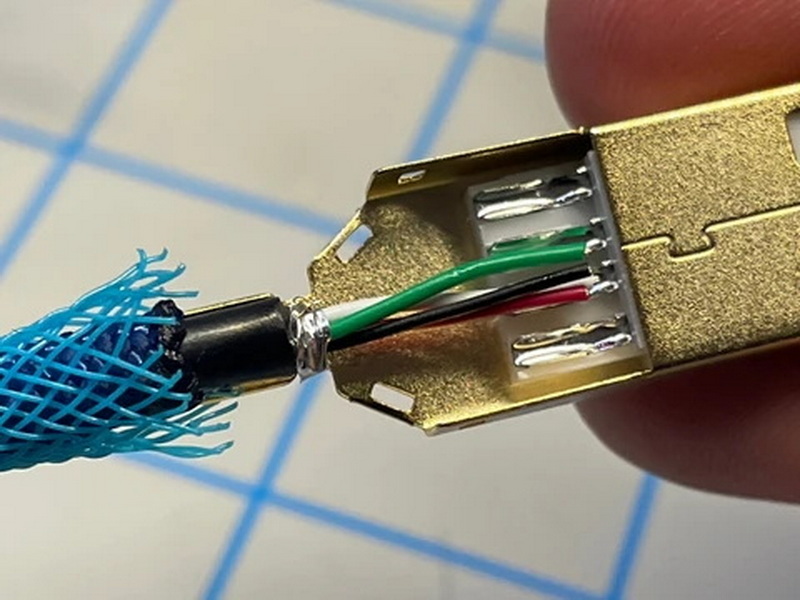

3. Solder each wire to its corresponding pin on the USB connector:
- Red wire (VCC) connects to power.
- Black wire (Ground) connects to ground.
- Green and white wires handle data transfer (D+ and D-).
Step 4: Securing with Heat Shrink
1. Slide heat shrink tubing over each soldered connection.
2. Use a heat gun or lighter to shrink the tubing tightly around the wires. Ensure it's snug but not too tight.
Step 5: Testing Connectivity
1. Use an electrical meter to check for continuity between pins and wires. This ensures that each wire is properly connected.
2. Plug in the cable to ensure it functions properly. Test both data transfer and power delivery.

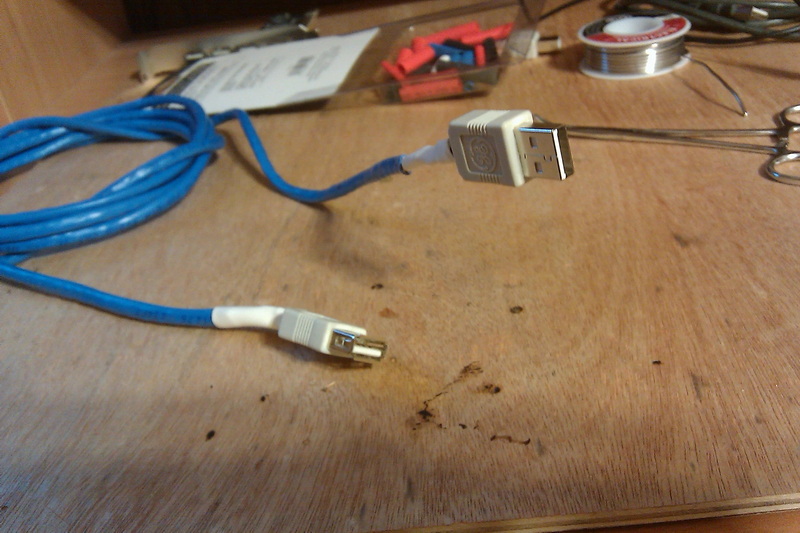

Step 6: Final Assembly
1. Attach metal shells or plastic housing over connectors for a polished finish.
2. Secure everything with adhesive if necessary. This helps prevent the housing from coming loose over time.
Advanced Techniques
Coiled Cables
Creating coiled cables adds an extra layer of customization and can be useful for managing cable length. To make a coiled cable:
1. Wrap the sleeved cable around a rod or cylindrical object to create coils.
2. Use heat to set the coils in place. You can use a heat gun or place the cable in boiling water for a few minutes.
3. Once set, remove the cable from the rod and trim any excess sleeving.
Braided Cables
Braiding cables can enhance aesthetics and durability. To braid:
1. Split the sleeved cable into three sections.
2. Begin a braid by crossing one section over another, then the third over the first.
3. Continue braiding until you reach the desired length.
4. Secure the braid with cable ties or heat shrink tubing.
Cable Management
Proper cable management is crucial for maintaining a clean workspace. Use cable ties, zip ties, or cable organizers to keep your custom cables tidy.
Troubleshooting Common Issues
- No Power or Data Transfer: Check solder connections and ensure proper wire alignment.
- Intermittent Connectivity: Inspect for loose connections or damaged wires.
- Overheating: Verify that the cable is not pinched or damaged, which can cause resistance and heat buildup.
Safety Precautions
- Always use protective gear like gloves and safety glasses when soldering.
- Ensure your workspace is well-ventilated to avoid inhaling solder fumes.
- Keep the soldering iron away from flammable materials.
Conclusion
Building a custom USB cable is an engaging project that combines creativity with technical skills. By following this guide, you can create a personalized cable that meets your needs while enhancing your workspace aesthetics. Whether you're looking for a stylish addition to your gaming setup or a durable cable for outdoor use, customizing your USB cables can be both fun and rewarding.
FAQs
1. What tools do I need for making a custom USB cable?
You'll need soldering equipment, wire strippers, heat shrink tubing, sleeving material, and an electrical meter for testing.
2. Can I use any type of sleeving for my cable?
Yes, but ensure the sleeving fits snugly around your chosen cable diameter. Popular options include PET sleeves and paracord.
3. How do I test if my custom USB cable works?
Use an electrical meter to check continuity between pins and wires. Then plug it into a device to verify functionality.
4. Is soldering mandatory for building a custom USB cable?
Yes, soldering ensures secure connections between wires and connector pins.
5. Can I make coiled USB cables at home?
Absolutely! Coiling requires additional steps like wrapping the sleeved cable around a rod and heating it to retain its shape.
