How To Make A Custom USB-C Cable for Mechanical Keyboards?

Views: 222 Author: Tina Publish Time: 2025-03-17 Origin: Site

Inquire

Content Menu

● Introduction to USB-C Cables

>> Features of USB-C Cables

● Materials Needed

● Step-by-Step Guide to Making a USB-C Cable

>> Step 1: Prepare the Cable

>> Step 2: Strip the Wires

>> Step 3: Connect the Wires to the USB-C Connector

>> Step 4: Apply Heat Shrink Tubing

>> Step 5: Add Cable Sleeving (Optional)

● Common Issues and Solutions

● Tips for Quality and Safety

● Advanced Customizations

● Troubleshooting Common Problems

● Conclusion

● Frequently Asked Questions

>> 1. What is the difference between USB Type-A and USB Type-C?

>> 2. How do I choose the right USB-C cable for my device?

>> 3. Can I use any USB-C cable for fast charging?

>> 4. How do I ensure my homemade USB-C cable is safe to use?

>> 5. Can I make a USB-C cable from an old USB-A cable?

USB-C cables have become increasingly popular due to their versatility and high-speed data transfer capabilities. They offer a reversible design, making them easier to use than traditional USB connectors. In this guide, we will walk you through the process of creating a USB-C cable, including the necessary materials, steps, and tips for ensuring quality and safety.

how to make a usb-c cable_1

Introduction to USB-C Cables

USB-C cables are designed to support multiple protocols, including USB 2.0, USB 3.0, USB 3.1, USB 4, Thunderbolt, DisplayPort, HDMI, and Power Delivery (PD). This universal compatibility allows USB-C cables to work with a wide range of devices, from smartphones and tablets to laptops and gaming consoles.

Features of USB-C Cables

- Reversible Design: Unlike older USB connectors, USB-C cables can be plugged in either direction, simplifying device connections.

- High Data Transfer Speeds: Depending on the version, USB-C cables can offer speeds up to 40 Gbps with USB 4.

- Fast Charging: USB-C supports Power Delivery (PD), enabling faster charging for compatible devices.

Materials Needed

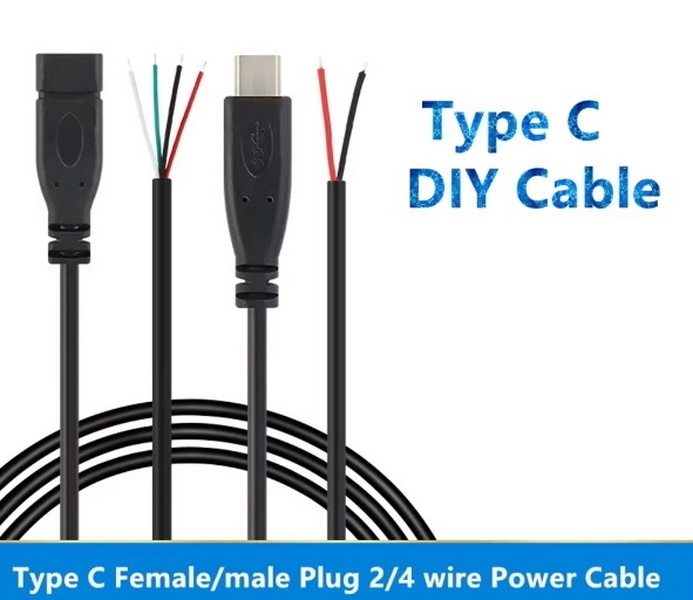

To make a USB-C cable, you will need the following materials:

- USB-C Connectors: These are available in various types, including metal shells for aesthetic appeal.

- USB-C Cable: You can use a pre-made cable or create your own using wire and insulation.

- Wire Stripper: For stripping the insulation from the wires.

- Soldering Iron and Solder: For connecting the wires to the connector.

- Heat Shrink Tubing: For protecting the soldered connections.

- Paracord or Techflex: Optional for cable sleeving.

how to make a usb-c cable_4

Step-by-Step Guide to Making a USB-C Cable

Step 1: Prepare the Cable

If using a pre-made cable, ensure it is compatible with USB-C standards. If creating your own, use wires that match the USB-C wiring diagram. The diagram typically includes 24 pins, with specific assignments for power, data, and other functions.

Step 2: Strip the Wires

Use a wire stripper to remove the insulation from the ends of the wires. This step requires precision to avoid damaging the wires. Ensure that the stripper is set to the correct gauge for your wires.

Step 3: Connect the Wires to the USB-C Connector

Refer to the USB-C wiring diagram to ensure correct pin connections. Use a soldering iron to secure the wires to the connector. It's crucial to solder each wire carefully to prevent short circuits.

Step 4: Apply Heat Shrink Tubing

Cover the soldered connections with heat shrink tubing to protect them from damage. This step is essential for maintaining the integrity of the connections over time.

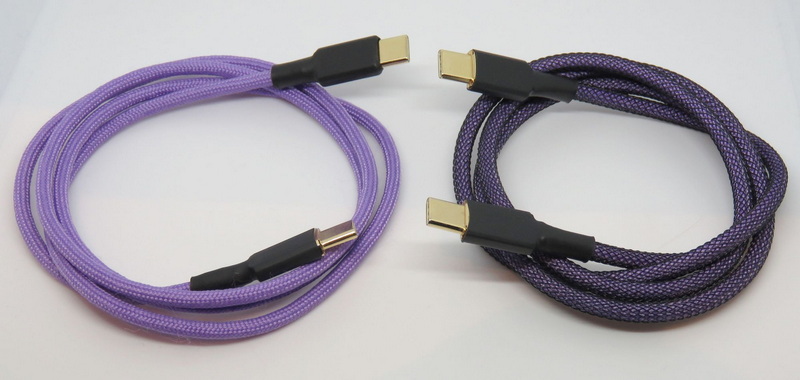

Step 5: Add Cable Sleeving (Optional)

Use paracord or Techflex to sleeve the cable for a more professional look. Cable sleeving not only enhances aesthetics but also provides additional protection against wear and tear.

Common Issues and Solutions

When making a USB-C cable, common issues include incorrect wiring, poor soldering, and inadequate insulation. Ensure that all connections are secure and insulated properly to prevent electrical issues. Incorrect wiring can lead to malfunctioning or even damage to connected devices.

how to make a usb-c cable_3

Tips for Quality and Safety

- Use High-Quality Materials: Ensure that all components, including the USB-C connectors and wires, are of high quality to maintain reliability and safety.

- Follow Proper Soldering Techniques: Use a well-ventilated area and avoid overheating the solder to prevent damage to the components.

- Test the Cable: Before using the cable extensively, test it with a device to ensure it functions correctly.

Advanced Customizations

For those looking to further customize their USB-C cables, consider adding features like custom lengths, colors, or even integrating additional functionalities such as Ethernet or audio transmission. These customizations can enhance the usability and versatility of the cable.

Troubleshooting Common Problems

If your homemade USB-C cable does not work as expected, check for common issues such as loose connections, incorrect wiring, or insufficient insulation. Use a multimeter to verify continuity and ensure that there are no short circuits.

Conclusion

Making a USB-C cable can be a rewarding DIY project, offering customization and cost savings. However, it requires attention to detail and adherence to safety guidelines. By following this guide and understanding the features and capabilities of USB-C cables, you can create a reliable and efficient connection solution for your devices.

how to make a usb-c cable_2

Frequently Asked Questions

1. What is the difference between USB Type-A and USB Type-C?

USB Type-A is the traditional connector used on most devices, while USB Type-C is newer, reversible, and supports higher data transfer speeds and power delivery.

2. How do I choose the right USB-C cable for my device?

Ensure the cable supports the necessary protocols (e.g., USB 3.1, Thunderbolt) and power delivery requirements for your device.

3. Can I use any USB-C cable for fast charging?

Not all USB-C cables support fast charging. Look for cables specifically designed for Power Delivery (PD) to ensure compatibility.

4. How do I ensure my homemade USB-C cable is safe to use?

Always follow proper soldering techniques and use appropriate insulation to prevent electrical hazards.

5. Can I make a USB-C cable from an old USB-A cable?

Yes, you can repurpose an old USB-A cable by connecting it to a USB-C adapter or connector, but ensure compatibility with your device's requirements.
