Introduction
In today's interconnected world, the need for various cable types and adapters is ever-present. One such connection that often comes up is the BNC to USB cable. This article will guide you through the process of making your own BNC to USB cable, exploring the components, tools, and steps required. We'll also delve into the applications, benefits, and potential challenges of creating this custom cable.
Understanding BNC and USB Connectors
BNC Connectors
BNC (Bayonet Neill-Concelman) connectors are widely used in radio frequency (RF) applications, video equipment, and test instruments. They are known for their quick-connect/disconnect mechanism and reliable performance in high-frequency applications.
USB Connectors
USB (Universal Serial Bus) connectors are ubiquitous in modern electronics, providing a standardized interface for data transfer and power delivery. There are several types of USB connectors, including USB-A, USB-B, USB-C, and various mini and micro versions.
Components Needed
To create a BNC to USB cable, you'll need the following components:
1. BNC connector (male)
2. USB connector (type depends on your specific needs)
3. Coaxial cable (RG-58 or RG-59)
4. USB cable
5. Heat shrink tubing
6. Solder and soldering iron
7. Wire strippers
8. Crimping tool (if using crimp-style BNC connectors)
9. Multimeter for testing
Step-by-Step Guide to Making a BNC to USB Cable
Step 1: Prepare the Cables
Start by cutting your coaxial and USB cables to the desired length. Strip the outer insulation from both ends of each cable, exposing about 1 inch (2.5 cm) of the inner conductors.
Step 2: Attach the BNC Connector
For a crimp-style BNC connector:
1. Slide the crimp sleeve onto the coaxial cable.
2. Strip the inner conductor and fold back the braided shield.
3. Insert the cable into the BNC connector.
4. Crimp the connector using the appropriate crimping tool.
For a solder-style BNC connector:
1. Tin the inner conductor of the coaxial cable.
2. Solder the inner conductor to the center pin of the BNC connector.
3. Solder the braided shield to the outer shell of the connector.
Step 3: Prepare the USB End
Identify the wires in your USB cable. Typically, you'll find four wires:
- Red: +5V (power)
- White: Data -
- Green: Data +
- Black: Ground
Strip the ends of these wires and tin them with solder.
Step 4: Connect the USB and Coaxial Cables
Now, you'll need to connect the appropriate wires from the USB cable to the coaxial cable:
1. Solder the USB ground (black) wire to the coaxial cable's shield.
2. Solder the USB data wires (white and green) to the coaxial cable's center conductor.
Note: The +5V (red) wire from the USB cable is typically not used in this application unless you're incorporating additional circuitry.
Step 5: Insulate the Connections
Use heat shrink tubing to insulate and protect the soldered connections. Slide the tubing over the connections and apply heat using a heat gun or lighter to shrink it into place.
Step 6: Attach the USB Connector
Solder the USB wires to the appropriate pins on your chosen USB connector. Refer to the pinout diagram for your specific USB connector type to ensure correct connections.
Step 7: Test the Cable
Use a multimeter to test for continuity between the BNC connector and the USB connector. Ensure there are no short circuits and that the connections are solid.
Step 8: Final Assembly
If everything tests correctly, use heat shrink tubing or electrical tape to provide additional insulation and strain relief at both ends of the cable.
Applications of BNC to USB Cables
BNC to USB cables have various applications across different industries:
1. Test and Measurement: Connect oscilloscopes or signal generators to computers for data acquisition and analysis.
2. Video Production: Interface older BNC-equipped video cameras or monitors with modern computers for capture or display.
3. Amateur Radio: Connect radio equipment to computers for digital modes or software-defined radio applications.
4. Industrial Automation: Interface legacy BNC-equipped sensors or control systems with modern USB-based computers or PLCs.

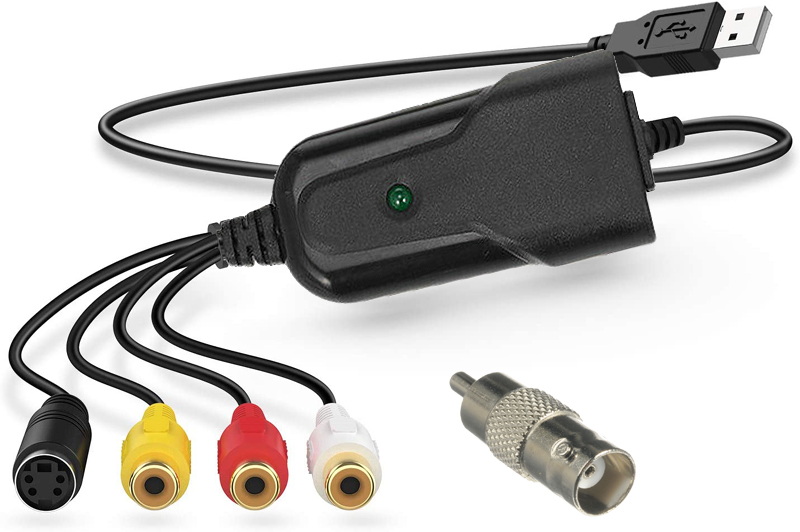

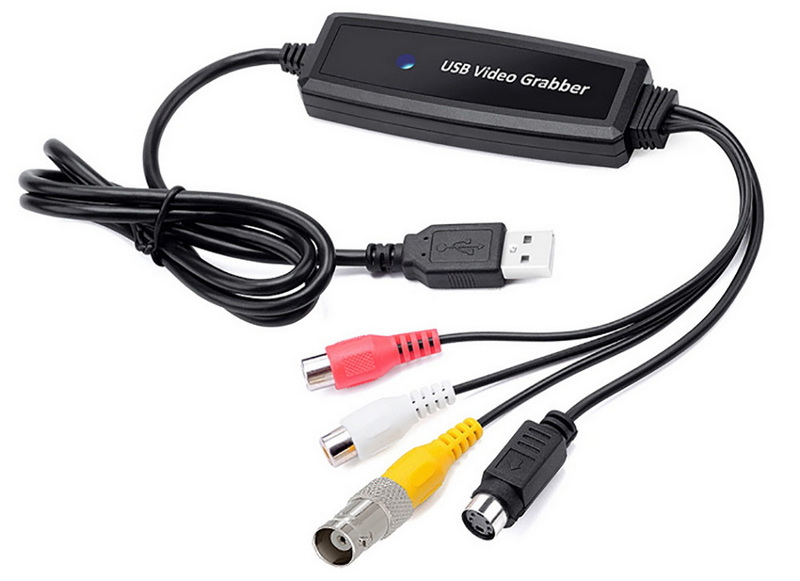

5. Security Systems: Connect BNC-based CCTV cameras to USB capture devices for modern digital video recording systems.
Benefits of Making Your Own BNC to USB Cable
1. Customization: Create cables of exact length and specifications for your specific needs.
2. Cost-Effective: Often cheaper than purchasing pre-made specialty cables.
3. Learning Experience: Gain hands-on knowledge about cable construction and electronics.
4. Quality Control: Ensure high-quality connections by using premium components and careful assembly.
5. Repair and Maintenance: Develop skills to repair or modify existing cables in the future.
Potential Challenges and Considerations
1. Signal Integrity: Improper construction can lead to signal degradation, especially at high frequencies.
2. Impedance Matching: Ensure the impedance of your cable matches the requirements of your equipment (typically 50 or 75 ohms for BNC).
3. Shielding: Proper shielding is crucial to prevent electromagnetic interference.
4. USB Protocol Compatibility: Be aware that not all USB devices support direct connection to BNC equipment without additional interface circuitry.
5. Safety Considerations: Ensure proper insulation and grounding to prevent electrical hazards.
Conclusion
Creating a BNC to USB cable can be a rewarding project that provides a custom solution for various applications. By following the steps outlined in this guide and considering the potential challenges, you can successfully construct a cable that meets your specific needs. Remember to prioritize safety and signal integrity throughout the process.
Frequently Asked Questions (FAQ)
1. What is the maximum length for a BNC to USB cable?
The maximum effective length of a BNC to USB cable depends on several factors, including the quality of the cable, the signal frequency, and the specific application. Generally, for high-frequency applications, it's best to keep the cable as short as possible to minimize signal loss. For most applications, a length of up to 3 meters (10 feet) should work well. However, for lower frequency or DC applications, longer cables may be feasible.
2. Can I use a BNC to USB cable for audio applications?
While it's possible to use a BNC to USB cable for audio applications, it's not the most common or optimal solution. BNC connectors are typically used for video or RF applications, while audio often uses different connector types like XLR or RCA. If you need to connect an audio device with a BNC output to a computer's USB port, you may need additional interface circuitry to properly convert the signal.
3. Do I need special drivers for my computer to recognize a BNC to USB cable?
In most cases, a simple BNC to USB cable won't require special drivers. However, the functionality of the cable depends on the devices you're connecting and their compatibility with USB standards. If you're using the cable with specific test equipment or specialized hardware, you may need to install drivers or software provided by the manufacturer to ensure proper communication between the devices.
4. How can I test the quality of my homemade BNC to USB cable?
To test the quality of your homemade BNC to USB cable, you can follow these steps:
1. Use a multimeter to check for continuity and ensure there are no short circuits.
2. If possible, use a signal generator and oscilloscope to test signal integrity at various frequencies.
3. Compare the performance of your cable with a known good commercial cable in your specific application.
4. For more advanced testing, you may need specialized equipment like a network analyzer to measure parameters such as impedance and return loss.
5. Can I use a BNC to USB cable for Ethernet connections?
While BNC connectors were once used for Ethernet in 10BASE2 networks, modern Ethernet typically uses RJ45 connectors. A simple BNC to USB cable won't work for Ethernet connections. If you need to connect a device with a BNC Ethernet port to a modern USB port, you'll need a specialized adapter that includes the necessary circuitry to convert between the two standards. These adapters are available commercially but are not typically DIY projects.
