USB cables are ubiquitous in modern technology, connecting devices to power sources and data transfer points. However, sometimes it becomes necessary to join or modify these cables to suit specific needs. This article will guide you through the process of joining USB cable wires, including the necessary tools, steps, and precautions.
Introduction to USB Cables

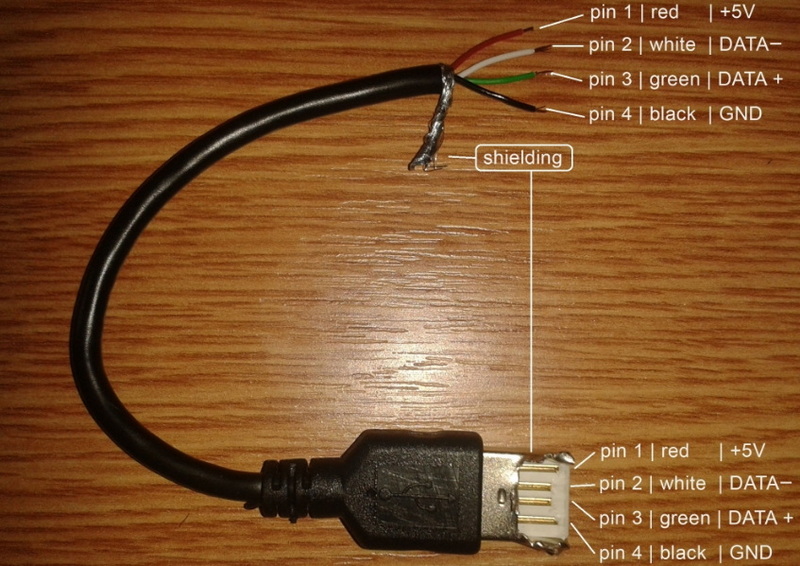

USB cables typically consist of four wires: red for power (+5V), black for ground, white for data-, and green for data+. Understanding the function of each wire is crucial for successful modifications.
Understanding USB Cable Components
- Red Wire: Provides the positive voltage, typically +5V.
- Black Wire: Ground connection.
- White and Green Wires: Data transmission lines.
Tools Needed
To join USB cable wires, you will need:
- Wire Cutters: For cutting the cable.
- Wire Strippers: To remove insulation from the wires.
- Soldering Iron and Solder: For connecting wires.
- Heat Shrink Tubing or Electrical Tape: For insulation.
Step-by-Step Guide to Joining USB Cable Wires
Step 1: Strip the Insulation
Use wire strippers to remove the insulation from the ends of the wires you want to join. Be careful not to damage the wires. The length of insulation you remove should be just enough to expose the wire for soldering.
Step 2: Prepare the Wires

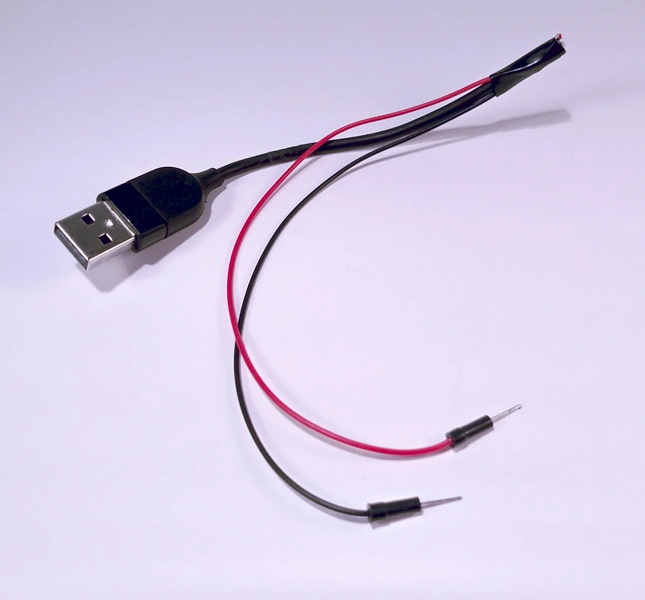

Identify the wires you want to connect. If you're only using the power wires (red and black), you can ignore the data wires (white and green). Ensure that the wires are clean and free of debris.
Step 3: Solder the Wires

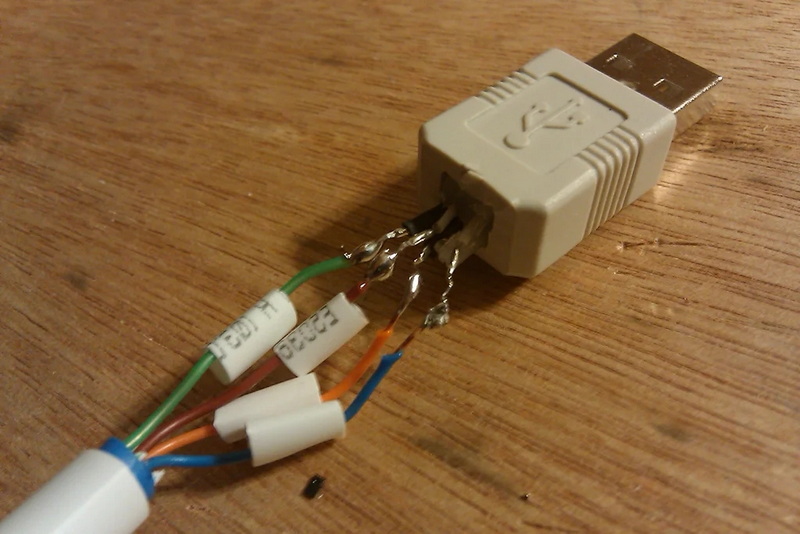

Use a soldering iron to connect the corresponding wires together. Ensure that the solder flows smoothly and covers the joint. It's important to keep the soldering iron at the right temperature to avoid overheating the wires.
Step 4: Insulate the Connections
Cover the soldered joints with heat shrink tubing or electrical tape to prevent short circuits. Heat shrink tubing provides a more durable and water-resistant seal compared to electrical tape.
Step 5: Test the Connection
Use a multimeter to check if the connection is secure and functioning correctly. This step is crucial to ensure that your modifications do not cause any electrical issues.
Common Applications
Joining USB cable wires can be useful in various projects, such as creating custom power cables or repairing damaged cables. For instance, if you need to extend a USB cable, you can join two cables together. Additionally, if a USB cable is damaged near the connector, you might need to cut off the damaged part and join the remaining cable to a new connector.
Safety Precautions
When working with electrical components, safety should always be your top priority. Ensure that you are in a well-ventilated area, and avoid touching electrical components with your bare hands. Always unplug the cable from any power source before starting work.
Troubleshooting Common Issues
Sometimes, after joining USB cable wires, you might encounter issues such as poor connectivity or no power delivery. Here are some common problems and their solutions:
- Poor Connectivity: Check if the solder joints are secure and properly insulated. Ensure that the data wires are not damaged or twisted.
- No Power Delivery: Verify that the power wires (red and black) are correctly connected and not short-circuited.
Advanced Techniques

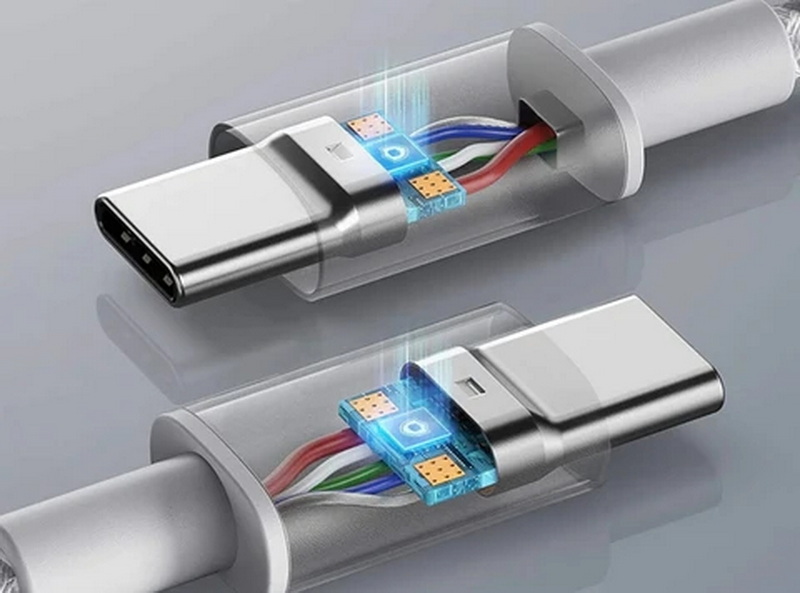

For more complex projects, you might need to use additional tools or techniques. For example, if you're working with USB-C cables, which have more complex wiring, you'll need to ensure that you correctly identify and connect all the necessary wires.
Choosing the Right Materials
The quality of your materials can significantly impact the success of your project. Use high-quality solder that is suitable for electrical connections, and ensure that your heat shrink tubing is the correct size for your wires.
Environmental Considerations
When disposing of old or damaged cables, consider recycling them to reduce electronic waste. Many communities have programs for recycling electronic components.
Conclusion
Joining USB cable wires requires attention to detail and the right tools. By following the steps outlined in this guide, you can successfully modify or repair your USB cables for various applications. Always ensure that your connections are secure and insulated to prevent any potential hazards.
Frequently Asked Questions
Here are some common questions related to joining USB cable wires:
1. What are the risks of incorrectly joining USB cable wires?
Incorrectly joining USB cable wires can lead to short circuits, damage to devices, or even fires. It's crucial to ensure that the connections are secure and insulated properly.
2. How do I choose the right tools for joining USB cable wires?
Select tools that are suitable for the task, such as wire strippers that can handle the gauge of your wires and a soldering iron with temperature control.
3. Can I use any type of solder for joining USB cable wires?
No, you should use a solder that has a low melting point and is suitable for electrical connections. Typically, 60/40 tin-lead solder is recommended.
4. How do I ensure the connections are secure?
Use heat shrink tubing or electrical tape to cover the soldered joints. This prevents moisture from entering the connection and reduces the risk of short circuits.
5. Can I join USB cable wires without soldering?
While soldering is the most reliable method, you can use splice connectors for a solder-less connection. However, soldering provides a more durable and secure bond.
