Installing an ELM327 USB cable on a Windows system is a straightforward process that requires downloading and installing the correct drivers, connecting the device, and configuring it with OBD-II software. This guide will walk you through each step, providing detailed instructions and troubleshooting tips.

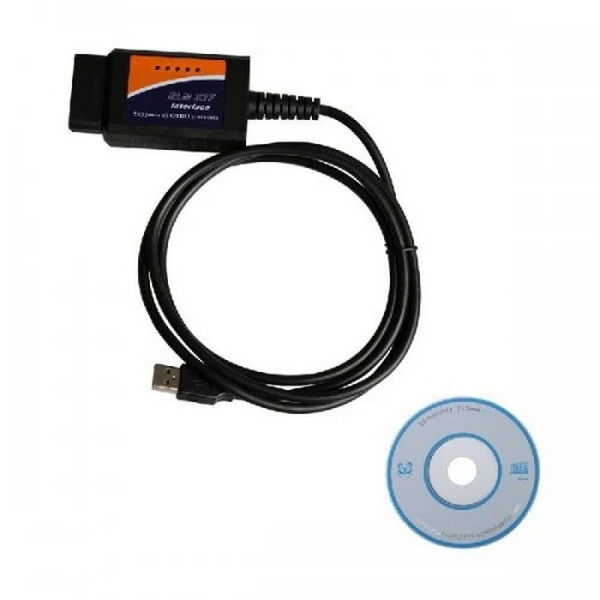

The ELM327 USB cable is a popular tool for diagnosing vehicle issues using the OBD-II (On-Board Diagnostics II) system. It connects to a vehicle's OBD-II port and communicates with a computer via a USB connection. The ELM327 chip inside the cable acts as an interpreter, converting the vehicle's data into a format that can be understood by the computer.

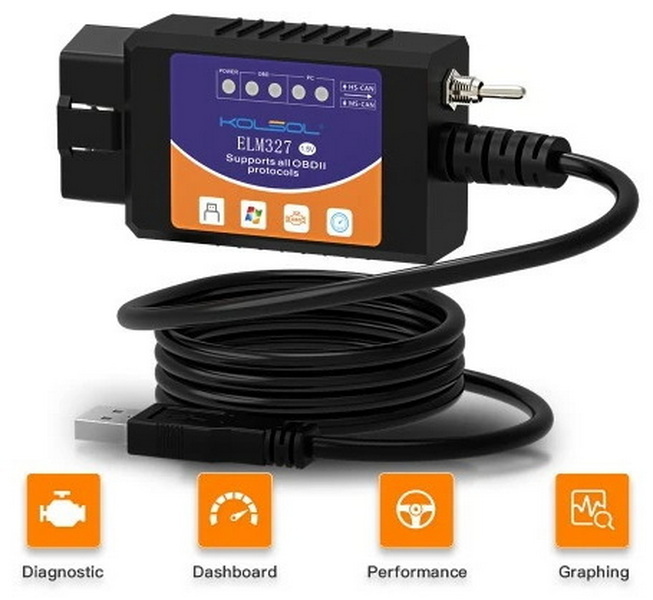

- ELM327 Chip: The core component that translates vehicle data.
- USB Connection: Connects to a computer for data transfer.

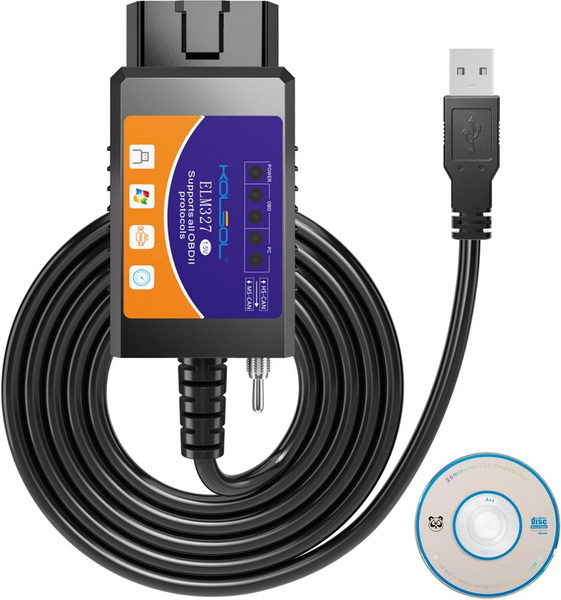

- OBD-II Connector: Plugs into the vehicle's OBD-II port.
Before connecting the ELM327 USB cable, you need to download and install the necessary drivers. These drivers ensure that your computer recognizes the device.
1. Visit the Driver Download Page: Go to a reliable source like Silicon Labs to download the USB to UART bridge VCP drivers.

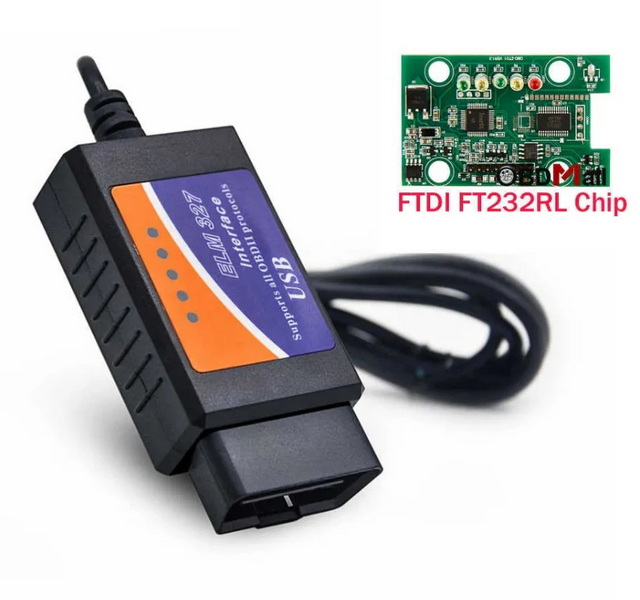

2. Choose the Correct Driver: Depending on your Windows version (32-bit or 64-bit), select the appropriate driver package. Common drivers include CP210x and PL2303.
3. Install the Drivers: Run the installer and follow the prompts. Ensure the cable is not connected during this process.
After installing the drivers, connect the ELM327 USB cable to your computer and vehicle.
1. Plug the USB End: Connect the USB end of the cable to your computer.
2. Connect to Vehicle: Insert the OBD-II connector into the vehicle's OBD-II port, usually located under the steering column.
3. Turn On Ignition: Switch the ignition to the "ON" position but do not start the engine.
To use the ELM327 USB cable, you need OBD-II software installed on your computer.
1. Download OBD-II Software: Popular options include ScanMaster and FORScan.
2. Install Software: Follow the installation instructions provided with the software.
3. Configure Software Settings: Open the software and set it to connect via USB. Identify the correct COM port associated with the ELM327 device.
- Device Not Recognized: Ensure drivers are correctly installed. If issues persist, try reinstalling drivers or using a different USB port.
- Connection Errors: Check that the ignition is on and the OBD-II connector is securely plugged into the vehicle's port.
One of the key features of the ELM327 USB cable is its ability to monitor real-time data from your vehicle. This includes engine speed, coolant temperature, and fuel consumption. By using OBD-II software, you can view these parameters in real-time, helping you diagnose issues more effectively.
The ELM327 cable allows you to read and clear Diagnostic Trouble Codes (DTCs) stored in your vehicle's onboard computer. These codes indicate specific problems with the vehicle's systems, such as issues with the engine or emissions control.
In addition to real-time data and DTCs, the ELM327 cable can retrieve vehicle information and freeze frame data. Vehicle information includes details like the vehicle identification number (VIN), while freeze frame data captures the vehicle's conditions at the time a fault occurred.
The ELM327 USB cable is compatible with most vehicles manufactured after 1996, as these vehicles are required to have an OBD-II system. However, compatibility can vary depending on the vehicle's make and model, so it's important to check if your vehicle supports OBD-II before purchasing an ELM327 device.
Using an ELM327 USB cable offers several benefits for vehicle owners and mechanics alike. It provides a cost-effective way to diagnose and troubleshoot vehicle problems without needing expensive dealership equipment. Additionally, it allows for real-time monitoring of vehicle performance, helping to identify potential issues before they become major problems.
Installing an ELM327 USB cable on Windows involves downloading and installing the correct drivers, connecting the device to both your computer and vehicle, and configuring OBD-II software. By following these steps and troubleshooting common issues, you can effectively use the ELM327 USB cable for vehicle diagnostics. The ELM327 cable offers a range of features, including real-time data monitoring and diagnostic trouble code management, making it a valuable tool for anyone interested in vehicle maintenance.
Common drivers include CP210x and PL2303. Depending on the chip used in your ELM327 device, you might need to install additional drivers like FTDI.
Open the Device Manager on your Windows computer, go to the "Ports (COM & LPT)" section, and look for the device listed as a serial or USB serial port. This will indicate the COM port associated with your ELM327 device.
While the ELM327 device itself is compatible with various operating systems, the software and drivers might not be as readily available for macOS or Linux. However, there are alternative software options available for these platforms.
Ensure that the drivers are correctly installed and try using a different USB port. If issues persist, reinstall the drivers or contact the device manufacturer for support.
Check that the vehicle's ignition is on, the OBD-II connector is securely plugged into the vehicle, and the software is configured to use the correct COM port. If problems continue, try restarting the software or reinstalling it.
