Hardwiring a USB cable can be a useful skill for various projects, such as integrating USB devices into car systems or creating custom power solutions for home devices. This guide will walk you through the process, covering the necessary materials, steps, and safety considerations. It will also address common questions and provide detailed explanations.
USB cables are widely used for data transfer and power supply. They typically consist of four wires: two for power (Vbus and GND) and two for data (D+ and D-). Understanding the USB pinout is crucial for any modification or hardwiring project.
The standard USB Type-A connector has the following pinout:
- Pin 1: Vbus (usually red)
- Pin 2: D- (usually white)
- Pin 3: D+ (usually green)
- Pin 4: GND (usually black)
This pinout is essential for identifying which wires to connect when hardwiring a USB cable.
To hardwire a USB cable, you will need:
- USB Cable: Any standard USB cable can be used.
- Wire Stripper: For stripping the insulation off the wires.
- Soldering Iron (Optional): If you prefer a soldered connection.
- Splice Connectors (Optional): For solder-less connections.
- Multimeter: To test voltage and continuity.
- Voltage Converter (Optional): If connecting to a non-standard power source.
1. Cut the USB Cable: Use wire cutters to cut the cable to the desired length.
2. Strip the Wires: Use a wire stripper to expose the inner wires.
- Red Wire (Vbus): Positive power wire.
- Black Wire (GND): Ground wire.
1. Soldering Method: Use a soldering iron to connect the Vbus and GND wires to your power source. Ensure the solder joints are clean and secure.
2. Solder-less Method: Use splice connectors to connect the wires without soldering. This method is quicker but may not be as durable.
Use a multimeter to ensure you are getting the correct voltage (5V for standard USB). This step is crucial to avoid damaging your device.
- Voltage Conversion: If connecting to a non-standard power source (e.g., a car's 12V system), use a voltage converter to avoid damaging the device.
- Insulation: Ensure all exposed wires are properly insulated to prevent shorts.
- Overheating: Avoid overloading the USB connection, as this can cause overheating and damage.

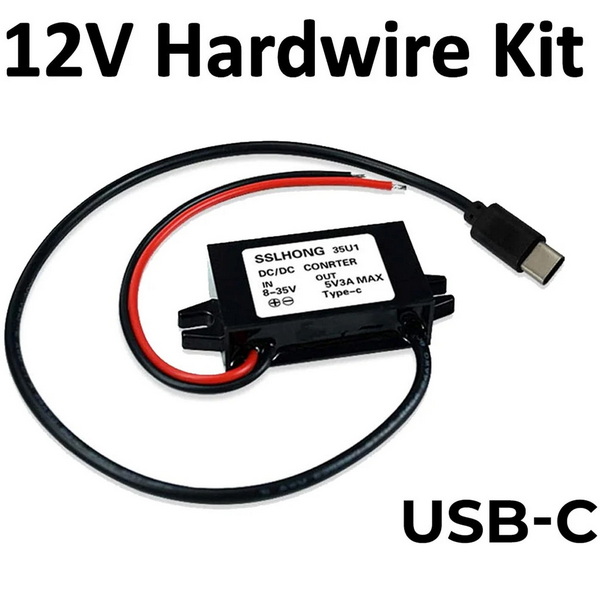

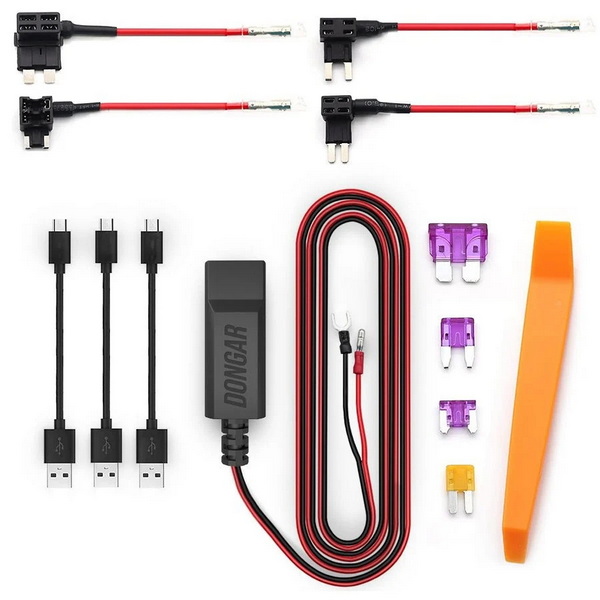

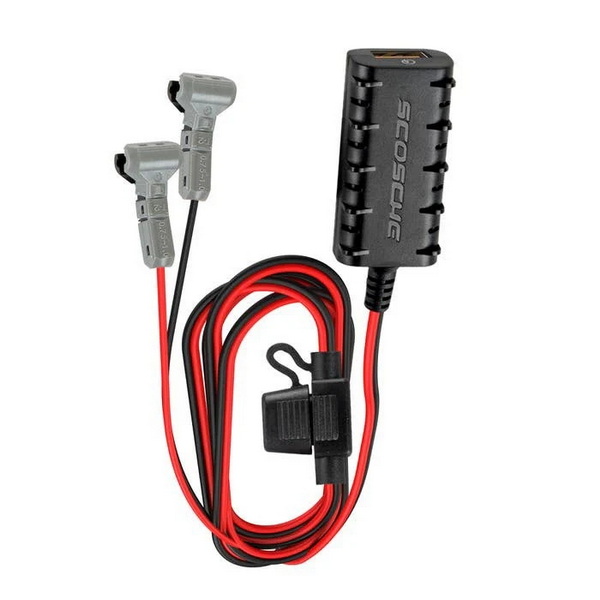

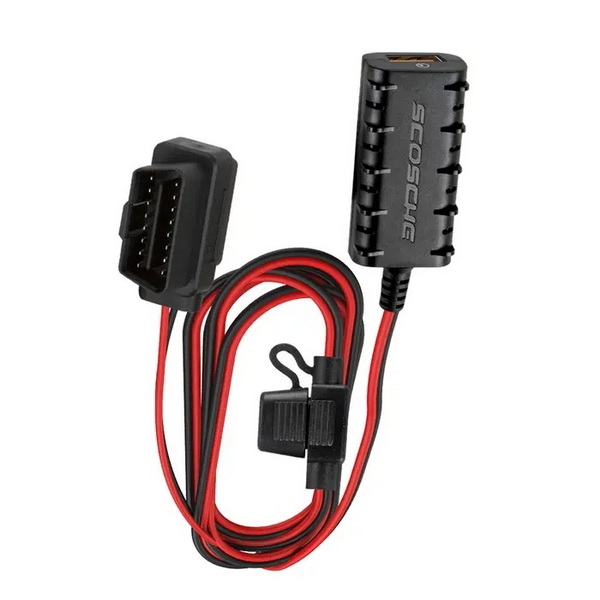

To hardwire a USB device in a car, you need a 12V to 5V converter and a fuse to protect the circuit. This setup is common for installing USB chargers or powering GPS devices.
For home installations, ensure compliance with electrical codes. Using a junction box can help keep the wiring organized and safe. This is particularly useful for powering devices like smart home hubs or security cameras.
If you need to power multiple devices, consider using a powered USB hub. This can distribute power safely and efficiently, ensuring each device receives the required voltage.
Creating custom USB cables can be useful for specific projects. For example, you might need a longer cable or a cable with a specific connector type. Always ensure that your custom cables meet USB specifications to avoid compatibility issues.
Common issues include incorrect voltage, poor connections, or overloaded circuits. Use a multimeter to diagnose voltage problems, and check connections for any signs of wear or damage.
Hardwiring a USB cable can be a straightforward process with the right tools and knowledge. It's essential to follow safety guidelines and ensure proper voltage conversion when necessary. Whether for car installations or home projects, understanding how to work with USB cables can enhance your DIY capabilities. Always ensure that your connections are secure and meet safety standards to avoid any potential risks.
The power wires in a USB cable are typically colored red for Vbus (positive) and black for GND (ground).
While USB Y-cables are not officially supported by the USB specification, they can be used to draw power from multiple ports. However, connecting them to different hosts can cause electrical issues.
Running a USB cable inside a wall is generally safe if done properly. However, for distances over 16 feet, consider using an active extender to maintain signal quality.
Use a 12V to 5V step-down converter to safely power USB devices from a 12V system.
Overloading can occur if a device draws more power than the USB port can supply. This can lead to overheating or damage to the device or the USB port.
