USB charging cables are essential for powering our devices, but they can easily become damaged due to frequent use or improper handling. Instead of buying a new cable, you can fix a broken one with a few simple steps. This guide will walk you through the process of repairing a USB charging cable, including tips and tricks to ensure your cable lasts longer.
Introduction to USB Cables
USB cables are designed to connect devices to computers for data transfer and charging. They typically consist of four wires: red (VCC), white (Data-), green (Data+), and black (Ground). Understanding these components is crucial for successful repairs. The red wire carries power, while the white and green wires handle data transmission. The black wire serves as the ground, completing the circuit.
Common Issues with USB Cables

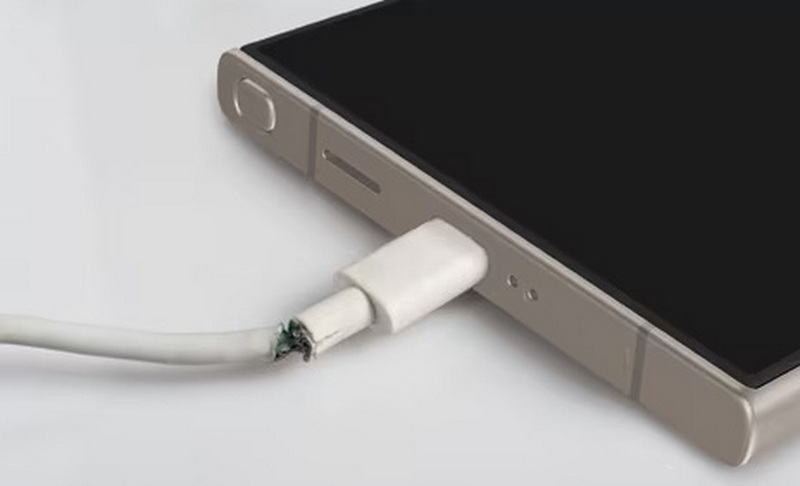

- Frayed or Cut Wires: Often, the wires inside the cable can become frayed or cut, especially near the connectors. This can lead to intermittent charging or data transfer issues.
- Damaged Connectors: The USB connectors can break or become loose over time, causing poor connections.
- Insulation Damage: The outer insulation of the cable can crack or break, exposing the inner wires and potentially causing electrical hazards.
Step-by-Step Guide to Fixing a USB Charging Cable
Step 1: Identify the Problem

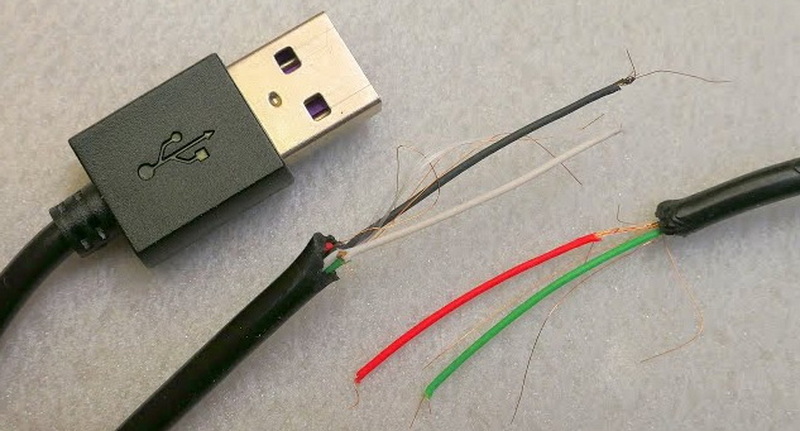

Before starting the repair, identify where the damage is located. This could be a frayed section, a broken connector, or damaged insulation. Use a flashlight to inspect the cable closely if necessary.
Step 2: Prepare Your Tools
You will need:
- Wire cutters
- Soldering iron
- Solder
- Electrical tape
- Hot glue gun (optional)
- Replacement USB connector (if needed)
Step 3: Cut and Prepare the Cable
Cut the cable at the damaged section using wire cutters. Remove any damaged insulation to expose the wires. Be careful not to cut too much of the cable, as this can reduce its overall length.
Step 4: Clean and Solder the Wires
Clean the exposed wires and solder them in the correct order:
- Red (VCC)
- White (Data-)
- Green (Data+)
- Black (Ground)
Ensure the soldering iron is set to the correct temperature to avoid damaging the wires. Use a small amount of solder to prevent creating a bulky joint.
Step 5: Insulate the Repaired Section
Use electrical tape to cover the soldered wires. For added protection, apply hot glue around the taped area. This helps prevent moisture from entering the cable and causing further damage.
Step 6: Replace the Connector (If Necessary)
If the USB connector is damaged, you will need to replace it. Remove the old connector and attach a new one, ensuring the wires are correctly aligned. Use a soldering iron to secure the wires to the connector.
Step 7: Test the Cable
Once the repair is complete, plug the cable into a device to ensure it works properly. Check for any signs of overheating or electrical issues.
Tips for Extending Cable Life
- Handle with Care: Avoid bending or twisting the cable excessively, as this can cause internal wire damage.

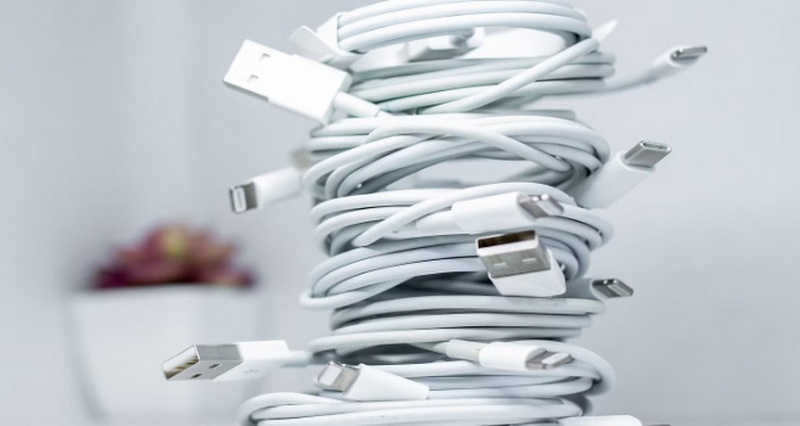

- Store Properly: Keep cables organized and away from heat sources. Consider using cable organizers or zip ties to manage cables.

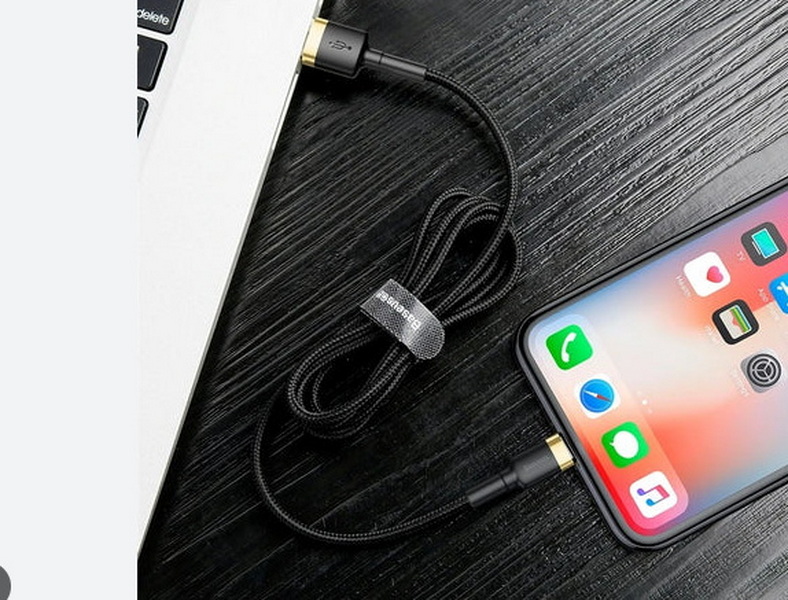

- Use Cable Protectors: Consider using cable sleeves or wraps to protect against wear and tear.
Common Mistakes to Avoid
- Incorrect Soldering: Ensure wires are soldered in the correct order to avoid short circuits. A short circuit can cause the cable to malfunction or even damage the connected device.
- Insufficient Insulation: Always cover soldered areas with tape or glue to prevent electrical issues. Exposed wires can lead to safety hazards.
Advanced Repair Techniques
For more complex repairs, such as fixing a damaged USB-C cable, you may need specialized tools like a USB-C connector repair kit. These kits usually include replacement connectors and detailed instructions for reassembly.
Repairing USB-C Cables
USB-C cables are more complex due to their reversible design and higher data transfer speeds. When repairing a USB-C cable, ensure you align the wires correctly according to the USB-C pinout diagram. This can be more challenging than repairing a standard USB-A cable.
Troubleshooting Common Issues
If your repaired cable does not work as expected, there are a few troubleshooting steps you can take:
- Check for Short Circuits: Use a multimeter to test for any short circuits between the wires.
- Verify Wire Connections: Ensure all wires are securely connected to the USB connector.
- Test with Different Devices: Try using the cable with different devices to rule out issues with the connected device.
Environmental Benefits of Repairing Cables
Repairing USB cables not only saves money but also contributes to environmental sustainability by reducing electronic waste. Electronic waste is a growing concern globally, and extending the life of electronic components can help mitigate this issue.
Conclusion
Fixing a USB charging cable can save you money and reduce electronic waste. By following these steps and tips, you can extend the life of your cables and ensure they remain functional. Remember to handle your cables with care to prevent future damage.
Frequently Asked Questions
1. What are the common causes of USB cable damage?
Common causes include excessive bending, improper storage, and wear at the connectors.
2. How do I prevent my USB cables from getting damaged?
Prevention includes storing cables properly, avoiding excessive bending, and using cable protectors.
3. Can I fix a USB cable with a broken connector?
Yes, you can fix a broken connector by replacing it with a new one. Ensure the wires are correctly aligned during reassembly.
4. What tools do I need to fix a USB cable?
You will need wire cutters, a soldering iron, solder, electrical tape, and possibly a hot glue gun.
5. Is it environmentally friendly to repair USB cables?
Yes, repairing USB cables reduces electronic waste and contributes to environmental sustainability.
