Fixing a USB cable end is a straightforward process that can save you money and reduce electronic waste. With the right tools and a bit of patience, you can repair your USB cable and have it working like new again. This guide will walk you through the steps to replace a USB cable end, including how to identify the wires, solder them to a new connector, and ensure proper insulation.

how to fix usb cable end_3

Introduction to USB Cables

USB cables are widely used for charging devices and transferring data between computers and peripherals. They typically consist of four wires: red (power), black (ground), white (data-), and green (data+). Some newer cables, like USB 3.0, may have additional wires for faster data transfer.

Common Issues with USB Cables

1. Damaged Connectors: The most common issue is a broken or loose connector, which can be fixed by replacing the entire connector.

2. Fractured Wires: Wires can break due to stress or bending, requiring the damaged section to be cut out and the wires soldered together.

3. Loose Connections: Over time, the connection between the cable and the device can become loose, leading to intermittent connectivity issues[2].

Tools Needed for Repair

To fix a USB cable end, you will need the following tools:

- Wire Cutters: For cutting the cable and removing damaged sections.

- Wire Strippers: To strip the insulation from the wires.

- Soldering Iron: To solder the wires to the new connector.

- Rosin-Core Solder: Best for electronics as it helps create strong connections.

- Heat Shrink Tube: To insulate the soldered connections.

- Hot Glue Gun (Optional): For reattaching the outer casing of moulded plugs.

how to fix usb cable end_4

Step-by-Step Guide to Fixing a USB Cable End

Step 1: Cut Off the Damaged Connector

Use wire cutters to remove the damaged connector from the cable. Ensure you cut far enough from the break to remove any frayed or damaged wire.

Step 2: Strip the Cable Insulation

Strip the insulation from the end of the cable using wire strippers. Be careful not to cut the wires themselves.

Step 3: Identify Wire Colors

Identify the wire colors:

- Red: Power (5V)

- Black: Ground

- White: Data-

- Green: Data+

For USB 3.0 or other types, refer to the connector's datasheet for specific wire layouts.

Step 4: Prepare Wires for Soldering

Strip the insulation from the ends of the wires to prepare them for soldering.

Step 5: Solder Wires to New Connector

Solder each wire to its corresponding pin on the new connector. Use rosin-core solder for strong connections.

Step 6: Insulate Connections

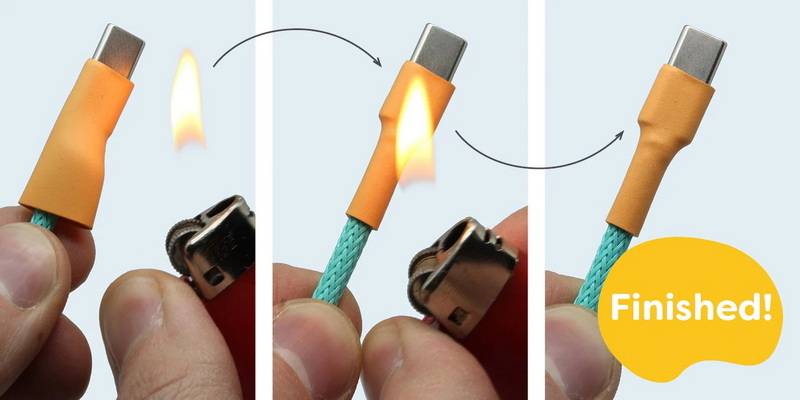

Use heat shrink tubing to insulate the soldered connections. Apply heat to shrink the tubing.

Step 7: Assemble the Connector

Place the connector housing over the soldered wires. Ensure all parts are securely in place.

Step 8: Test Your New Connection

Plug the repaired cable into a device to test if it works properly.

how to fix usb cable end_2

Special Considerations

Repairing Moulded Plugs

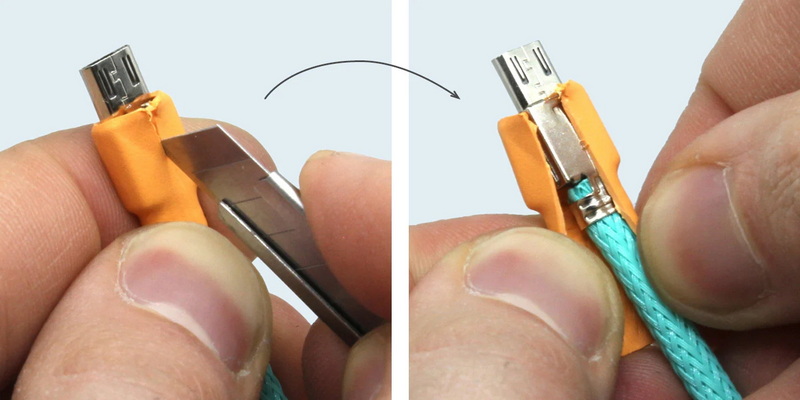

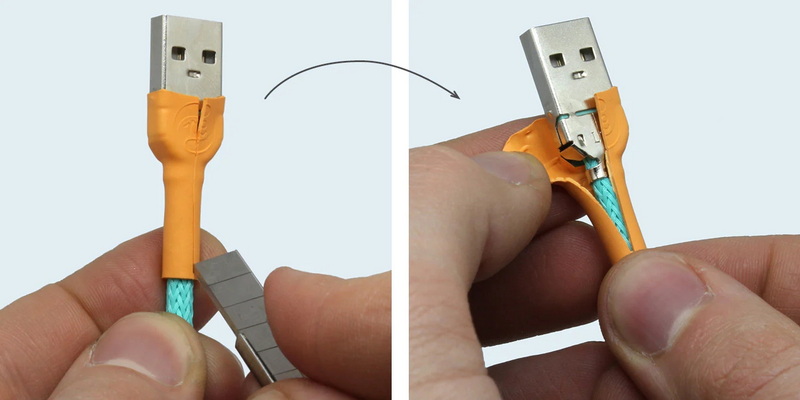

For moulded plugs, you may need to cut open the casing to access the wires. Use a hot glue gun to reattach the casing after repair. This process involves carefully cutting along one side of the plug, removing the metal innards, and then reassembling everything once the wires are soldered[4].

Shielding

If your cable has shielding (like silver wires wrapped around it), carefully unwrap it during repair and rewrap it afterward. Use heat shrink tubing to cover the repaired section. This ensures that the shielding remains effective in reducing electromagnetic interference[1].

USB-C and USB 3.0 Cables

USB-C and USB 3.0 cables often have more complex wiring due to additional data lines. When repairing these cables, ensure that you match the correct wires to their corresponding pins on the new connector. This may require consulting a wiring diagram specific to the type of cable you are repairing[6].

Troubleshooting Common USB Issues

In addition to repairing cables, it's also important to troubleshoot common USB issues. These can include loose connections, slow data transfer, and compatibility problems. Here are some steps to troubleshoot these issues:

- Loose Connections: Try using a different USB port or cable. If the problem persists, it may be time to replace the cable or repair the port[2].

- Slow Data Transfer: Check for faulty cables or outdated drivers. Ensure that your USB drivers are up-to-date and try using a different cable[2].

- Compatibility Issues: Ensure that your device and cable are compatible. Some devices may require specific types of USB cables for optimal performance[2].

Preventing Future Damage

To extend the life of your USB cables and prevent future damage, consider the following tips:

- Use High-Quality Cables: Invest in cables from reputable manufacturers to ensure durability.

- Avoid Overbending: Try to keep your cables straight and avoid bending them excessively.

- Store Cables Properly: Keep cables organized and avoid tangling them, which can lead to stress on the wires.

Conclusion

Fixing a USB cable end is a cost-effective way to extend the life of your cables. With the right tools and a bit of practice, you can confidently repair your USB cables and reduce electronic waste. By following these steps and troubleshooting common issues, you can ensure reliable connections and efficient data transfer.

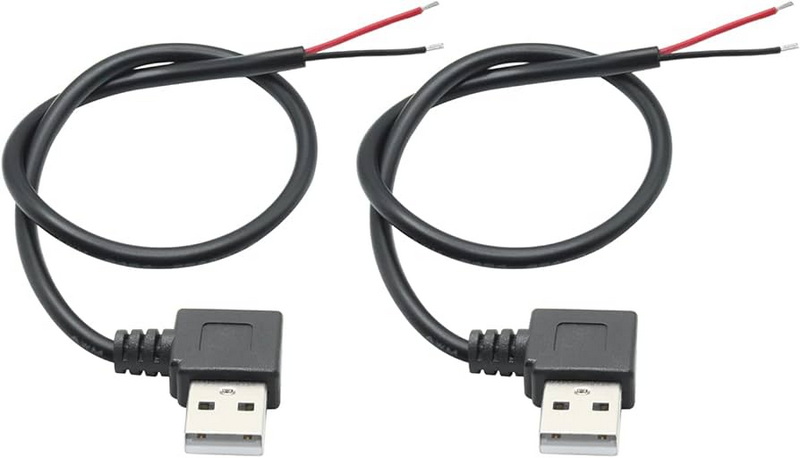

how to fix usb cable end_1

Frequently Asked Questions

1. What types of USB connectors can I replace?

You can replace various types of connectors, including USB-A, USB-B, Micro USB, and USB-C connectors.

2. Do I need special tools for this repair?

Yes, you will need basic tools like wire cutters, wire strippers, and a soldering iron. Rosin-core solder is recommended for electronics.

3. Is it safe to solder wires?

Yes, as long as you follow safety precautions while using a soldering iron and ensure connections are properly insulated afterward.

4. Can I use any type of solder?

No, it's best to use rosin-core solder designed for electronics as it helps create strong connections without damaging components.

5. What should I do if my cable still doesn't work after replacing the end?

Check all connections for proper soldering and ensure there are no shorts between wires. You may also want to test with another device or check for damage elsewhere in the cable.

Citations:

[1] https://www.ifixit.com/Guide/USB+Cable+Repair/12754

[2] https://fastercapital.com/topics/common-problems-with-usb-cables.html

[3] https://en.recable.eu/pages/reparatur-micro-usb-kabel

[4] https://www.instructables.com/How-to-repair-a-moulded-USB-plug/

[5] https://vcom.com.hk/shows/169/439.html

[6] https://en.recable.eu/pages/reparatur-usb-c-kabel-mit-usb-a-host

[7] https://www.youtube.com/watch?v=7KvNbYmKbeY

[8] https://www.yuxun.com/how-to-replace-a-usb-cable-end.html

[9] https://www.youtube.com/watch?v=p_vSUVSnKrc

[10] https://www.reddit.com/r/talesfromtechsupport/comments/bxyrzk/if_your_usb_cable_isnt_going_all_the_way_in/

[11] https://en.recable.eu/pages/reparatur-usb-a-kabel

[12] https://www.youtube.com/watch?v=Y1mn13yTWPA&vl=de

[13] https://docs.lightburnsoftware.com/Troubleshooting/USBProblems.html

[14] https://www.anker.com/blogs/cables/repair-usb-cable

[15] https://cdn.shopify.com/s/files/1/0493/9834/9974/articles/how-to-repair-usb-cable.jpg?v=1722308816&sa=X&ved=2ahUKEwjYq6a5hf2LAxVHSvEDHeE6DhwQ_B16BAgHEAI

[16] https://www.pcworld.com/article/2007687/to-fix-the-most-common-usb-connection-problems-under-windows.html

[17] https://www.youtube.com/watch?v=ZUi7BOmkaUM

[18] https://www.campbellsci.de/blog/usb-rs-232-adapter-cable-issues

[19] https://www.youtube.com/watch?v=p2suN9hRmBk

[20] https://hub.sync.logitech.com/h570e/post/basic-troubleshooting-guide-for-logitech-usb-cable-and-usb-wireless-Vs5IYdg4Nn4YKYW
