Fixing a broken USB cable connector can be a cost-effective and environmentally friendly way to extend the life of your cables. Whether you're dealing with a Micro USB, USB-C, or standard USB-A connector, the process involves similar steps. This guide will walk you through the process of repairing a USB cable connector, including tips for different types of connectors and troubleshooting common issues.

Introduction to USB Connectors

USB (Universal Serial Bus) connectors are ubiquitous in modern electronics, used for both charging and data transfer. Over time, these connectors can become damaged due to wear and tear, especially at the joints. However, with the right tools and a bit of patience, you can repair them yourself.

Types of USB Connectors

- Micro USB: Commonly used in older smartphones and tablets.

- USB-C: The newer, reversible connector found in modern devices.

- USB-A: Typically used on computers and power sources.

Tools and Materials Needed

Before you start, ensure you have the following tools and materials:

- Wire cutters

- Wire strippers

- Soldering iron and solder

- Heat shrink tubing

- Replacement USB connector

- Pliers or clamps

- Electrical tape or glue

Step-by-Step Guide to Fixing a USB Cable Connector

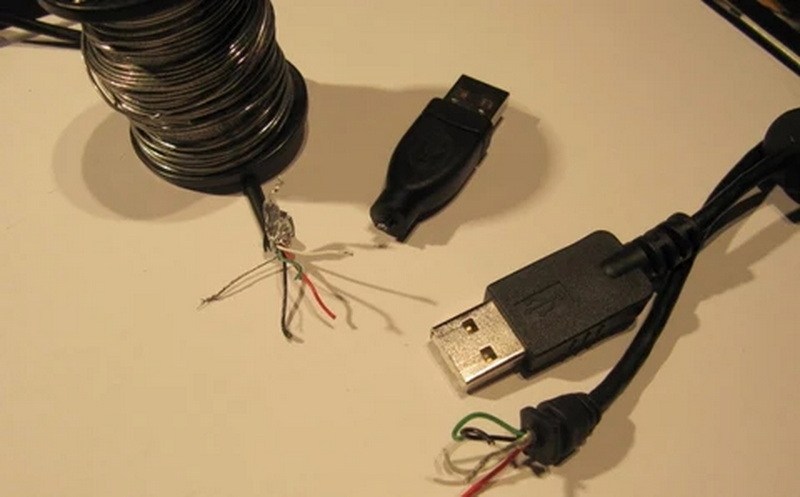

Step 1: Cut Off the Broken Connector

Identify the damaged part of the cable and cut it off using wire cutters. This will give you a clean start for your repair.

Step 2: Remove the Outer Jacket

Use a wire stripper to remove the outer insulation of the cable, exposing the inner wires.

Step 3: Strip the Inner Wires

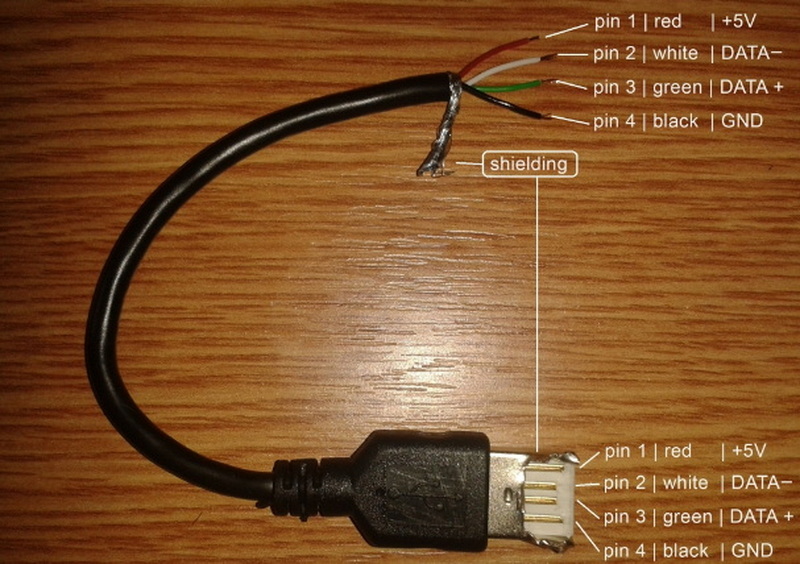

Strip the insulation from the ends of the inner wires. Typically, a USB cable has four wires: red (5V), black (GND), white (Data-), and green (Data+).

Step 4: Prepare the New Connector

If you're replacing the entire connector, ensure you have a new one that matches the type of your cable (Micro USB, USB-C, etc.).

Step 5: Solder the Wires

Match the wires to the correct pins on the new connector. For a standard USB cable:

- Red to the 5V pin

- Black to the GND pin

- White to the Data- pin

- Green to the Data+ pin

Use a soldering iron to connect the wires securely. A "third hand" tool can be helpful in holding the wires in place while soldering.

Step 6: Insulate the Connections

Use electrical tape or hot glue to insulate the soldered connections and protect them from short circuits.

Step 7: Assemble the Connector

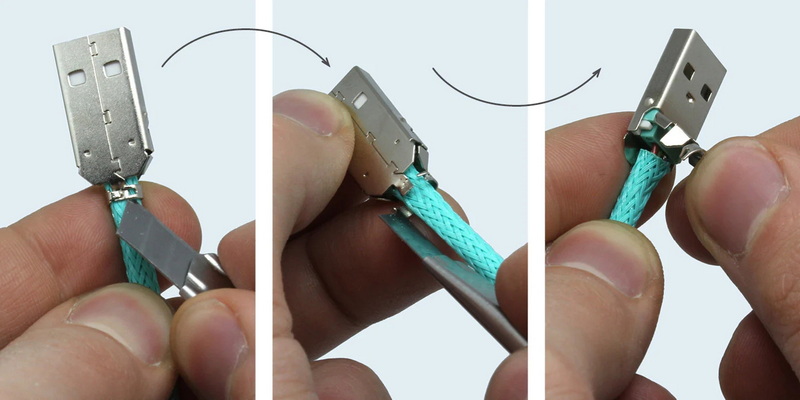

Place the wires and connector into the outer casing. Use pliers to secure any clips or strain relief mechanisms.

Step 8: Apply Heat Shrink Tubing

Slide heat shrink tubing over the repaired area and apply heat to seal it. Be cautious not to get too close with the flame, as this can cause the tubing to become sooty. A heat gun is a safer alternative.

Troubleshooting Common Issues

- Loose Connections: Ensure all wires are securely soldered.

- Short Circuits: Insulate all connections properly.

- No Power or Data Transfer: Check the wire colors and ensure they are connected to the correct pins.

Repairing Specific Types of USB Connectors

Repairing USB-C Connectors

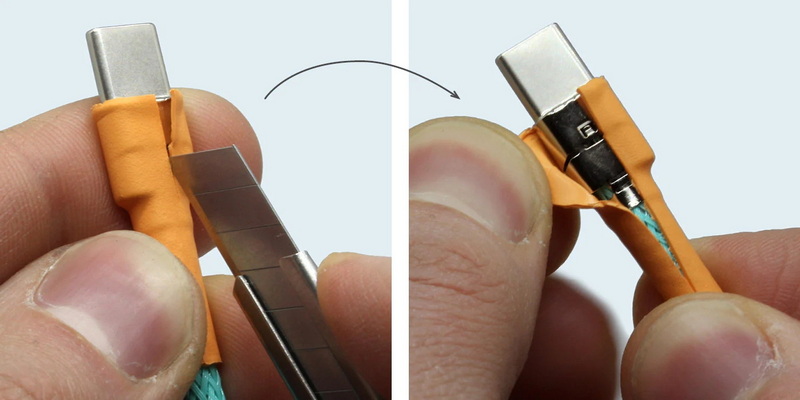

USB-C connectors are more complex due to their reversible design and higher data transfer capabilities. When repairing a USB-C cable, it's crucial to ensure that all connections are secure and properly insulated. The process involves carefully opening the connector housing, removing any damaged parts, and soldering the wires to the correct pins.

Repairing Micro USB Connectors

Micro USB connectors are commonly found in older devices. Repairing them involves similar steps to USB-C, but the connectors are generally less complex. Ensure that the five wires (GND, 5V, Data+, Data-, and the drain wire) are correctly connected.

Repairing USB-A Connectors

USB-A connectors are typically easier to repair due to their simpler design. The process involves stripping the wires, soldering them to the correct pins, and ensuring the connector is properly assembled.

Preventing Future Damage

To extend the life of your USB cables and prevent future damage, consider the following tips:

- Handle Cables Carefully: Avoid bending or twisting cables excessively.

- Use Cable Management: Keep cables organized to reduce wear and tear.

- Avoid Overheating: Ensure devices are not overheating, as this can damage cables.

Common Problems with USB Cables

USB cables can encounter several common issues, including loose connections, slow data transfer, and compatibility problems. Identifying these issues early can help prevent more serious damage.

- Loose Connections: Often caused by wear and tear, loose connections can be fixed by replacing the cable or repairing the connector.

- Slow Data Transfer: This can be due to damaged cables or compatibility issues. Try using a different cable or checking for updates on your devices.

Environmental Benefits of Repairing USB Cables

Repairing USB cables not only saves money but also contributes to reducing electronic waste. By extending the life of your cables, you're helping to minimize the environmental impact of disposable electronics.

Conclusion

Repairing a USB cable connector is a straightforward process that can save you money and reduce electronic waste. With the right tools and a bit of patience, you can extend the life of your cables and keep your devices connected.

FAQ

1. How Do I Identify the Correct Wire Colors for My USB Cable?

The standard wire colors for a USB cable are:

- Red: 5V

- Black: GND

- White: Data-

- Green: Data+

Ensure these match the pins on your new connector.

2. What Tools Do I Need to Solder the Wires?

You will need a soldering iron, solder, and possibly a third hand tool to hold the wires in place while soldering.

3. How Do I Prevent Short Circuits in My Repaired Cable?

Use electrical tape or hot glue to insulate the soldered connections. This prevents the wires from touching each other.

4. Can I Use a USB-C Connector as a Replacement for a Micro USB Connector?

No, USB-C and Micro USB connectors are not interchangeable. They have different pin layouts and designs.

5. How Do I Test My Repaired USB Cable?

Plug the cable into a device and test both charging and data transfer. If it doesn't work, check your connections and ensure the wires are securely soldered.
