Views: 222 Author: Tina Publish Time: 2025-03-08 Origin: Site
Content Menu
● Introduction to USB-C Cables
>> Step 1: Prepare the Tools and Materials
>> Step 2: Cut the Damaged Section
>> Step 3: Prepare the Wires for Soldering
>> Step 4: Solder the Wires Together
>> Step 5: Insulate Each Connection
>> 1. Why Won't My USB-C Cable Charge After Repair?
>> 2. How Do I Prevent My USB-C Cables from Breaking?
>> 3. Is It Safe to Use a Repaired USB-C Cable?
>> 4. Can All USB-C Cables Be Repaired?
>> 5. What Tools Do I Need to Repair a USB-C Cable?
● Troubleshooting Common Problems
● FAQ
>> 1: How long does it take to repair a USB-C cable?
>> 2: Can I repair a USB-C cable with a damaged connector?
>> 3: Is repairing a USB-C cable environmentally friendly?
>> 4: What if my USB-C cable doesn't charge after repair?
>> 5: How do I prevent my USB-C cables from breaking in the future?
Fixing a broken USB-C cable can be a cost-effective and environmentally friendly way to extend the life of your charging and data transfer cables. This guide will walk you through the steps to repair a USB-C cable, including identifying damage, preparing the cable for repair, soldering the wires, and insulating the connections.

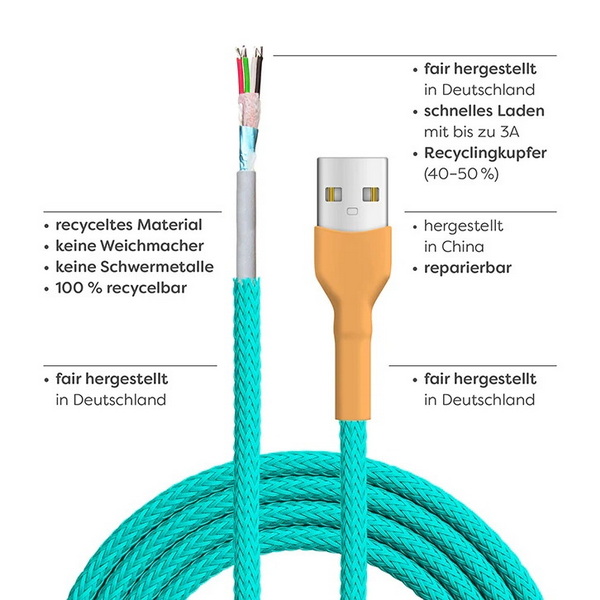

USB-C cables are versatile and widely used for both charging and data transfer. They typically consist of four primary wires: red (VCC), black (GND), green (Data+), and white (Data-). Some newer cables may include additional wires for USB 3.0 or other features like USB Power Delivery (PD) and Alternate Mode (Alt Mode). These cables are designed to be reversible, making them more convenient than traditional USB cables.
Before starting the repair, it's crucial to identify the extent of the damage. Look for frayed wires, broken connectors, or any signs of wear. Mark the damaged area for easy reference. This step is important because it helps you determine if the cable can be repaired or if it needs to be replaced.
You will need the following tools and materials:
- Wire cutters
- Soldering iron
- Solder
- Heat shrink tubing
- Multimeter (for testing)
- Electrical tape
- Cutter knife
- Lighter or heat gun
Having the right tools ensures that your repair is successful and safe. A soldering iron, for example, is essential for joining the wires securely.
Using wire cutters, carefully cut out the damaged section of the cable. Ensure you leave enough length on both sides to work with. This step requires precision to avoid cutting too much of the cable, which could make it too short for use.
Cut the outer cable covering with wire cutters or scissors, being careful not to cut the wires themselves. Pull off the piece of cover that you've separated from the rest. You should be left with four exposed individual wires. If your cable has additional wires for USB 3.0 or other features, ensure you identify and handle them correctly.

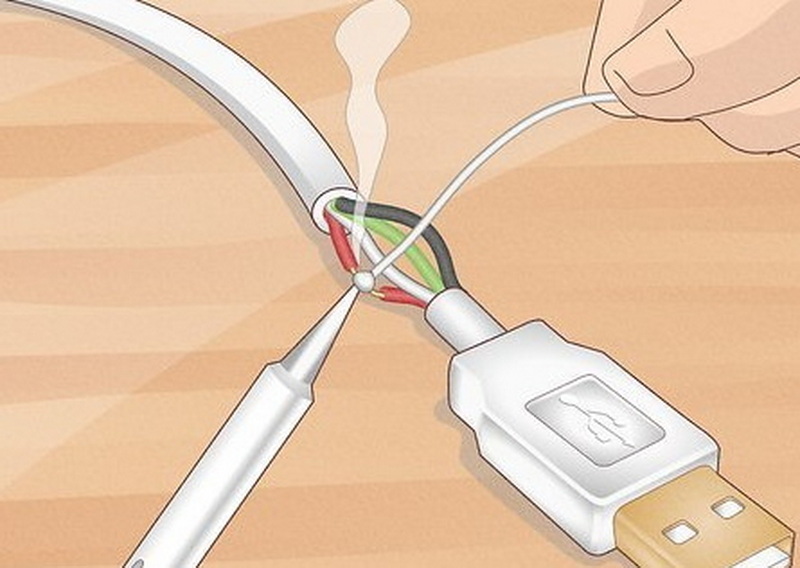

Solder like-colored wires to each other. For example, solder the red wire from one piece of the cable to the red wire from the other piece. Make sure the connections are secure and not touching any other wires. This step requires patience and attention to detail to avoid short circuits.

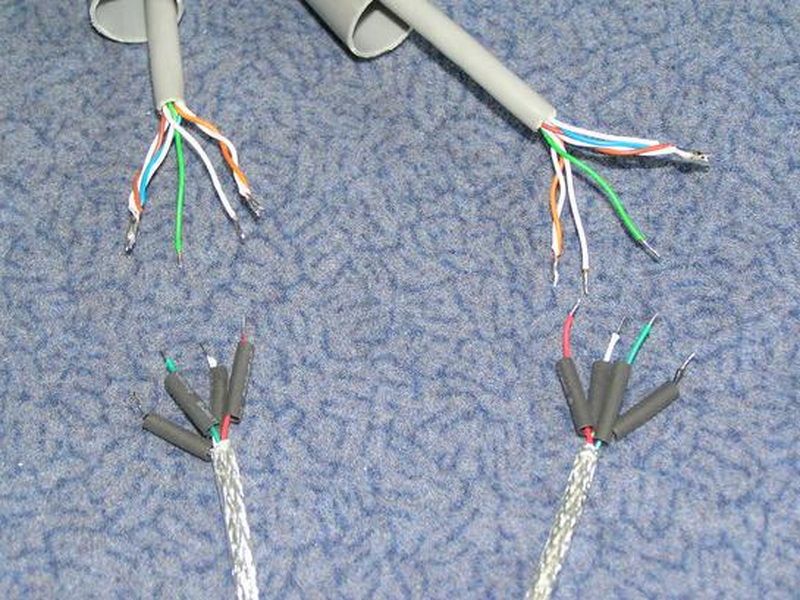

Use heat shrink tubing to insulate each connection. Slide the tubing over the soldered area and apply heat using a lighter or heat gun. This step is crucial for protecting the connections from moisture and preventing electrical shorts.
- Solution: Ensure that all connections are secure and properly soldered. Check for any remaining damage or frayed wires that might be causing the issue. Use a multimeter to test the continuity of the wires.
- Solution: Handle cables gently, avoid bending or twisting them excessively, and store them properly when not in use. Consider using cable organizers or cable ties to keep them tidy.
- Solution: Yes, if the repair is done correctly and all connections are secure. However, if the cable shows signs of further damage or does not function properly, it's best to replace it. Always test the cable after repair to ensure it works as expected.
- Solution: Most USB-C cables can be repaired, but if the damage is extensive or involves complex components like the connector itself, replacement might be necessary. In some cases, replacing the connector can be more cost-effective than attempting a repair.
- Solution: You will need wire cutters, a soldering iron, solder, heat shrink tubing, and a lighter or heat gun. A multimeter can be useful for testing the cable to ensure it's working correctly.

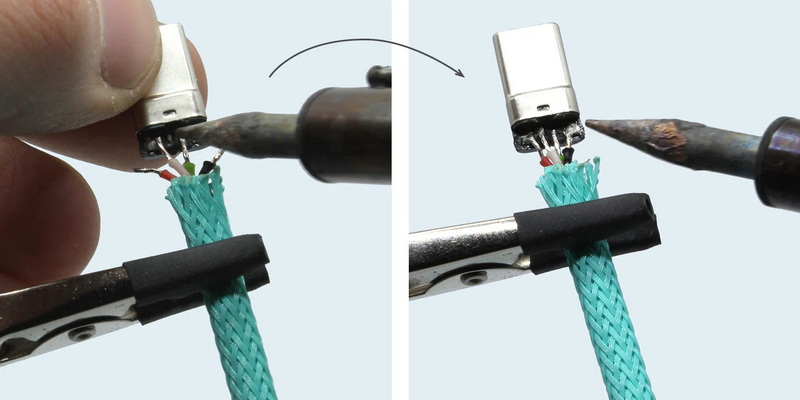

For more complex repairs, such as fixing a damaged USB-C connector, you may need specialized tools like a USB-C connector replacement kit. These kits usually include a new connector and the necessary hardware to attach it to the cable. This process can be more challenging and requires careful alignment and soldering of the connector pins.
When working with electrical components, safety is paramount. Always ensure you are working in a well-ventilated area, and avoid touching electrical components with your bare hands. Use protective gear like gloves and safety glasses when handling hot tools like soldering irons.
After repairing your USB-C cable, you might encounter issues like poor charging performance or data transfer problems. In such cases, check the soldered connections for any signs of damage or oxidation. Clean the connections with a soft brush or cotton swab to ensure they are free from debris.
Repairing a broken USB-C cable can be a rewarding DIY project that saves money and reduces electronic waste. By following these steps and using the right tools, you can extend the life of your cables and ensure they continue to function properly. Remember to always handle electrical components with care and test your cables thoroughly after repair.
- A: The repair process typically takes about 30 minutes to an hour, depending on the extent of the damage and your level of experience.
- A: If the connector itself is damaged, it may be more challenging to repair and might require replacement.
- A: Yes, repairing cables reduces electronic waste and conserves resources.
- A: Check for any remaining damage or improper connections. Ensure all soldered joints are secure.
- A: Handle cables gently, avoid excessive bending, and store them properly when not in use.
