Introduction to Fixing Broken Micro USB Cables

Fixing a broken Micro USB cable can be a cost-effective and environmentally friendly way to extend the life of your devices. Micro USB cables are commonly used for charging and data transfer in various devices, including smartphones, tablets, and portable speakers. Over time, these cables can become damaged due to wear and tear, leading to issues such as loose connections or complete failure. In this article, we will guide you through the process of repairing a broken Micro USB cable, including step-by-step instructions and tips for handling different types of repairs.

Understanding Micro USB Cables

Before diving into the repair process, it's essential to understand the components of a Micro USB cable. A standard Micro USB cable consists of five wires:

- Red: Power supply (5V)

- Black: Ground (GND)

- White: Data- (negative data line)

- Green: Data+ (positive data line)

- Shielding: Often a braided or foil shield to protect against electromagnetic interference

Repairing a Broken Micro USB Cable

Step 1: Identify the Problem

The first step in repairing a Micro USB cable is to identify the source of the problem. Common issues include a broken connector, damaged wires, or a loose connection.

Step 2: Gather Materials

To repair a Micro USB cable, you will need:

- A replacement Micro USB connector (available online)

- Wire strippers

- Soldering iron and solder

- Electrical tape or heat shrink tubing

- Pliers

Step 3: Remove the Broken Connector

Cut off the broken connector using wire cutters. Be careful not to damage the wires.

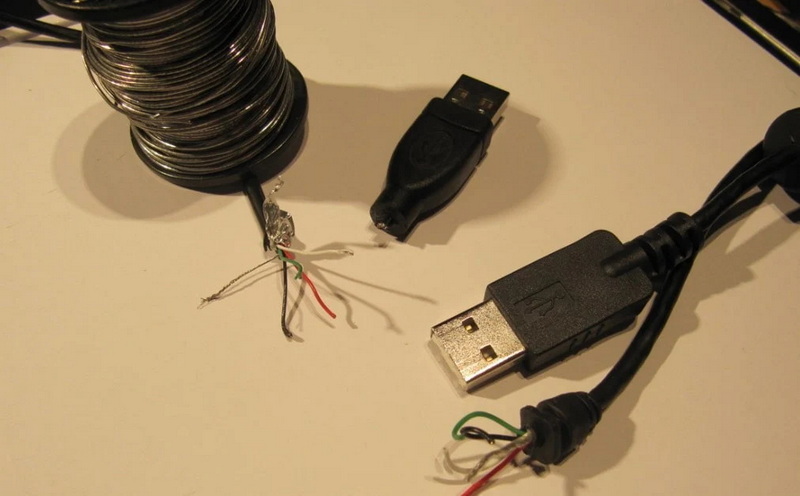

Step 4: Strip the Wires

Use wire strippers to remove the insulation from the ends of the wires, exposing about 1 cm of the conductor.

Step 5: Prepare the New Connector

Insert the wires through the new connector's housing. Ensure the wires are aligned with the correct pins:

- Red to the power pin

- Black to the ground pin

- White to the Data- pin

- Green to the Data+ pin

- Shielding to the ground pin if applicable

Step 6: Solder the Wires

Solder each wire to its corresponding pin on the connector. Make sure the solder joints are clean and secure.

Step 7: Insulate the Wires

Use electrical tape or heat shrink tubing to insulate the soldered connections and protect them from short circuits.

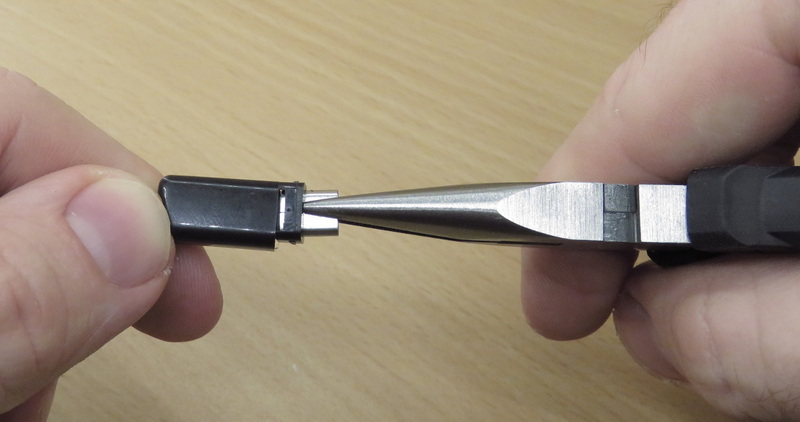

Step 8: Assemble the Connector

Use pliers to press the connector's housing together, securing the wires in place.

Tips for Handling Different Repairs

- Loose Connections: If the issue is a loose connection, you might need to adjust the clips on the Micro USB connector. Use a sewing needle to gently pry up the clips, making them more secure.

- Shielded Cables: If your cable has shielding, ensure it is properly connected to the ground pin and rewrapped around the wires after repair.

Common Issues and Solutions

1. How to Fix a Loose Micro USB Connector?

A loose Micro USB connector can be fixed by using a sewing needle to pry up the clips that hold the connector in place. This method is temporary and may need to be repeated over time.

2. How to Clean a Micro USB Port?

Cleaning a Micro USB port can be done using a sharpened toothpick to remove dirt and debris that may be causing a loose fit. This method is effective for improving the connection stability.

3. What to Do If the Micro USB Port on a Device Is Damaged?

If the Micro USB port on a device is damaged, such as bent pins or broken teeth, it may require professional repair or replacement. In some cases, DIY fixes can be attempted, but they often require soldering skills and specific tools.

4. How to Prevent Micro USB Cables from Breaking?

Preventing Micro USB cables from breaking involves handling them gently, avoiding excessive bending or twisting, and storing them properly when not in use.

5. Are Micro USB Cables Still Relevant?

Despite the rise of USB-C, Micro USB cables remain relevant for older devices and are still widely used. Repairing them can extend their lifespan and reduce electronic waste.

Conclusion

Repairing a broken Micro USB cable is a feasible DIY project that can save money and reduce waste. By following the steps outlined in this guide and using the right materials, you can restore your cable to working condition. Whether you're dealing with a loose connection or a completely broken connector, there are solutions available to fix the issue.

FAQ

1: Can I use any type of solder for repairing Micro USB cables?

A: It's best to use a low-temperature solder to avoid damaging the plastic components of the connector.

2: How do I know which wire goes to which pin on the Micro USB connector?

A: The standard colors for Micro USB wires are red for power, black for ground, white for Data-, and green for Data+. Always refer to the connector's datasheet if unsure.

3: Can I fix a Micro USB port on a device if it's damaged?

A: Depending on the extent of the damage, some DIY repairs are possible, but they often require advanced soldering skills and specific tools.

4: Is it worth repairing a Micro USB cable?

A: Yes, repairing a Micro USB cable can be cost-effective and environmentally friendly, especially for frequently used devices.

5: How do I prevent my Micro USB cables from breaking in the future?

A: Handle cables gently, avoid excessive bending, and store them properly when not in use.
