Fixing a cut USB cable can be a cost-effective and environmentally friendly way to extend the life of your devices. This guide will walk you through the steps to repair a damaged USB cable, including detailed instructions and visual aids.
USB cables are ubiquitous in modern technology, connecting devices like smartphones, laptops, and tablets. However, they can easily become damaged due to wear and tear, leading to frustrating connectivity issues. Instead of discarding a damaged cable, you can repair it with a few simple tools and some basic knowledge.
- Wire cutters: For cutting the outer insulation of the cable.
- Scissors: Alternatively, for cutting the outer insulation if wire cutters are not available.
- Soldering iron and solder: For connecting the wires.
- Shrink tubing: To protect the soldered joints.
- Heat gun or hair dryer: For shrinking the tubing.
Identify the damaged part of the cable by gently bending it. Once you've located the break, use wire cutters to cut the cable on both sides of the damage, making sure to leave enough length for repair. It's crucial to cut cleanly and avoid damaging the surrounding wires.

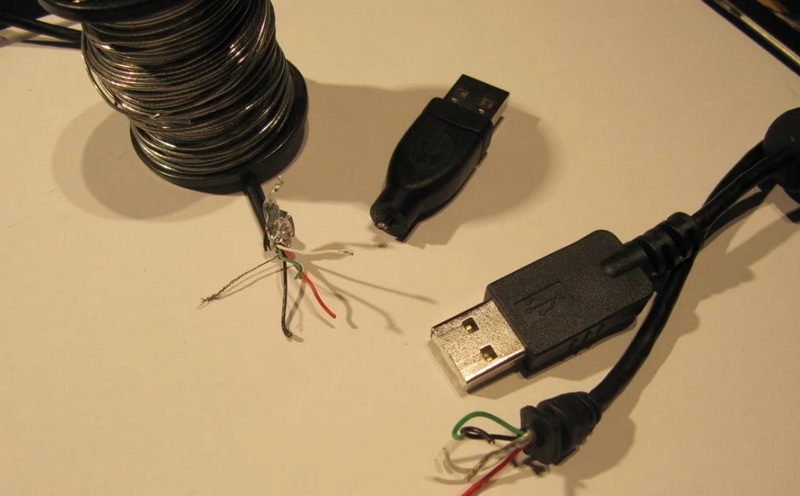

Strip the insulation from the ends of the cut cable using wire strippers or a sharp knife. Be careful not to cut the wires themselves. If you're using a knife, gently scrape away the insulation without applying too much pressure.
If your USB cable has a shield (usually a layer of silver wires wrapped around the main wires), carefully unwrap it without removing it entirely. You will rewrap it after soldering. The shield helps protect against electromagnetic interference, so it's important to maintain its integrity.

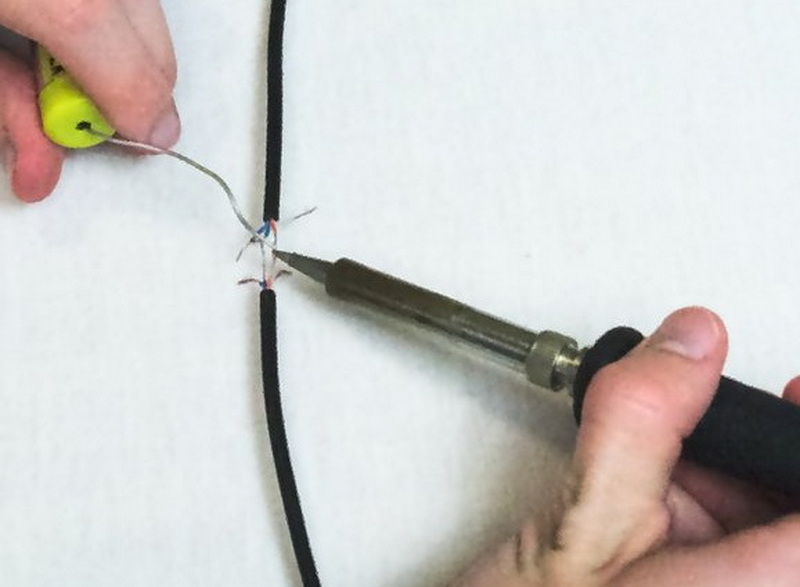

Match the colored wires together (red to red, black to black, etc.) and solder them. Ensure the solder flows smoothly and covers the joint completely. Use a soldering iron with a low temperature setting to avoid damaging the wires.
Use shrink tubing to cover the soldered joints. Apply heat with a heat gun or hair dryer to shrink the tubing. This step is crucial for protecting the connections from moisture and physical stress.
If your cable had shielding, rewrap it around the repaired section. Finally, use electrical tape to secure any loose ends. Make sure the tape is not too tight, as this can cause further damage.
When dealing with a shielded cable, carefully unwrap the shielding without removing it. After soldering, rewrap the shielding around the repaired section and cover with shrink tubing. This ensures that the cable maintains its original functionality and protection against interference.
You can use wire nuts or electrical tape as a temporary fix, but soldering provides a more reliable and durable connection. If you plan on repairing cables frequently, investing in a soldering kit is worthwhile.
Test the cable immediately after repair by connecting it to a device. If it doesn't work, check for loose connections or improper soldering. Sometimes, a simple re-soldering can fix the issue.
Use a solder specifically designed for electronics, as it has a lower melting point and is less likely to damage the wires. This type of solder also flows more smoothly, making it easier to create strong connections.
Regularly inspect your cables for signs of wear and use cable protectors or sleeves to prevent damage from bending or pinching. Keeping your workspace organized can also help reduce the likelihood of cables getting damaged.
For more complex repairs, such as fixing a damaged USB connector, you may need additional tools like a USB connector replacement kit. These kits usually include new connectors and instructions for replacing them.

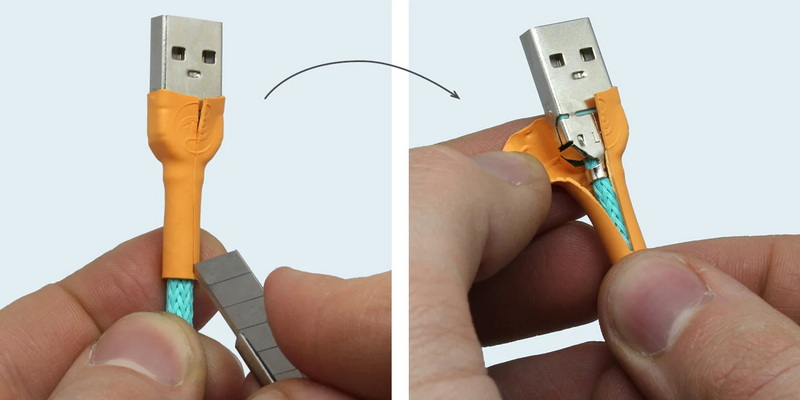

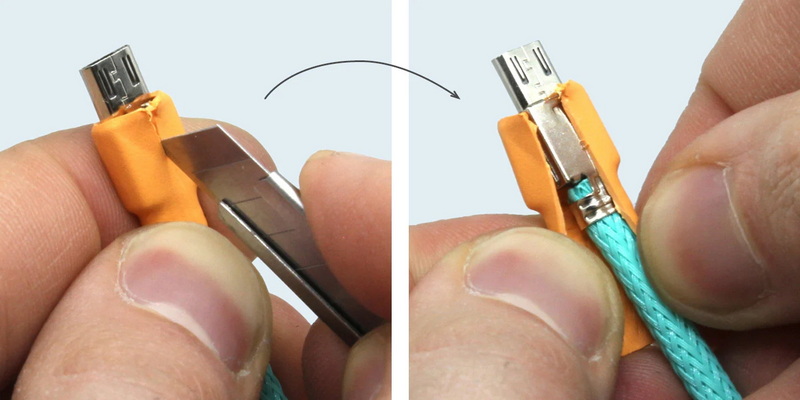

1. Disassemble the Connector: Carefully remove the outer casing of the connector to expose the internal wires.
2. Identify the Wires: Match the wires to their corresponding pins on the new connector.
3. Solder the Wires: Connect the wires to the new connector, ensuring each wire is securely attached.
4. Reassemble the Connector: Once all wires are soldered, reattach the outer casing.
This process requires precision and patience but can extend the life of your cable significantly.
- Regular Inspection: Regularly check your cables for signs of wear, such as fraying or exposed wires.
- Cable Management: Use cable ties or organizers to keep your workspace tidy and reduce the risk of cables getting damaged.
- Protective Sleeves: Use protective sleeves or cable protectors to shield your cables from physical stress.
By following these tips and techniques, you can not only repair damaged cables but also prevent future damage.
If your repaired cable doesn't work, there are several things you can check:
- Loose Connections: Ensure all soldered joints are secure and not loose.
- Incorrect Soldering: Check if the soldering was done correctly, with no cold joints.
- Damaged Wires: Inspect the wires for any signs of damage that might have been missed during the repair.
Addressing these issues can often resolve connectivity problems.
Repairing a cut USB cable is a straightforward process that can save you money and reduce electronic waste. With the right tools and a bit of patience, you can extend the life of your devices and cables. Remember to handle the wires carefully and ensure all connections are secure before testing the cable.
A: Wire cutters, scissors, soldering iron, solder, shrink tubing, and a heat gun or hair dryer.
A: Carefully unwrap the shielding, solder the wires, then rewrap the shielding around the repaired section.
A: Yes, but soldering provides a more reliable connection.
A: Regularly inspect cables for wear and use protective sleeves.
A: Check for loose connections or improper soldering.
