Extending the length of a USB cable is often necessary for various applications, such as connecting devices that are far from the computer or setting up a home office with limited port accessibility. There are several methods to extend USB cables, each with its own advantages and limitations. In this article, we will explore these methods in detail, including the use of USB extension cables, active extension cables, USB hubs, and USB over Ethernet extenders.
Introduction to USB Extension Methods
USB cables have inherent length limitations due to signal degradation over distance. For USB 2.0, the maximum recommended length is about 5 meters, while for USB 3.0 and later versions, it is typically around 3 meters. To overcome these limitations, users can employ various extension methods.

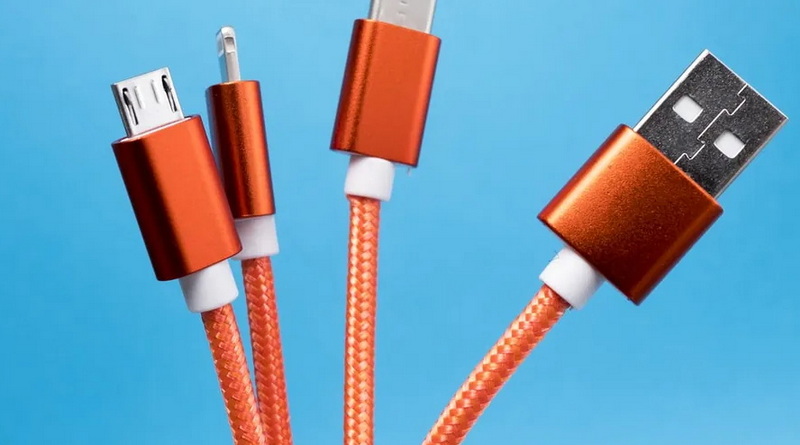

USB Extension Cables
What are USB Extension Cables?
USB extension cables are simple male-to-female cables that allow you to extend the connection between your device and computer. They are easy to use and suitable for short distances.
How to Use USB Extension Cables:
1. Connect the male end of your existing USB cable to the female end of the extension cable.
2. Then, connect the male end of the extension cable to your device.
Limitations:
- Maximum Length: For USB 2.0, the maximum length is about 5 meters. For USB 3.0, it is around 3 meters.
- Signal Degradation: Beyond these lengths, signal quality may degrade.

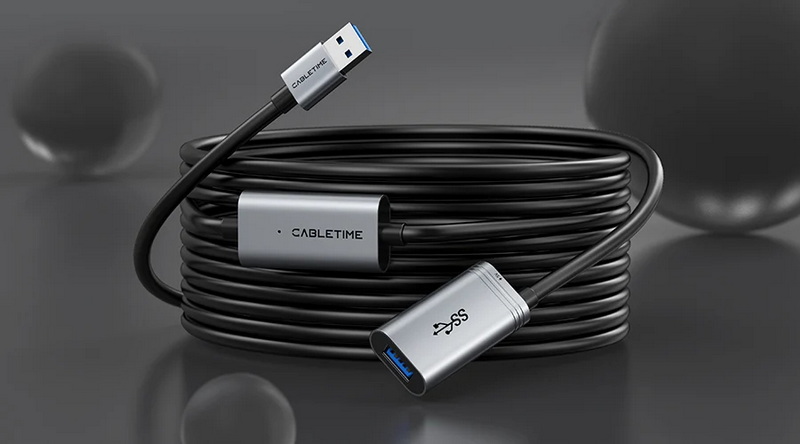

Active (Powered) USB Extension Cables
What are Active USB Extension Cables?
Active extension cables contain built-in signal amplifiers that boost the USB signal, allowing for longer distances without signal loss.
How to Use Active USB Extension Cables:
1. Connect the male end of your existing USB cable to the female end of the active extension cable.
2. Then, connect the male end of the active extension cable to your device.
Advantages:
- Extended Length: Can extend up to 30 meters for USB 2.0 and up to 18 meters for USB 3.0.
- Signal Integrity: Maintains signal quality over longer distances.

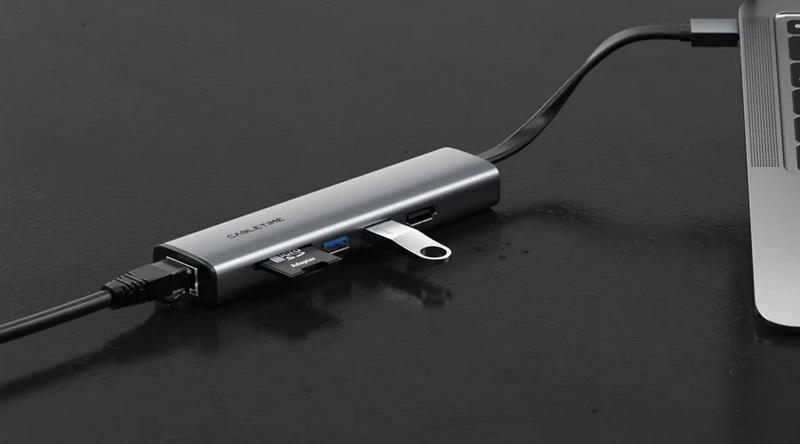

USB Hubs
What are USB Hubs?
USB hubs are devices that allow multiple USB peripherals to be connected to a single USB port. They can also be used to extend the distance of a USB connection by acting as a signal repeater.
How to Use USB Hubs for Extension:
1. Connect a USB hub to your computer.
2. Connect your device to the hub.
3. If necessary, daisy-chain multiple hubs to extend the distance further.
Advantages:
- Multi-Device Support: Allows connection of multiple devices.
- Distance Extension: Can extend USB connections by daisy-chaining hubs.

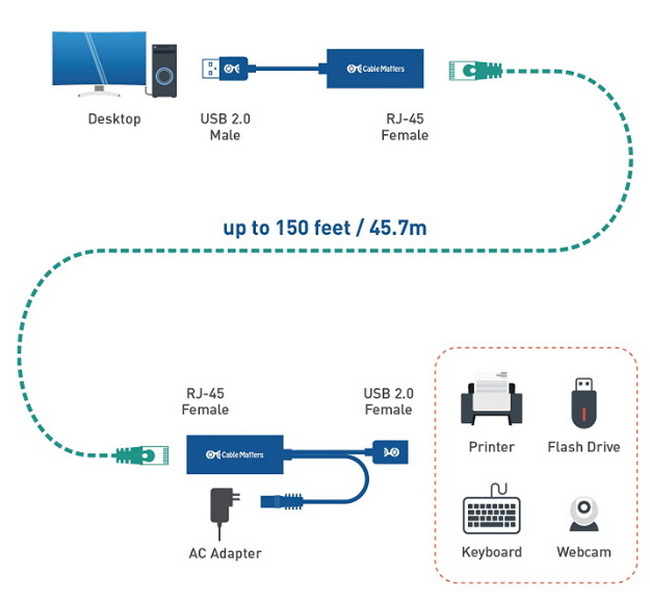

USB over Ethernet Extenders
What are USB over Ethernet Extenders?
These devices use Ethernet cables to extend USB connections over long distances. They consist of a transmitter connected to the computer and a receiver connected to the USB device.
How to Use USB over Ethernet Extenders:
1. Connect the transmitter to your computer via USB.
2. Connect the receiver to your USB device.
3. Use an Ethernet cable to connect the transmitter and receiver.
Advantages:
- Long Distance Support: Can extend USB connections up to 100 meters or more.
- Cost-Effective: Uses existing Ethernet infrastructure.
Choosing the Right Extension Method
When deciding how to extend your USB cable, consider the distance needed, the type of USB connection (e.g., USB 2.0, USB 3.0), and whether you need to connect multiple devices. Each method has its own strengths and limitations.
Common Issues and Solutions
1 How Do I Choose Between Active and Passive USB Extension Cables?
1. Active Extension Cables: Use these for longer distances (up to 30 meters for USB 2.0) where signal amplification is necessary.
2. Passive Extension Cables: Suitable for shorter distances (up to 5 meters for USB 2.0) where signal degradation is less likely.
2 Can I Use Multiple USB Hubs to Extend the Distance Further?
Yes, you can daisy-chain multiple USB hubs to extend the distance. However, be aware of bandwidth limitations and potential stability issues with longer chains.
3 What Are the Advantages of Using USB over Ethernet Extenders?
USB over Ethernet extenders offer long-distance support (up to 100 meters or more) and are cost-effective, as they utilize existing Ethernet infrastructure.
4 How Do I Ensure Stable Connections with Long USB Extensions?
To ensure stable connections:
- Use high-quality cables and devices.
- Avoid overloading the USB controller with too many devices.
- Monitor signal strength and adjust as necessary.
5 Are Active USB Cables Compatible with All USB Versions?
Active USB cables are generally compatible with various USB versions (e.g., USB 2.0, USB 3.0), but check specifications to ensure compatibility with your specific USB version.
Advanced Considerations
Power Requirements
When extending USB cables, especially with active cables or hubs, consider the power requirements. Some devices may need more power than what a standard USB port can provide, especially if you are using multiple devices through a hub. In such cases, using a powered hub can be beneficial.
Interference and Noise
Longer cables can be more susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). This can affect signal quality and device performance. Using shielded cables or keeping cables away from sources of interference can help mitigate these issues.
Environmental Factors
Environmental factors such as temperature and humidity can affect the performance and lifespan of USB cables. Ensure that your cables are used within recommended environmental conditions to prevent degradation.
Practical Applications
USB extension methods are not limited to home use; they are also crucial in professional settings. For example, in audio-visual installations, USB over Ethernet extenders can be used to connect devices like cameras or microphones over long distances without compromising signal quality.
In industrial environments, active USB extension cables can be used to connect sensors or control devices that are far from the control center. This allows for more flexible placement of equipment and easier maintenance.
Conclusion
Extending USB cable lengths is essential for various applications, from home offices to industrial settings. By understanding the different methods available—such as USB extension cables, active extension cables, USB hubs, and USB over Ethernet extenders—you can choose the best solution for your needs. Each method offers unique advantages, whether it's extending distances, supporting multiple devices, or utilizing existing infrastructure.
Frequently Asked Questions (FAQ)
1. What is the maximum length for a standard USB 2.0 cable?
- The maximum length for a standard USB 2.0 cable is about 5 meters.
2. How do active USB extension cables work?
- Active USB extension cables contain built-in signal amplifiers that boost the USB signal, allowing for longer distances without signal loss.
3. Can I use USB hubs to extend USB connections?
- Yes, USB hubs can be used to extend USB connections by acting as signal repeaters.
4. What are the advantages of using USB over Ethernet extenders?
- They offer long-distance support and are cost-effective by using existing Ethernet infrastructure.
5. How do I ensure stable connections with long USB extensions?
- Use high-quality cables, avoid overloading the USB controller, and monitor signal strength.
