Extending a micro USB cable can be a useful DIY project for various applications, such as connecting devices that are out of reach or enhancing the flexibility of your USB connections. This guide will walk you through the process of extending a micro USB cable, including the necessary materials, steps, and considerations for maintaining signal integrity.
Introduction to Micro USB Cables

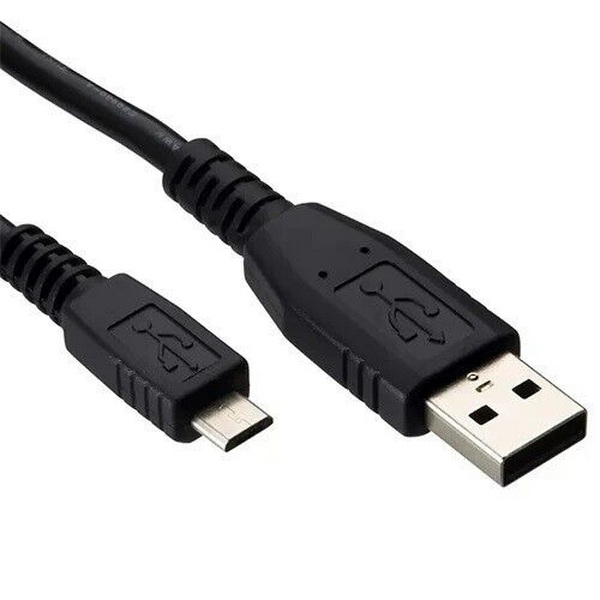

Micro USB cables are widely used for charging and data transfer in mobile devices, tablets, and other small electronics. They are smaller than standard USB cables, making them ideal for portable devices. However, their shorter length can sometimes limit their usability. Micro USB cables come in different types, including micro USB-B, micro USB-AB, and micro USB-OTG, each serving different purposes depending on the device and application.
Materials Needed
To extend a micro USB cable, you will need the following materials:
- Micro USB Male Connector: This will connect to your device.
- Micro USB Female Connector: This will be used to connect the extension cable to your device.

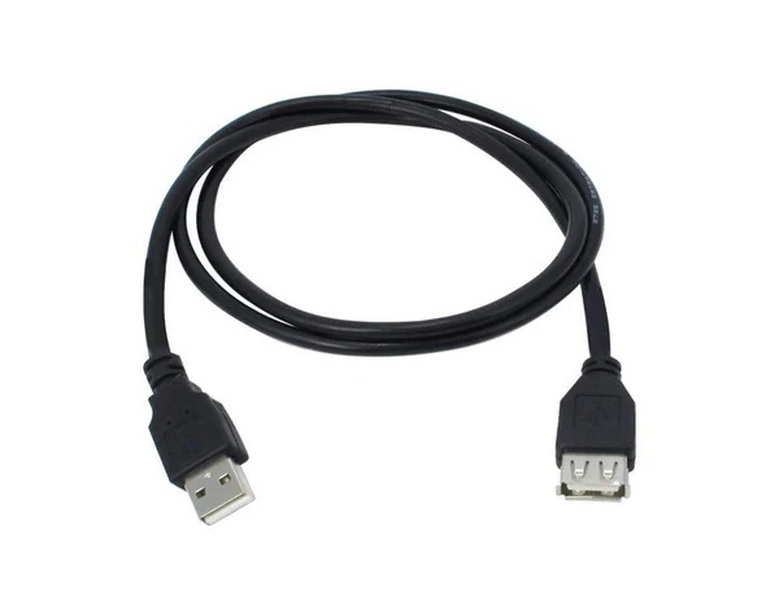

- USB Cable (Shielded): This can be salvaged from an old USB cable or purchased separately. Shielded cables are recommended to reduce electromagnetic interference.
- Soldering Iron and Solder: For connecting wires securely.
- Wire Stripper and Cutter: For preparing the wires.
- Heat Shrink Tubing or Electrical Tape: To insulate and protect the connections.
Step-by-Step Guide to Extending a Micro USB Cable
Step 1: Prepare the Micro USB Connectors
First, you need to prepare your micro USB connectors. If you are using a pre-made cable, you can skip this step. However, if you are modifying an existing cable, you will need to remove the existing connectors carefully to avoid damaging the wires.
Step 2: Cut and Prepare the USB Cable

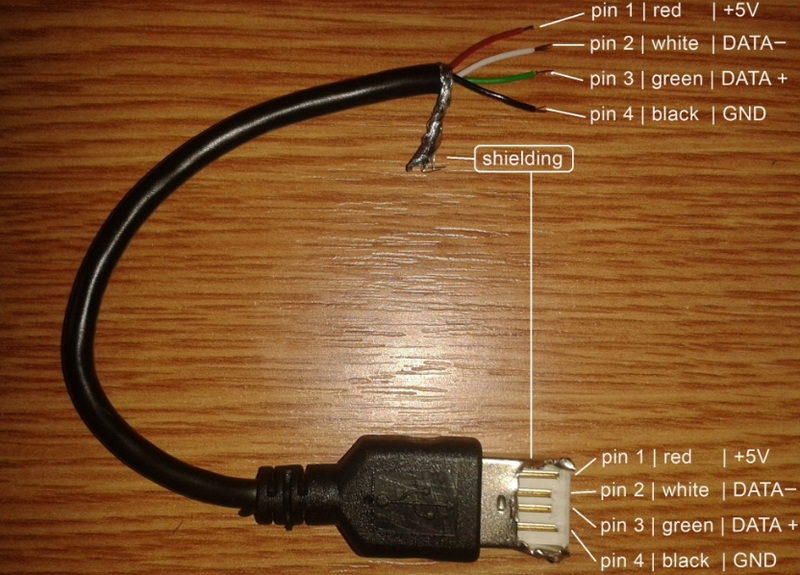

Cut the USB cable to the desired length for your extension. Use a wire stripper to remove the outer insulation, exposing the internal wires. Typically, a USB cable has four wires: red (5V), black (ground), white (data-), and green (data+). Some cables may also include a thicker black wire for shielding, which helps protect against electromagnetic interference.
Step 3: Solder the Wires to the Connectors
Solder each wire to the appropriate terminal on the micro USB connectors. Ensure that the connections are secure and not mixed up. The pinout for a micro USB connector is as follows:
- Pin 1: VCC (5V)
- Pin 2: Data-
- Pin 3: Data+
- Pin 4: ID (for OTG, not used in standard micro USB)
- Pin 5: Ground
It's crucial to match the wires correctly to avoid damaging your device or the cable.
Step 4: Insulate and Protect the Connections
Use heat shrink tubing or electrical tape to insulate and protect the soldered connections. This step is crucial to prevent short circuits and ensure durability. Heat shrink tubing provides a more professional finish and better protection against moisture.
Step 5: Test the Cable
Once you have completed the extension, test it by connecting it to a device and checking if it functions correctly. This includes both charging and data transfer to ensure all connections are working as expected.
Considerations for Signal Integrity

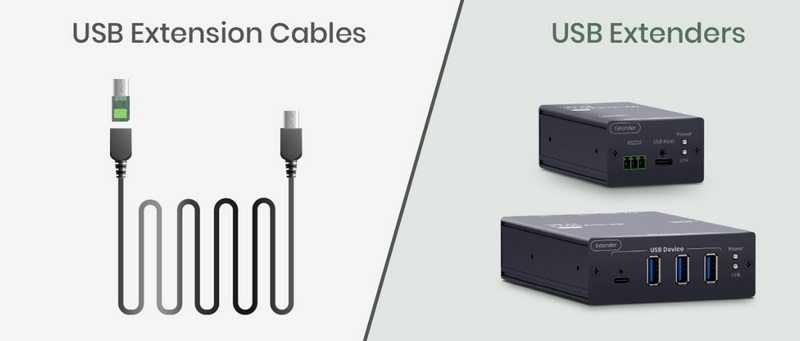

When extending USB cables, it's important to consider signal integrity. USB cables have length limitations due to signal degradation over distance. For USB 2.0, the maximum recommended length is 5 meters, while for USB 3.0, it is 3 meters. If you need to extend beyond these lengths, consider using active USB cables or repeaters. Active cables contain amplifiers that boost the signal, allowing for longer extensions without significant signal loss.
Common Issues and Solutions
During the extension process, you might encounter a few common issues:
- Poor Soldering: Ensure that your soldering iron is at the right temperature, and use the correct amount of solder to avoid creating cold joints.
- Incorrect Wire Connections: Double-check the wire connections to ensure they match the micro USB pinout.
- Interference: Use shielded cables to minimize electromagnetic interference.
Safety Precautions
When working with electrical components, safety is paramount:
- Use Protective Gear: Wear safety glasses and gloves when soldering.
- Avoid Overheating: Keep the soldering iron away from flammable materials and avoid overheating the components.
- Work in a Well-Ventilated Area: Solder fumes can be hazardous; ensure good ventilation.
Applications of Extended Micro USB Cables
Extended micro USB cables can be useful in various scenarios:
- Home Entertainment Systems: For connecting devices that are far from the power source or USB ports.
- Outdoor Events: For extending connections in outdoor settings where devices need to be placed at a distance.
- Workshops and Labs: For providing flexibility in workspaces where devices need to be moved around frequently.
Conclusion
Extending a micro USB cable is a straightforward DIY project that can enhance the usability of your devices. By following the steps outlined above and using the right materials, you can create a reliable extension cable. Remember to test your cable thoroughly to ensure it works as expected. Always consider signal integrity and safety precautions when working with electrical components.
Frequently Asked Questions
1. What is the maximum length I can extend a micro USB cable?
The maximum length depends on the type of USB. For USB 2.0, it is generally 5 meters, while for USB 3.0, it is 3 meters. Beyond these lengths, signal quality may degrade.
2. How do I ensure signal integrity when extending a USB cable?
To maintain signal integrity, use shielded cables and avoid extending beyond the recommended lengths. If longer extensions are needed, consider using active cables or repeaters.
3. What tools do I need to extend a micro USB cable?
You will need a soldering iron, solder, wire stripper, cutter, and heat shrink tubing or electrical tape.
4. Can I use any type of USB cable for extension?
It's best to use a shielded USB cable to prevent interference and ensure reliable data transfer.
5. How do I protect the soldered connections?
Use heat shrink tubing or electrical tape to insulate and protect the connections from short circuits.
