Views: 222 Author: Tina Publish Time: 2025-03-04 Origin: Site
Content Menu
● Introduction to USB and Coaxial Cables
>> Steps to Connect USB to Coaxial Cable
>> Audio Quality and Resolution
● FAQ
>> 1. What is the purpose of a USB to coaxial adapter?
>> 2. What types of applications use USB to coaxial adapters?
>> 3. How do I choose the right USB to coaxial adapter?
>> 4. Why is impedance important in coaxial cables?
>> 5. Can I use any USB cable with a USB to coaxial adapter?
Connecting a USB device to a coaxial cable is a common requirement for various applications, such as audio transmission or video signal distribution. This process often involves using adapters or converters to bridge the gap between these two different types of interfaces. In this article, we will explore the steps and tools needed to achieve this connection.
Before diving into the connection process, it's essential to understand the basics of both USB and coaxial cables.

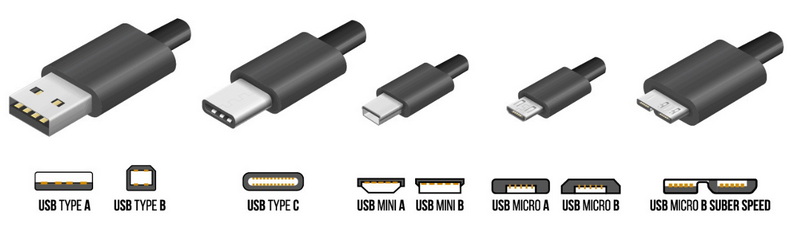

- USB Cables: These are widely used for data transfer and charging between devices. USB cables come in various types, including USB-A, USB-B, and the newer USB-C, which supports faster data transfer rates and reversible connections. USB-C, in particular, has become popular due to its versatility and speed, making it an ideal choice for modern devices.
- Coaxial Cables: These cables are primarily used for transmitting audio and video signals. They consist of a central copper wire surrounded by insulation, a braided shield, and an outer jacket. Coaxial cables are known for their ability to carry high-frequency signals over long distances with minimal interference, making them ideal for applications where signal integrity is crucial.
To connect a USB device to a coaxial cable, you will typically need a USB to coaxial adapter or converter. These devices convert the digital signal from the USB port into a format that can be transmitted through a coaxial cable.
These adapters are specifically designed to convert USB signals into coaxial signals. They are often used in audio applications, such as connecting a computer to an older DAC (Digital-to-Analog Converter) or amplifier that only has a coaxial input.

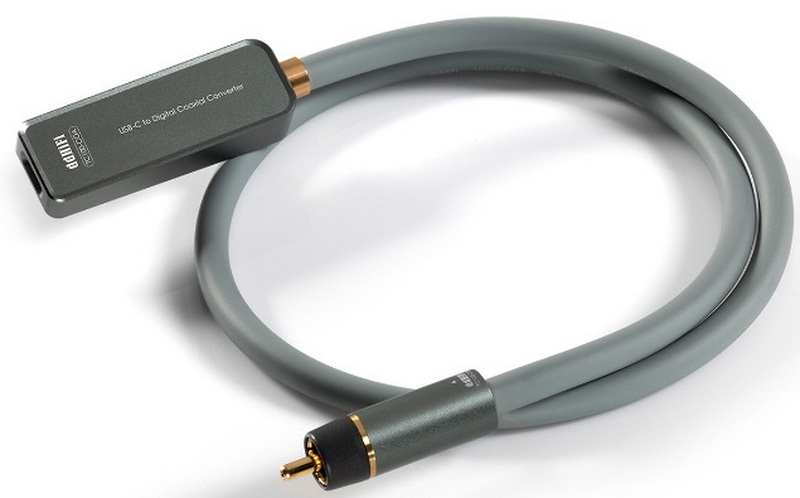

Example of a USB-C to Coaxial Adapter:
The DD TCA100-COA is a high-quality USB-C to coaxial adapter that supports PCM audio streams up to 24bit 192kHz. It uses 99.9999% pure OCC copper for the coaxial cable center conductor, ensuring a constant impedance of 75Ω, which is crucial for coaxial transmission.
1. Acquire the Necessary Adapter: Purchase a USB to coaxial adapter that matches your specific needs, such as a USB-C to coaxial adapter if you are using a newer device with a USB-C port.
2. Connect the USB End: Plug the USB end of the adapter into your computer or other USB-enabled device.
3. Connect the Coaxial End: Attach the coaxial end of the adapter to your device with a coaxial input, such as a DAC or amplifier.
4. Configure Your Device: Ensure that your computer or device is set to output audio through the USB port. You may need to select the USB input on your DAC or amplifier.
USB to coaxial adapters are commonly used in home audio systems, professional audio setups, and even in some video applications.
- Home Audio Systems: These adapters allow you to connect your computer or smartphone to an older audio system that only supports coaxial inputs, enabling you to stream music from modern devices to traditional audio equipment. This is particularly useful for those who want to upgrade their listening experience without replacing their entire audio setup.
- Professional Audio Setups: In professional audio environments, these adapters can be crucial for connecting digital audio workstations to older equipment that lacks USB inputs. This ensures seamless integration of modern digital tools with legacy hardware, maintaining high-quality audio output.
If you encounter issues with your connection, here are some troubleshooting tips:
- Check the Adapter Compatibility: Ensure that the adapter is compatible with both your USB device and the coaxial input device. Incompatibility can lead to poor signal quality or no signal at all.
- Inspect the Cables: Verify that all cables are securely connected and not damaged. A loose connection or damaged cable can cause signal loss or interference.
- Adjust Settings: Make sure that your device is configured to output audio through the USB port. Sometimes, the default output might be set to a different port, such as HDMI or analog audio.
When working with USB to coaxial adapters, it's also important to consider the quality of the adapter itself. High-quality adapters will provide better signal integrity and support higher audio resolutions, which is crucial for applications where sound quality is paramount.
The audio quality supported by the adapter is a critical factor. For audiophiles, adapters that support high-resolution audio formats like 24bit 192kHz are essential for maintaining the fidelity of the audio signal. This ensures that the audio output is as close to the original recording as possible, providing a more immersive listening experience.
Signal integrity is another key consideration. The adapter should maintain a consistent impedance of 75Ω to prevent signal degradation. This is particularly important in professional audio applications where even slight signal loss can affect the overall quality of the audio output.
Connecting a USB device to a coaxial cable is a straightforward process when using the right adapter. By understanding the types of adapters available and following the steps outlined above, you can successfully bridge the gap between these two technologies. Whether you're enhancing your home audio setup or working in a professional audio environment, these adapters provide a versatile solution for integrating modern devices with legacy equipment.
- A USB to coaxial adapter is used to convert digital signals from a USB port into a format that can be transmitted through a coaxial cable, allowing devices with only coaxial inputs to connect to modern USB-enabled devices.
- These adapters are commonly used in home audio systems, professional audio setups, and some video applications where coaxial inputs are required.
- Choose an adapter that matches your USB type (e.g., USB-C, USB-A) and supports the necessary audio quality (e.g., 24bit 192kHz).
- Impedance, typically 75Ω for coaxial cables, is crucial for maintaining signal integrity and preventing interference during transmission.
- While any USB cable can physically connect to the adapter, ensure it supports the required data transfer speed for your application.
