Introduction
In today's digital age, USB-C has become the go-to connector for a wide range of devices, from smartphones and laptops to external hard drives and monitors. This versatile cable offers faster data transfer speeds, improved power delivery, and a reversible design that makes connecting devices easier than ever before. In this comprehensive guide, we'll explore everything you need to know about connecting USB-C cables to your computer, including the benefits, different types of USB-C connections, and step-by-step instructions for various scenarios.
Understanding USB-C Technology
USB-C, also known as USB Type-C, is a 24-pin connector that has revolutionized the way we connect devices. It offers several advantages over its predecessors:
1. Reversible design: The symmetrical connector can be plugged in either way, eliminating the frustration of trying to insert it correctly.
2. Faster data transfer: USB-C supports USB 3.1 and USB 4 protocols, allowing for data transfer speeds up to 40 Gbps.
3. Improved power delivery: USB-C can deliver up to 100W of power, enabling fast charging and the ability to power larger devices.
4. Versatility: A single USB-C port can handle multiple functions, including data transfer, video output, and power delivery.
Types of USB-C Cables and Their Uses
Before connecting your USB-C cable, it's essential to understand the different types available and their specific uses:
USB 2.0 Type-C Cable
- Data Transfer Speed: Up to 480 Mbps
- Use Cases: Basic charging and data transfer for smartphones, tablets, and some peripherals
USB 3.0 Type-C Cable
- Data Transfer Speed: Up to 5 Gbps
- Use Cases: Connecting external storage devices, high-speed data transfer, and charging
USB 3.1 Gen 2 Type-C Cable
- Data Transfer Speed: Up to 10 Gbps
- Use Cases: High-speed data transfer, connecting 4K displays, and fast charging
Thunderbolt 3 and 4 Cables
- Data Transfer Speed: Up to 40 Gbps
- Use Cases: Connecting external GPUs, high-resolution displays, and daisy-chaining multiple devices
Connecting USB-C Devices to Your Computer
Now that we understand the basics of USB-C technology, let's explore how to connect various USB-C devices to your computer.
Connecting a USB-C Smartphone or Tablet

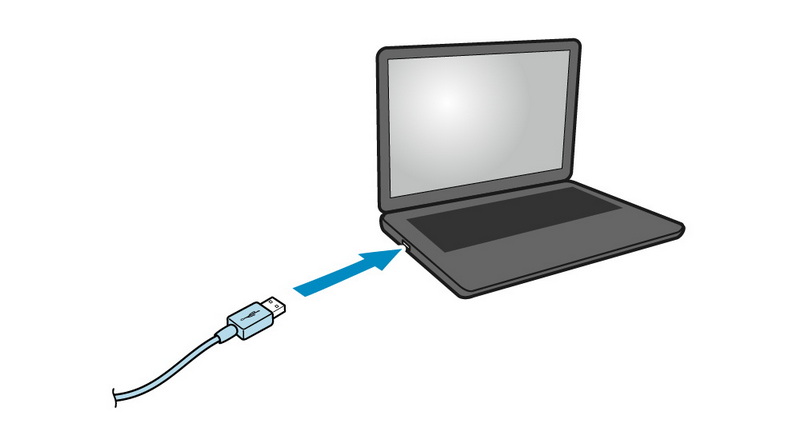

1. Locate the USB-C port on your computer. It's typically a small, oval-shaped port.
2. Take your USB-C cable and insert one end into the USB-C port on your computer.
3. Connect the other end of the cable to your smartphone or tablet's USB-C port.
4. Your device should now be recognized by your computer, allowing for data transfer and charging.
Connecting a USB-C External Hard Drive
1. Ensure your computer is powered on and logged in.
2. Locate the USB-C port on your computer.
3. Connect one end of the USB-C cable to your computer's USB-C port.
4. Attach the other end to the USB-C port on your external hard drive.
5. Wait for your computer to recognize the device. You may see a notification or hear a sound indicating successful connection.
6. Open File Explorer (Windows) or Finder (Mac) to access the files on your external drive.
Connecting a USB-C Monitor
1. Identify the USB-C port on your computer and monitor.
2. Connect one end of the USB-C cable to your computer's USB-C port.
3. Attach the other end to the USB-C port on your monitor.
4. Turn on your monitor.
5. Your computer should automatically detect the monitor. If not, go to your display settings to configure the new display.

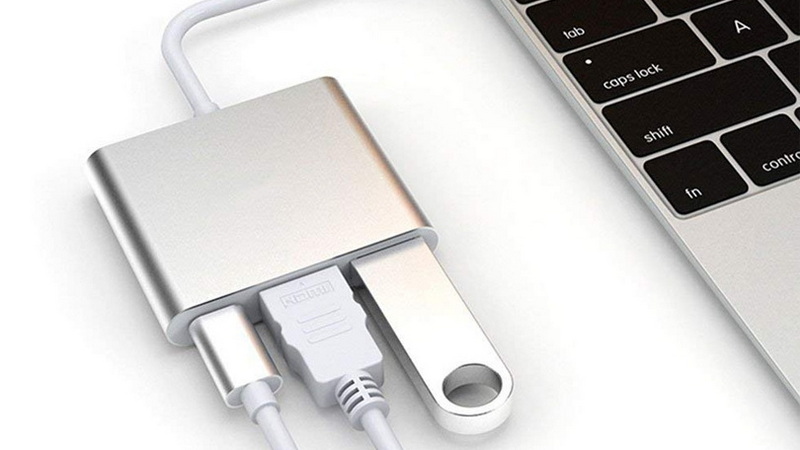

Using a USB-C Docking Station
USB-C docking stations can expand your computer's connectivity options, allowing you to connect multiple devices through a single USB-C port.
1. Connect the USB-C cable from the docking station to your computer's USB-C port.
2. Plug in the power adapter for the docking station if required.
3. Connect your peripherals (monitors, keyboards, mice, etc.) to the appropriate ports on the docking station.
4. Your computer should recognize the connected devices automatically.
Troubleshooting USB-C Connections
If you're experiencing issues with your USB-C connection, try these troubleshooting steps:
1. Check cable orientation: Although USB-C is reversible, ensure the cable is fully inserted on both ends.
2. Try a different USB-C port: If your computer has multiple USB-C ports, try connecting to a different one.
3. Update drivers: Ensure your computer's USB drivers are up to date.
4. Restart your devices: Sometimes, a simple restart can resolve connection issues.
5. Check for debris: Inspect the USB-C ports on both your computer and device for any debris or damage.
USB-C Power Delivery and Charging
One of the most significant advantages of USB-C is its ability to deliver power efficiently. USB Power Delivery (USB PD) allows for faster charging and the ability to power larger devices.
Fast Charging Your Devices
To take advantage of fast charging:
1. Use a USB-C cable and charger that support USB PD.
2. Connect your device to the USB-C charger.
3. Your device should automatically negotiate the optimal charging speed.
Powering Laptops with USB-C
Many modern laptops can be charged via USB-C:
1. Ensure your laptop supports USB-C charging.
2. Connect a USB-C charger that meets your laptop's power requirements.
3. Plug the charger into your laptop's USB-C port.
The Future of USB-C
As technology continues to evolve, USB-C is poised to become even more prevalent and capable. Some future developments to look out for include:
1. Increased adoption across all device categories
2. Higher power delivery capabilities
3. Faster data transfer speeds with USB 4 and beyond
4. Enhanced video output capabilities
Conclusion
Connecting USB-C cables to your computer opens up a world of possibilities, from faster data transfer and charging to simplified connectivity for a wide range of devices. By understanding the different types of USB-C cables, their capabilities, and how to properly connect them, you can make the most of this versatile technology. As USB-C continues to evolve and become more widespread, it's clear that it will play an increasingly important role in our digital lives.
Frequently Asked Questions (FAQ)
1. What is the maximum length for a USB-C cable?
The maximum length for a USB-C cable depends on the USB standard it supports:
- USB 2.0: Up to 4 meters (13.2 feet)
- USB 3.0/3.1 Gen 1: Up to 2 meters (6.6 feet)
- USB 3.1 Gen 2: Up to 1 meter (3.3 feet)
For longer distances, you may need to use active cables or repeaters.
2. Can I use a USB-C cable to connect my phone to my TV?

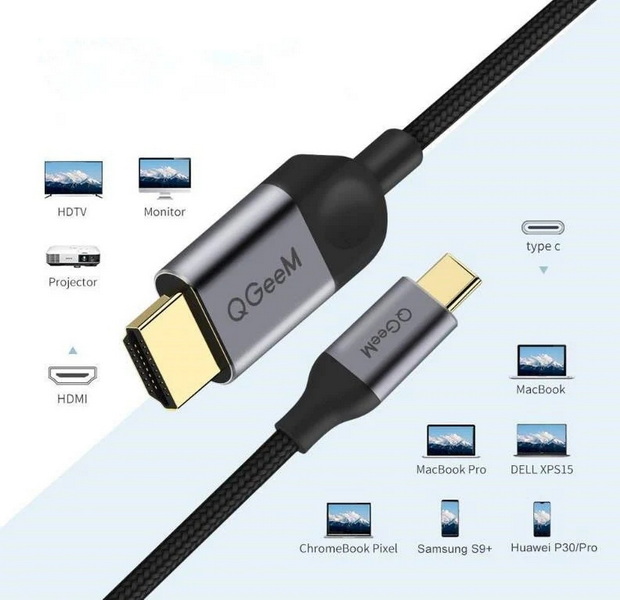

Yes, you can connect your phone to a TV using a USB-C cable, provided both devices support video output over USB-C. Some phones and TVs support USB-C Alt Mode, which allows video transmission. Alternatively, you can use a USB-C to HDMI adapter for broader compatibility.
3. Are all USB-C cables created equal?
No, not all USB-C cables are created equal. They can vary in terms of data transfer speeds, power delivery capabilities, and additional features like video output support. It's essential to choose a cable that meets your specific needs and is compatible with your devices.
4. Can I charge my laptop with any USB-C charger?
While many laptops can be charged via USB-C, not all USB-C chargers will work. Laptops often require higher wattage chargers (45W, 60W, or even 100W) compared to smartphones. Always check your laptop's power requirements and use a compatible USB-C charger to ensure safe and efficient charging.
5. How can I tell if my computer has a USB-C port?
USB-C ports are oval-shaped and symmetrical, unlike older USB ports. They are typically smaller than USB-A ports and can be found on the sides or back of your computer. If you're unsure, consult your computer's manual or specifications online to confirm the presence and location of USB-C ports.
