Introduction
USB (Universal Serial Bus) cables have become an essential part of our daily lives, connecting various devices and enabling data transfer and power supply. However, there are situations where you might need to connect two USB cables together. This comprehensive guide will walk you through the process, exploring different methods, precautions, and potential applications.

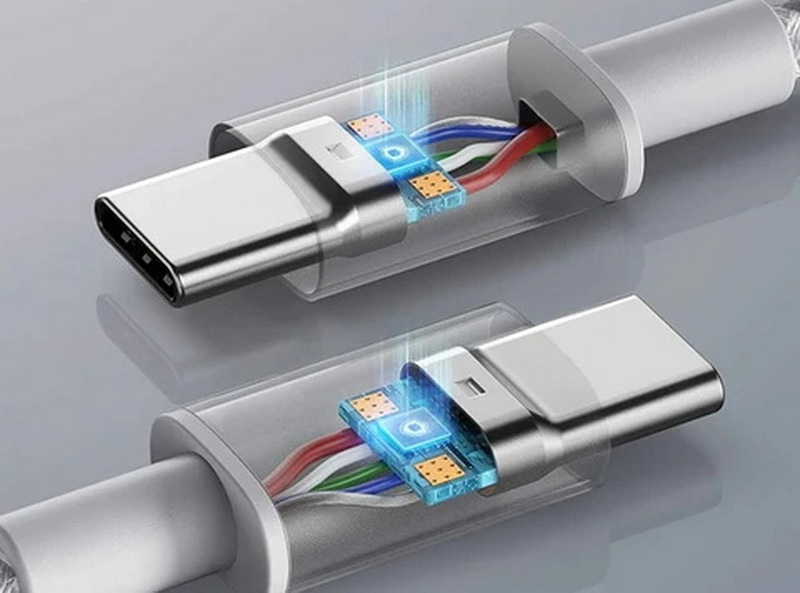

Understanding USB Cables
Before diving into the connection methods, it's crucial to understand the basics of USB cables. USB cables typically consist of four wires:
1. Red: +5V (power)
2. Black: Ground
3. White: Data- (negative)
4. Green: Data+ (positive)
These wires are responsible for carrying power and data between devices. The color coding may vary depending on the manufacturer, but the functionality remains the same.
Methods to Connect Two USB Cables

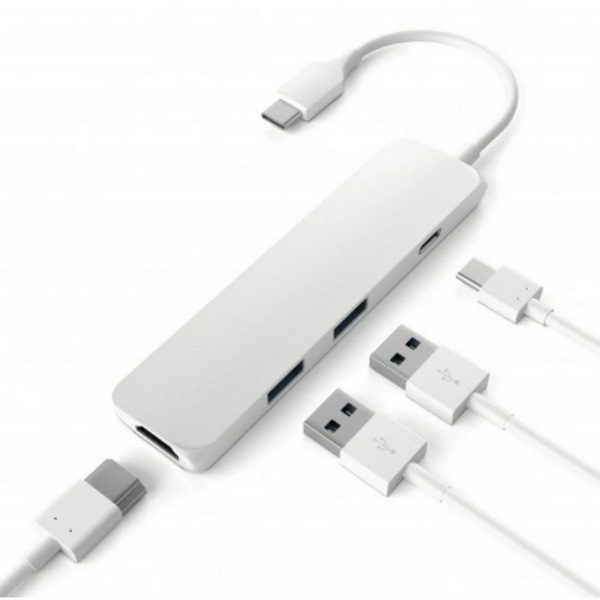

1. Using a USB Hub
The simplest and safest way to connect two USB cables is by using a USB hub. A USB hub acts as a central point that allows multiple USB devices to connect to a single USB port.
Steps:
1. Choose a suitable USB hub based on your requirements (number of ports, power supply, etc.).
2. Connect the USB hub to your computer or power source.
3. Plug the two USB cables you want to connect into the available ports on the hub.
Advantages:
- Easy to use
- No technical skills required
- Maintains data integrity and power distribution
Disadvantages:
- Requires an additional device (the hub)
- May introduce slight latency in data transfer

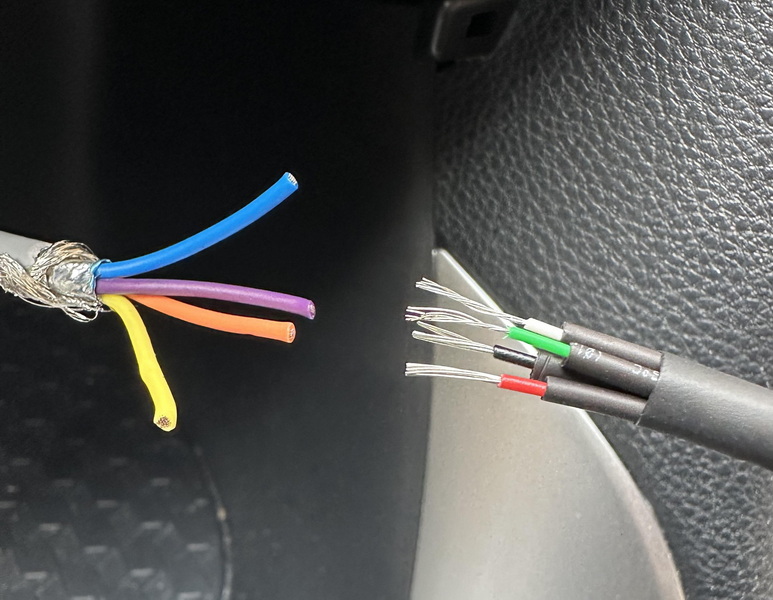

2. Soldering USB Cables
For those comfortable with electronics and soldering, directly connecting two USB cables through soldering is an option. However, this method requires careful attention to detail and should only be attempted by those with experience.
Steps:
1. Strip the outer insulation of both USB cables to expose the inner wires.
2. Identify the corresponding wires (power, ground, data+ and data-) in both cables.
3. Carefully solder the matching wires together.
4. Insulate each connection with heat shrink tubing or electrical tape.
5. Cover the entire connection with a larger piece of heat shrink tubing for protection.
Advantages:
- Direct connection without additional devices
- Can be customized for specific needs
Disadvantages:
- Requires technical skills and tools
- Voids warranty of the cables
- Risk of damaging the cables or connected devices if done incorrectly
3. Using a USB Coupler
A USB coupler is a small adapter that allows you to connect two USB cables end-to-end. This method is useful for extending the length of a USB connection.
Steps:
1. Purchase a USB coupler that matches your USB cable type (e.g., USB-A to USB-A).
2. Connect one USB cable to one end of the coupler.
3. Connect the second USB cable to the other end of the coupler.
Advantages:
- Simple to use
- No technical skills required
- Maintains data integrity
Disadvantages:
- Limited to extending cable length
- May introduce signal degradation over long distances
4. Custom USB Splitter Cable
For more advanced users, creating a custom USB splitter cable can provide a tailored solution for specific needs.
Steps:
1. Obtain a USB cable and two USB female connectors.
2. Cut the USB cable in half and strip the ends to expose the wires.
3. Solder the power and ground wires to both female connectors.
4. For data lines, use diodes to create a simple multiplexer circuit.
5. Solder the data lines with the diodes to the female connectors.
6. Insulate all connections and encase the circuit in a suitable enclosure.
Advantages:
- Customizable for specific requirements
- Can potentially support multiple devices
Disadvantages:
- Requires advanced technical skills
- May not support all USB functionalities
- Risk of damaging connected devices if designed incorrectly
Precautions and Considerations
When connecting USB cables, keep the following precautions in mind:
1. Power Management: Ensure that the power requirements of connected devices are met. Avoid overloading USB ports.
2. Data Integrity: Be aware that some methods may affect data transfer speeds or integrity.
3. Device Compatibility: Not all devices may work correctly with custom USB connections.
4. Safety: Always disconnect cables from power sources before attempting any modifications.
5. Warranty: Modifying USB cables may void warranties on both the cables and connected devices.
Applications of Connecting USB Cables
Connecting USB cables can be useful in various scenarios:
1. Extending USB Range: When a single cable isn't long enough to reach the desired location.
2. Creating Custom Setups: For unique projects or specialized equipment configurations.
3. Charging Multiple Devices: When combined with a powered USB hub, it allows charging of multiple devices from a single power source.
4. Data Transfer Between Devices: In some cases, it can facilitate direct data transfer between two devices.
Conclusion
Connecting two USB cables can be achieved through various methods, each with its own advantages and disadvantages. While using a USB hub or coupler is the safest and easiest option for most users, more advanced techniques like soldering or creating custom cables can provide tailored solutions for specific needs. Always prioritize safety and consider the potential risks before modifying any USB connections.
FAQ
1: What are the risks of connecting two USB cables incorrectly?
Incorrect connection of USB cables can lead to several risks:
- Device Damage: Improper wiring can send incorrect voltages to connected devices, potentially causing permanent damage.
- Data Loss: Incorrect data line connections can result in corrupted data transfers or loss of information.
- Short Circuits: Misconnected power and ground lines can cause short circuits, potentially damaging the cables, devices, or even the computer's USB ports.
- Fire Hazard: In extreme cases, incorrect high-power connections could pose a fire risk.
- Malfunction: Even if no immediate damage occurs, devices may not function correctly or may behave unpredictably.
2: Can I use a USB hub to connect multiple high-power devices?
Using a USB hub for multiple high-power devices requires careful consideration:
- Power Limitations: Standard USB ports typically provide 500mA (USB 2.0) or 900mA (USB 3.0) of power. High-power devices may exceed this limit.
- Powered Hubs: For multiple high-power devices, use a powered USB hub that has its own power supply.
- Device Compatibility: Ensure the hub supports the power requirements of all connected devices.
- Power Distribution: Some powered hubs may not distribute power evenly among ports. Check the hub's specifications.
- Overloading: Connecting too many high-power devices can overload the hub or the computer's USB controller.
3: Is it possible to connect USB cables of different versions?
Connecting USB cables of different versions is possible, but with some considerations:
- Backward Compatibility: USB is generally backward compatible. A USB 3.0 cable can connect to a USB 2.0 port, but will operate at USB 2.0 speeds.
- Speed Limitations: The connection will operate at the speed of the slowest component (cable, port, or device).
- Power Delivery: Newer USB versions may support higher power delivery, which may not be available when connected to older versions.

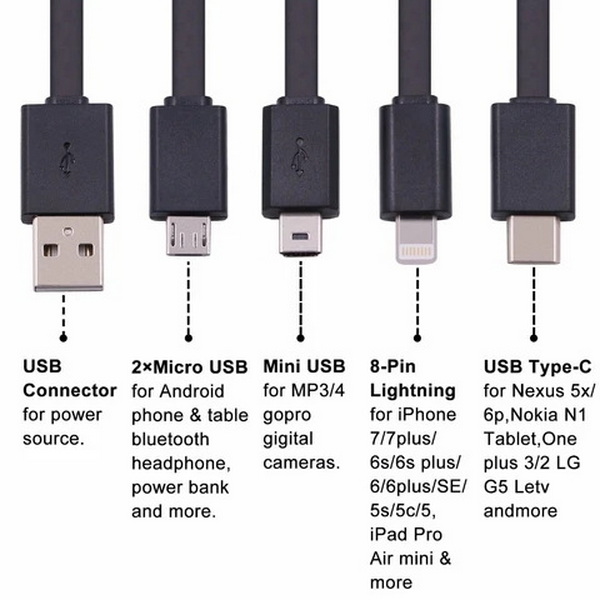

- Connector Types: While the protocols may be compatible, physical connector types (e.g., USB-A, USB-C) may differ and require adapters.
- Feature Support: Some features of newer USB versions (e.g., USB 3.0's SuperSpeed mode) won't be available when connected to older versions.
4: What should I do if my connected USB devices are not recognized?
If connected USB devices are not recognized, try the following troubleshooting steps:
- Check Connections: Ensure all cables and connectors are securely plugged in.
- Restart Devices: Turn off and unplug the devices, then reconnect and power them on.
- Try Different Ports: Connect the devices to different USB ports on your computer.
- Update Drivers: Check for and install any available driver updates for your devices.
- Check Device Manager: Look for any error indicators in the Windows Device Manager.
- Test on Another Computer: To isolate the issue, try the devices on a different computer.
- Use Powered Hub: If using a hub, ensure it's powered and can supply sufficient power to all devices.
- Check for Conflicts: Remove other USB devices to check for conflicts.
- System Update: Ensure your operating system is up to date with the latest patches and updates.
5: Are there any legal or warranty implications of modifying USB cables?
Modifying USB cables can have legal and warranty implications:
- Warranty Void: Most manufacturers' warranties are voided if cables or devices are modified.
- Safety Certifications: Modified cables may no longer comply with safety certifications (e.g., UL, CE).
- Liability: If a modified cable causes damage to devices or property, you may be held liable.
- Regulatory Compliance: Modified cables may not meet regulatory standards for electromagnetic interference.
- Product Support: Manufacturers may refuse support for issues related to modified cables.
- Resale Restrictions: Modified cables should not be sold as original or certified products.
- Workplace Policies: Some workplaces prohibit the use of modified cables due to safety and security concerns.
- Insurance Coverage: Damage caused by modified cables may not be covered by insurance policies.
