Introduction
In today's interconnected world, the ability to connect various devices and network interfaces is crucial. One common scenario is the need to connect an RJ45 Ethernet port to a USB port. This guide will walk you through the process of connecting RJ45 to USB, exploring the necessary tools, methods, and considerations.
Understanding RJ45 and USB
Before diving into the connection process, it's essential to understand what RJ45 and USB are:
RJ45 (Registered Jack 45)
RJ45 is a standardized network interface commonly used for Ethernet connections. It's the familiar rectangular connector with eight pins that you typically see on the end of Ethernet cables.
USB (Universal Serial Bus)
USB is a widely used interface for connecting various devices to computers. It comes in several versions (USB 2.0, 3.0, 3.1, etc.) and connector types (USB-A, USB-C, etc.).
Why Connect RJ45 to USB?
There are several reasons you might need to connect an RJ45 port to a USB port:
1. Laptops without Ethernet ports
2. Adding Ethernet connectivity to devices with only USB ports
3. Upgrading to faster Ethernet speeds on older devices
4. Connecting to wired networks for improved stability and speed
Methods to Connect RJ45 to USB
1. Using a USB to Ethernet Adapter

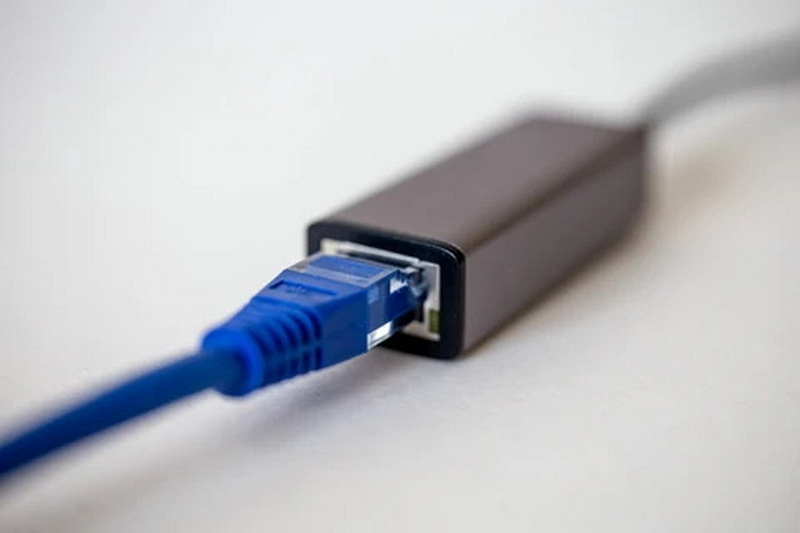

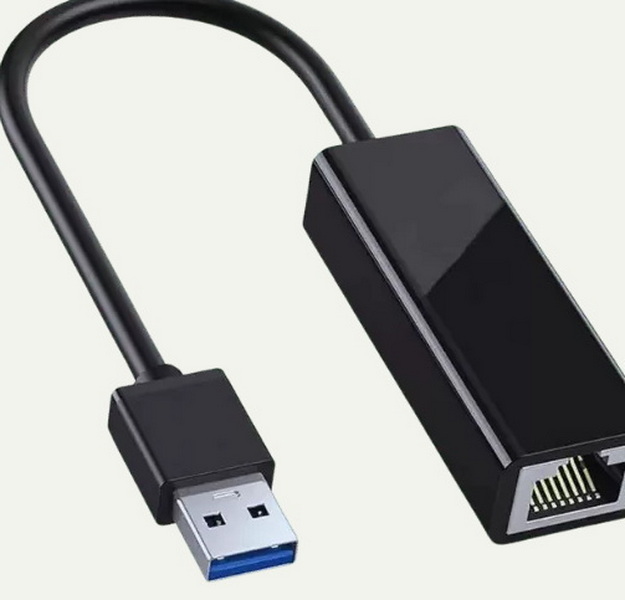

The most common and straightforward method is to use a USB to Ethernet adapter. These adapters have a USB connector on one end and an RJ45 port on the other.
Steps to use a USB to Ethernet adapter:
1. Purchase a compatible USB to Ethernet adapter
2. Plug the USB end into your device
3. Connect an Ethernet cable to the RJ45 port on the adapter
4. Connect the other end of the Ethernet cable to your network source (router, switch, etc.)
5. Install any necessary drivers (most modern operating systems will do this automatically)
6. Configure your network settings if needed

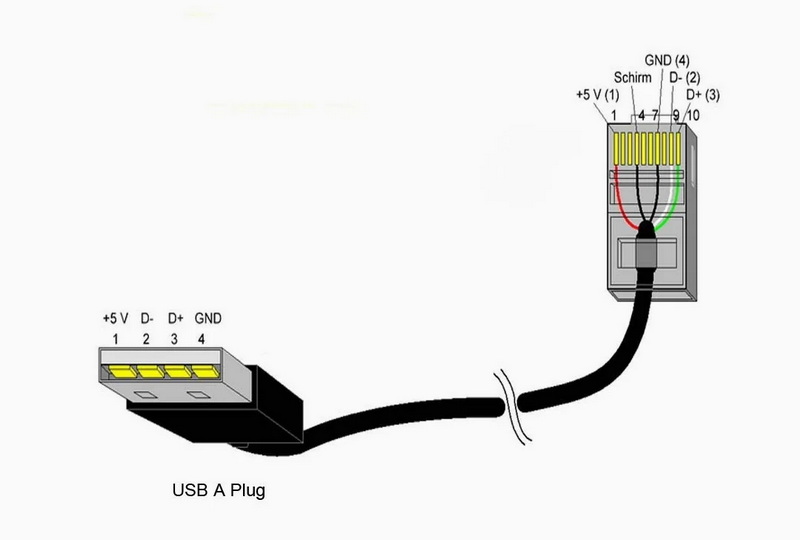

2. DIY Cable Creation
For the more technically inclined, it's possible to create a custom RJ45 to USB cable. However, this method is not recommended for beginners and should only be attempted by those with electronics experience.
Steps for DIY cable creation (for educational purposes only):
1. Obtain the necessary components (USB cable, RJ45 connector, wire strippers, soldering iron)
2. Cut one end of the USB cable and strip the wires
3. Identify the correct wires for data and power
4. Solder the appropriate wires to the RJ45 connector pins
5. Insulate the connections and assemble the RJ45 connector
Choosing the Right USB to Ethernet Adapter
When selecting a USB to Ethernet adapter, consider the following factors:
1. USB Version: Ensure the adapter is compatible with your device's USB port (e.g., USB 2.0, 3.0, or USB-C).
2. Ethernet Speed: Choose an adapter that supports the speed you need (10/100 Mbps or Gigabit).
3. Compatibility: Check if the adapter is compatible with your operating system.
4. Additional Features: Some adapters come with extra USB ports or card readers.
Installation and Configuration
Most modern operating systems will automatically recognize and install drivers for USB to Ethernet adapters. However, in some cases, you may need to install drivers manually.
Windows Installation
1. Plug in the adapter
2. Wait for Windows to attempt automatic driver installation
3. If unsuccessful, visit the manufacturer's website to download drivers
4. Install the drivers and restart your computer if prompted
macOS Installation
1. Connect the adapter
2. macOS should recognize the device automatically
3. If not, check the manufacturer's website for macOS drivers
4. Install the drivers and restart if necessary
Linux Installation
1. Many Linux distributions have built-in support for common USB to Ethernet adapters
2. If the adapter isn't recognized, you may need to compile and install drivers
3. Check the adapter manufacturer's website for Linux support
Troubleshooting Common Issues
If you encounter problems with your RJ45 to USB connection, try these troubleshooting steps:
1. Check physical connections: Ensure all cables are securely connected
2. Restart your device: Sometimes a simple restart can resolve connection issues
3. Update drivers: Make sure you have the latest drivers installed
4. Check network settings: Verify that your network settings are configured correctly
5. Try a different USB port: Some ports may provide more power or have better compatibility
6. Test with another device: This can help determine if the issue is with the adapter or your device
Use Cases and Applications
RJ45 to USB connections have various applications across different industries and scenarios:
1. Home Networking
- Connecting smart TVs or gaming consoles to wired networks
- Adding Ethernet to laptops for faster, more stable internet
2. Business and Enterprise
- Providing Ethernet connectivity to thin clients or tablets in office environments
- Connecting point-of-sale systems to wired networks for security
3. Industrial and IoT
- Connecting industrial control systems with only USB ports to Ethernet networks
- Enabling Ethernet connectivity for IoT devices in smart manufacturing
4. Education
- Adding Ethernet to Chromebooks or tablets in schools
- Connecting lab equipment to networks for data collection and analysis
Future of RJ45 and USB Connectivity
As technology evolves, we're seeing changes in how devices connect to networks:
- Increasing prevalence of USB-C: This versatile port is becoming more common and can support Ethernet adapters directly
- Wi-Fi 6 and beyond: Faster Wi-Fi standards may reduce the need for wired connections in some scenarios
- 5G and cellular connectivity: For some applications, cellular networks may replace the need for Ethernet connections
However, wired Ethernet connections are likely to remain important for their reliability, security, and speed in many contexts.
Conclusion
Connecting RJ45 to USB is a valuable skill in our increasingly connected world. Whether you're using a simple adapter or creating a custom solution, understanding the process can help you overcome connectivity challenges and make the most of your devices and networks. As technology continues to evolve, the ability to bridge different connection standards will remain an important part of networking and device management.
FAQ
1: What is the maximum length for an RJ45 to USB connection?
The maximum length depends on several factors, including the quality of the cables and adapters used. Generally, Ethernet cables can run up to 100 meters (328 feet) without signal degradation. However, when using a USB to Ethernet adapter, it's best to keep the total cable length as short as possible to ensure optimal performance.
2: Can I use an RJ45 to USB connection for Power over Ethernet (PoE)?
No, standard USB to Ethernet adapters do not support Power over Ethernet. PoE requires specific hardware to handle the power transmission. If you need PoE functionality, you'll need to use a dedicated PoE injector or switch with a standard Ethernet connection.
3: Are there any speed limitations when using an RJ45 to USB adapter?
The speed of an RJ45 to USB connection depends on both the Ethernet standard supported by the adapter and the USB version. Most USB 2.0 adapters support up to 100 Mbps, while USB 3.0 adapters can often handle Gigabit Ethernet speeds. Always check the specifications of your adapter to understand its capabilities.
4: Do I need to install drivers for an RJ45 to USB adapter on my smartphone or tablet?
It depends on the device and operating system. Many modern Android devices support USB to Ethernet adapters natively, without the need for additional drivers. iOS devices may require specific adapters that are supported by the operating system. Always check the compatibility of the adapter with your specific device and OS version.
5: Can I use an RJ45 to USB adapter to connect two computers directly?
Yes, you can use RJ45 to USB adapters to connect two computers directly. However, you'll need to configure the network settings manually on both computers, including IP addresses and subnet masks. This setup is known as a peer-to-peer or ad-hoc network. For most users, it's simpler to connect both computers to a router or switch instead.
