Introduction

Connecting two PCs can be useful for transferring files, sharing an internet connection, or even creating a small network. One of the easiest ways to achieve this is by using a USB to USB cable[1]. This article will guide you through the process, explaining the different types of cables, the necessary steps for installation, troubleshooting tips, and alternative methods for connecting two PCs.

Understanding USB to USB Cables

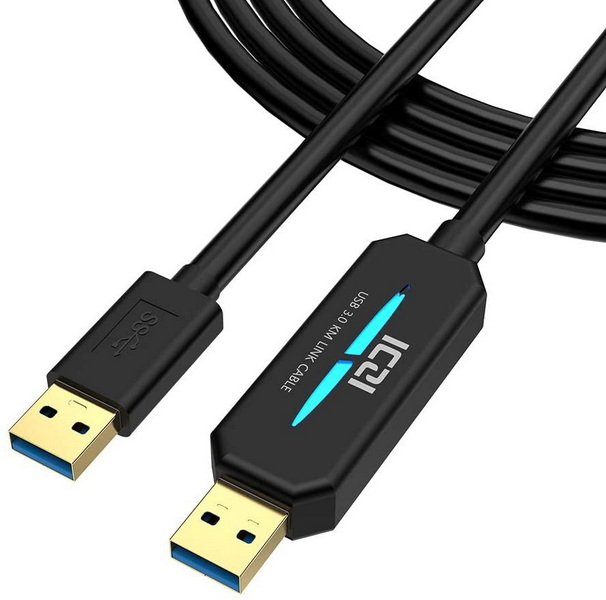

Not all USB to USB cables are created equal. The cable required for connecting two PCs is a specialized type known as a "bridged" or "USB networking cable"[1]. These cables contain a small electronic circuit in the middle that allows the two computers to communicate with each other. Standard A/A USB cables, which have two standard USB connectors at each end but lack this bridge chip, will not work for direct PC-to-PC connections[1].

Types of Working Modes

Bridged USB to USB cables typically operate in two modes[1]:

-  Link Mode: This mode functions similarly to older "lap link" cables. It comes with software that allows you to select files and drag and drop them between the two computers. Link mode is recommended for simple file transfers due to its ease of use and quick installation[1].

-  Network Mode: This mode creates a small network between the two computers. Once the network is established, you can share folders, printers, and internet access. Network mode is suitable for users who need to access resources on the other computer or share an internet connection[1].

Installation Process

The installation process may vary depending on the cable manufacturer. Generally, it involves installing programs and drivers from a CD-ROM that comes with the cable. This procedure must be performed on both computers before connecting the cable[1].

Step-by-Step Installation:

1. Install Software: Install the software and drivers from the CD-ROM on both computers. Ensure that the cable is not connected during this step[1].

2. Select Mode: Some manufacturers provide separate setup files for link mode and network mode, while others offer a single setup file for both modes. If given the option, select the desired mode during installation or within the transfer program[1].

3. Connect the Cable: After installing the drivers, connect the USB cable to both computers. Windows should recognize the cable and install the appropriate drivers automatically[1].

4. Verify Installation: Check the Device Manager to confirm that the cable is installed correctly. In Windows, right-click "My Computer," select "Properties," then "Hardware," and finally "Device Manager." The cable should be listed under "Universal Serial Bus controllers" or "Network adapters"[1]. The name may vary depending on the manufacturer.

Changing the Working Mode

To switch between link mode and network mode, you typically need to run the setup program for the other mode or select the mode change within the transfer program. This should be done with the cable disconnected. After changing the mode, reconnect the cable to allow the system to recognize it automatically[1].

Using the USB to USB Cable

Once the cable is installed, using it is relatively straightforward, depending on the chosen mode[1]:

-  Link Mode: Open the transfer program and follow the on-screen instructions to select and transfer files between the computers.

-  Network Mode: Configure both computers to use the USB cable as a network adapter. This usually involves setting up IP addresses and sharing settings.

Troubleshooting USB Connection Issues

Sometimes, USB ports may encounter problems, preventing devices from working correctly[4]. Here are some troubleshooting steps to resolve these issues:

1. Narrow Down the Problem: Try plugging the device into different USB ports on your computer to see if the problem is specific to one port[4]. Also, test with a different USB cable to rule out a faulty cable[4].

2. Check for Physical Obstructions: Examine the USB ports for any debris or grime that may be blocking the connection[4]. Use a toothpick or canned air to gently clean out the port[4].

3. Restart and Update: Restarting your computer can sometimes resolve internal errors that may be affecting the USB ports[4]. Additionally, ensure that your operating system is up to date, as driver updates are often included in system updates[4]. In Windows 10, go to Settings > Update & Security > Windows Update and click the Check for updates button[4].

4. Manage USB Controllers: Use Device Manager to scan for hardware changes[2]. If that doesn't work, disable and re-enable the USB controllers. This allows the controllers to recover the USB port from its unresponsive condition[2]. To do this, expand Universal Serial Bus controllers, right-click the first USB controller, and then click Uninstall. Repeat for each USB controller. Restart the computer, and Windows will automatically reinstall the USB controllers[2].

Alternative Methods for Connecting Two PCs

While using a USB to USB cable is a convenient option, other methods are available for connecting two PCs[1]:

-  Ethernet Cable: Connecting two computers via an Ethernet cable is a fast and reliable way to transfer files and create a network. This method requires an Ethernet cable and network adapters on both computers.

-  Wireless Network: If both computers have Wi-Fi capabilities, you can create a wireless network to share files and internet access. This method requires a wireless router or access point.

-  Cloud Storage: Services like Google Drive, Dropbox, and OneDrive allow you to upload files to the cloud and then download them on the other computer. This method requires an internet connection and a cloud storage account.

-  External Hard Drive: Copying files to an external hard drive and then transferring them to the other computer is a simple way to transfer large amounts of data.

Conclusion

Connecting two PCs using a USB to USB cable is a straightforward process that can be useful for file transfers, internet sharing, and creating small networks[1]. By understanding the different types of cables, following the installation steps, and troubleshooting common issues, you can easily establish a connection between two computers[4]. Additionally, alternative methods such as Ethernet cables, wireless networks, cloud storage, and external hard drives offer flexibility depending on your specific needs and resources[1].

FAQ

1. What type of USB cable do I need to connect two PCs?

You need a "bridged" or "USB networking cable." These cables have a small electronic circuit in the middle that allows the two computers to communicate with each other[1]. Standard A/A USB cables will not work[1].

2. How do I install the USB to USB cable?

The installation process varies depending on the cable manufacturer. Generally, it involves installing programs and drivers from a CD-ROM that comes with the cable. This procedure must be performed on both computers before connecting the cable[1].

3. How do I change the working mode of the USB cable?

To switch between link mode and network mode, you typically need to run the setup program for the other mode or select the mode change within the transfer program. This should be done with the cable disconnected. After changing the mode, reconnect the cable to allow the system to recognize it automatically[1].

4. What do I do if my USB port is not working?

Try plugging the device into different USB ports[4]. Check for debris or grime in the port[4]. Restart your computer and update your operating system[4]. Use Device Manager to scan for hardware changes or disable and re-enable the USB controllers[2].

5. What are the alternative methods for connecting two PCs?

Alternative methods include using an Ethernet cable, creating a wireless network, using cloud storage, or using an external hard drive[1].
