How To Connect Led Light To Usb Cable?

Views: 222     Author: Tina     Publish Time: 2025-02-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Introduction

Understanding the Basics

>> USB Cable Basics

>> LED Basics

Materials Needed

Step-by-Step Guide

>> Step 1: Prepare the USB Cable

>> Step 2: Prepare the LED(s)

>> Step 3: Connect the Resistor

>> Step 4: Make the Connections

>> Step 5: Insulate the Connections

>> Step 6: Test Your Creation

>> Step 7: Finishing Touches

Advanced Techniques

>> Creating a USB LED Strip Light

>> Adding a Switch

>> Creating a Dimmer Circuit

Safety Considerations

Troubleshooting Common Issues

>> LEDs Not Lighting Up

>> Dim or Flickering LEDs

>> Overheating Components

Creative Applications

Conclusion

Frequently Asked Questions (FAQ)

>> 1. What type of LEDs can I use with a USB power source?

>> 2. How many LEDs can I power from a single USB port?

>> 3. Do I always need to use a resistor when connecting LEDs to USB?

>> 4. Can I use this method to power other electronic components?

>> 5. Is it safe to leave my USB LED light plugged in all the time?

Citations:

Introduction

In today's world of DIY electronics and custom lighting solutions, connecting LED lights to USB cables has become an increasingly popular project. This guide will walk you through the process of creating your own USB-powered LED light, from understanding the basics to troubleshooting common issues. Whether you're looking to add ambient lighting to your workspace or create a portable reading light, this article will provide you with the knowledge and steps to bring your project to life.

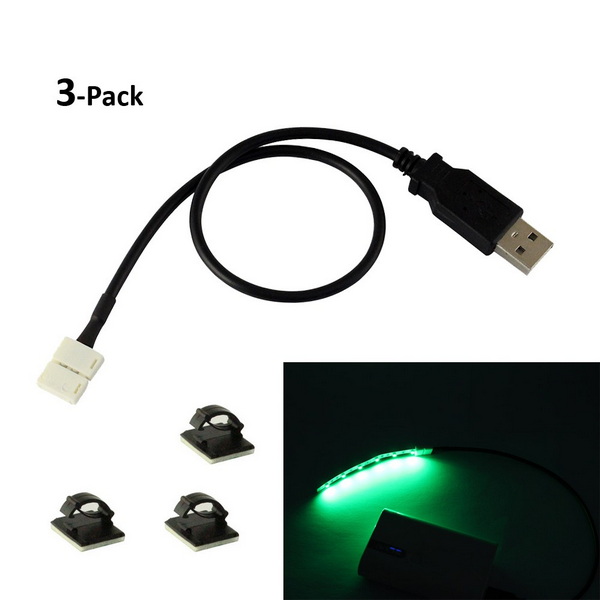

how to connect led light to usb cable_3

Understanding the Basics

Before we dive into the step-by-step process, it's essential to understand the fundamental components and concepts involved in connecting LED lights to USB cables.

USB Cable Basics

USB (Universal Serial Bus) cables typically contain four wires:

- Red wire: +5V (power)

- Black wire: Ground

- White wire: Data-

- Green wire: Data+

For our LED lighting project, we'll only be using the red (+5V) and black (ground) wires[6].

LED Basics

LEDs (Light Emitting Diodes) are semiconductor devices that emit light when an electric current passes through them. They have two leads:

- Anode (longer lead): Positive

- Cathode (shorter lead): Negative

It's crucial to connect LEDs in the correct polarity to ensure proper function.

Materials Needed

To create your USB-powered LED light, you'll need the following materials:

1. USB cable (Male Type A)

2. LED(s) or LED strip

3. Resistor(s) (value depends on LED specifications)

4. Wire strippers

5. Soldering iron and solder

6. Heat shrink tubing or electrical tape

7. Scissors

8. Optional: LED holder or enclosure

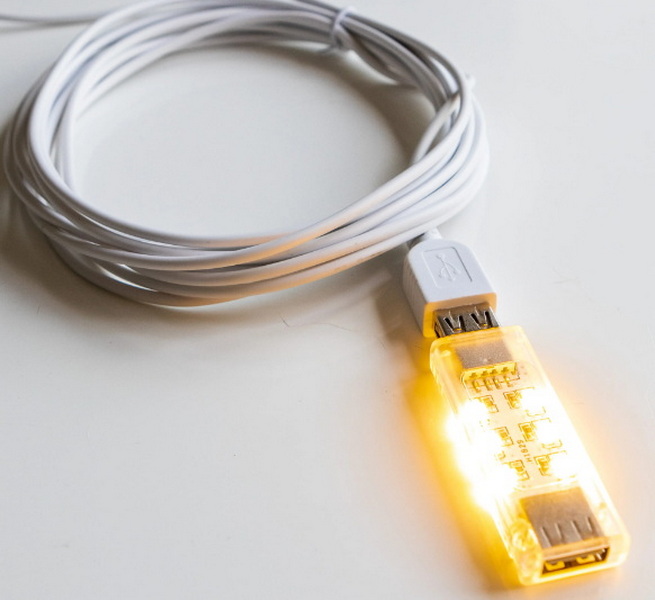

how to connect led light to usb cable_4

Step-by-Step Guide

Now that we have our materials ready, let's go through the process of connecting LED lights to a USB cable.

Step 1: Prepare the USB Cable

1. Cut the USB cable to your desired length, measuring from the male Type A end[1].

2. Strip about 1 inch (2.5 cm) of the outer insulation to reveal the inner wires.

3. Identify the red (+5V) and black (ground) wires.

4. Cut off the green and white data wires, as we won't be using them for this project.

5. Strip about 1/4 inch (6 mm) of insulation from the red and black wires[1].

Step 2: Prepare the LED(s)

If you're using individual LEDs:

1. Identify the anode (longer lead) and cathode (shorter lead) of each LED.

2. If using multiple LEDs, decide whether you want to connect them in series or parallel.

If you're using an LED strip:

1. Cut the strip to your desired length, making sure to cut along the designated cutting lines.

2. Identify the positive and negative terminals on the strip.

Step 3: Connect the Resistor

1. Calculate the appropriate resistor value based on your LED specifications and the 5V USB power supply.

2. Solder one end of the resistor to the anode (positive lead) of the LED or the positive terminal of the LED strip[3].

Step 4: Make the Connections

1. Solder the free end of the resistor to the red (+5V) wire of the USB cable.

2. Solder the cathode (negative lead) of the LED or the negative terminal of the LED strip to the black (ground) wire of the USB cable[3].

Step 5: Insulate the Connections

1. Use heat shrink tubing or electrical tape to cover and insulate all exposed connections.

2. This step is crucial for safety and to prevent short circuits[3].

Step 6: Test Your Creation

1. Carefully plug the USB connector into a USB port or power bank.

2. If everything is connected correctly, your LED(s) should light up[5].

Step 7: Finishing Touches

1. If desired, insert your LED into an LED holder or create a custom enclosure for your project.

2. For added flexibility, you can incorporate a wire coat hanger into your design to make the light adjustable[3].

Advanced Techniques

Once you've mastered the basics, you can explore more advanced techniques to enhance your USB LED light projects.

Creating a USB LED Strip Light

LED strips offer a great way to create longer runs of light with minimal effort. Here's how to connect an LED strip to a USB cable:

1. Cut the LED strip to your desired length.

2. Identify the positive and negative terminals on the strip.

3. Solder the red USB wire to the positive terminal of the LED strip.

4. Solder the black USB wire to the negative terminal of the LED strip.

5. Insulate the connections with heat shrink tubing or electrical tape.

Adding a Switch

To control your USB LED light without unplugging it, you can add a simple switch:

1. Cut the red (+5V) wire of the USB cable.

2. Solder one end of the switch to one side of the cut wire.

3. Solder the other end of the switch to the other side of the cut wire.

4. When the switch is closed, the circuit will be complete, and the LED(s) will light up.

Creating a Dimmer Circuit

For adjustable brightness, you can incorporate a potentiometer into your design:

1. Connect a potentiometer in series with your LED(s).

2. Wire the potentiometer between the red USB wire and the LED's anode.

3. By adjusting the potentiometer, you can control the current flowing to the LED(s), thus changing their brightness.

how to connect led light to usb cable_2

Safety Considerations

When working with electrical projects, safety should always be your top priority. Here are some important safety tips to keep in mind:

1. Always unplug the USB cable before making any modifications or adjustments to your circuit.

2. Use appropriate insulation techniques to prevent short circuits.

3. Be cautious when handling soldering irons and other hot tools.

4. Ensure proper ventilation when soldering to avoid inhaling fumes.

5. Double-check your connections before plugging in your device.

Troubleshooting Common Issues

Even with careful planning and execution, you may encounter some issues. Here are some common problems and their solutions:

LEDs Not Lighting Up

- Check the polarity of your LED connections.

- Ensure the resistor value is correct for your LED(s).

- Verify that the USB port is providing power.

Dim or Flickering LEDs

- Check for loose connections.

- Ensure the resistor value isn't too high.

- Verify that the USB port can provide sufficient current for your setup.

Overheating Components

- Check for short circuits.

- Ensure you're using the correct resistor value.

- Verify that you're not exceeding the current capacity of your USB port.

Creative Applications

Now that you know how to connect LED lights to USB cables, the possibilities for creative applications are endless. Here are some ideas to inspire your next project:

1. Ambient Lighting: Create a soft, colorful glow behind your computer monitor or TV.

2. Portable Reading Light: Design a compact, USB-powered reading light for late-night book sessions.

3. Mood Lighting: Build a color-changing LED setup to set the perfect atmosphere in any room.

4. Emergency Lighting: Craft a reliable, USB-powered emergency light for power outages.

5. Keyboard Illumination: Design a custom lighting solution to illuminate your keyboard in low-light conditions.

Conclusion

Connecting LED lights to USB cables opens up a world of possibilities for custom lighting solutions. By following this comprehensive guide, you've learned the basics of USB and LED technology, step-by-step instructions for creating your own USB-powered LED light, advanced techniques for more complex projects, and important safety considerations.

Remember that practice makes perfect, and don't be afraid to experiment with different designs and configurations. As you become more comfortable with the process, you'll be able to create increasingly sophisticated and creative lighting projects.

how to connect led light to usb cable_1

Frequently Asked Questions (FAQ)

1. What type of LEDs can I use with a USB power source?

Most standard LEDs can be powered by a USB source, which provides 5V. However, it's essential to use appropriate resistors to limit the current and prevent damaging the LEDs. LED strips designed for 5V operation are also compatible with USB power.

2. How many LEDs can I power from a single USB port?

The number of LEDs you can power depends on the current draw of each LED and the maximum current output of your USB port. A standard USB 2.0 port provides up to 500mA, while USB 3.0 can provide up to 900mA. Calculate the total current draw of your LEDs and ensure it doesn't exceed the USB port's capacity.

3. Do I always need to use a resistor when connecting LEDs to USB?

Yes, using a resistor is crucial when connecting LEDs to a USB power source. The resistor limits the current flowing through the LED, preventing damage and ensuring proper operation. The appropriate resistor value depends on the LED specifications and the USB voltage.

4. Can I use this method to power other electronic components?

While this guide focuses on LEDs, the same principles can be applied to power other low-voltage electronic components. However, always ensure that the component is compatible with the 5V USB power supply and that you use appropriate current-limiting components if necessary.

5. Is it safe to leave my USB LED light plugged in all the time?

Generally, it's safe to leave a properly constructed USB LED light plugged in continuously. However, it's good practice to unplug it when not in use to conserve energy and prolong the life of the components. Always ensure your project is well-insulated and free from short circuits before leaving it plugged in for extended periods.
