How To Connect A Printer Using Usb Cable?

Content Menu

● Introduction

● Why Use a USB Cable?

● What You'll Need

● Step-by-Step Guide

>> Step 1: Unboxing and Preparation

>> Step 2: Powering Up the Printer

>> Step 3: Connecting the USB Cable

>> Step 4: Installing Printer Drivers

>> Step 5: Printing a Test Page

● Advanced Configuration (Optional)

● Troubleshooting: Diving Deeper

● Conclusion

● FAQ

>> Q1: Why isn't my computer recognizing the printer after I connected it with a USB cable?

>> Q2: How do I install printer drivers if Windows doesn't automatically detect my printer?

>> Q3: Can I use any USB cable to connect my printer?

>> Q4: What should I do if my printer is printing blank pages?

>> Q5: How do I know if my USB cable is faulty?

Introduction

Connecting a printer to your computer via a USB cable is a reliable and straightforward method that establishes a direct link between the two devices. This connection method proves particularly useful when you require a stable, uninterrupted connection that doesn't depend on the sometimes fickle nature of wireless networks. This comprehensive guide offers a detailed, step-by-step approach to connecting your printer using a USB cable, complete with helpful visuals, expanded troubleshooting tips, and advanced advice for optimal performance.

Why Use a USB Cable?

Before diving into the how-to, let's delve deeper into the advantages of choosing a USB connection over wireless or network connections:

-  Reliability: USB connections are inherently more stable than wireless connections. This stability reduces the risk of print job interruptions due to signal loss, network congestion, or other wireless interference. When critical documents need to be printed flawlessly, a USB connection is your best bet.

-  Security: A direct USB connection eliminates the security vulnerabilities associated with wireless networks. Wireless networks can be susceptible to hacking and unauthorized access, potentially compromising sensitive data. With a USB connection, the data is transmitted directly between your computer and the printer, mitigating these risks.

-  Simplicity: For older printers lacking wireless capabilities or for users who prefer a no-frills setup, USB is the simplest and most direct option. It bypasses the complexities of network configuration and password management.

-  Speed: In some cases, especially with older wireless standards, a USB connection can offer faster data transfer rates than Wi-Fi. This is particularly noticeable when printing large documents or high-resolution images.

-  Cost-Effective: A USB cable is an inexpensive and readily available accessory. There are no ongoing subscription fees or service charges associated with a USB connection, unlike some cloud-based printing solutions.

What You'll Need

Let's clarify the necessary components for establishing a successful USB printer connection:

-  A Printer: The printer itself, of course. Ensure it's compatible with your operating system and supports USB connectivity.

-  A Computer (Windows or macOS): Your computer, the source of the print jobs. It must have a functional USB port.

-  A USB A-to-B Cable: This is the crucial link. Double-check that you have the correct cable type. It's a standard USB cable with a flat, rectangular USB Type-A connector for your computer and a more square-shaped USB Type-B connector for the printer. Avoid using damaged or frayed cables, as they can cause connection problems.

-  A Power Cable for the Printer: Power is essential. Ensure the printer's power cable is in good condition and properly connected to a working power outlet.

-  Printer Driver Software: This software is the translator between your computer and the printer. It enables your computer to send print commands that the printer can understand. The drivers are typically available on the manufacturer's website or may be included on a CD-ROM that came with the printer.

Step-by-Step Guide

Let's break down the connection process into manageable steps:

Step 1: Unboxing and Preparation

1. Unpack Your Printer: Carefully remove the printer from its box. Be meticulous in removing all protective coverings, tape, and packaging materials. These materials can interfere with the printer's operation and potentially damage internal components.

2. Gather Necessary Cables: Double-check that you have both the power cable and the USB A-to-B cable. Verify the USB cable's condition, looking for any signs of damage.

3. Position Your Printer: Strategically place the printer near your computer. Ensure that both devices are within easy reach of the USB cable, avoiding excessive cable stretching. A stable, level surface is crucial to prevent the printer from wobbling or vibrating during operation.

Step 2: Powering Up the Printer

1. Connect the Power Cable: Firmly plug the power cable into the designated port on the back of the printer. Then, plug the other end into a functioning power outlet. Avoid using extension cords if possible, as they can sometimes cause power fluctuations.

2. Turn On the Printer: Locate the power button, usually found on the front or top of the printer. Press it to turn on the printer. Wait patiently for the printer to complete its initialization process. This may involve internal checks, warming up, and displaying a ready status.

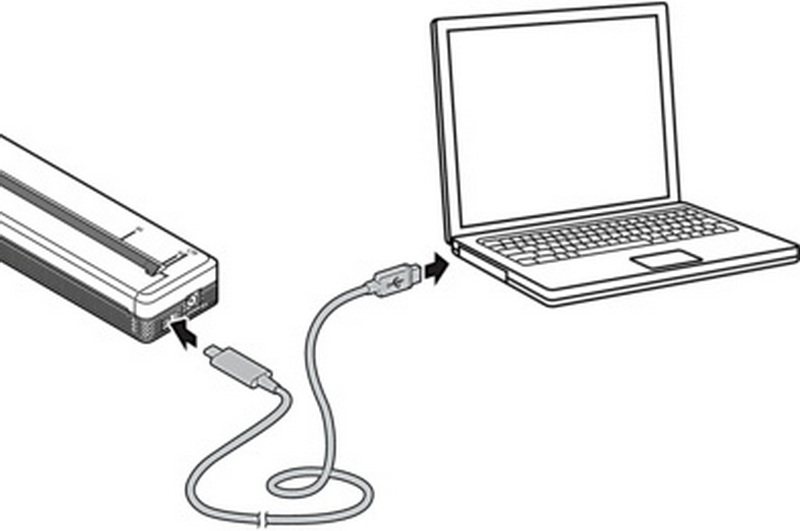

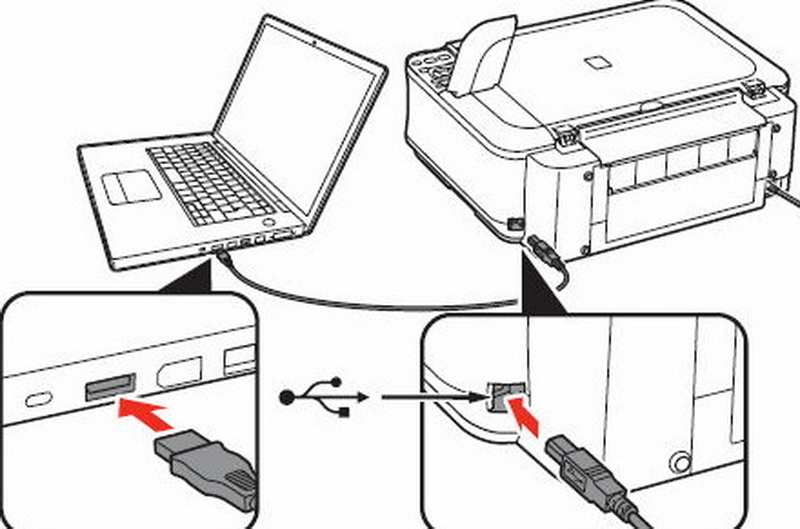

Step 3: Connecting the USB Cable

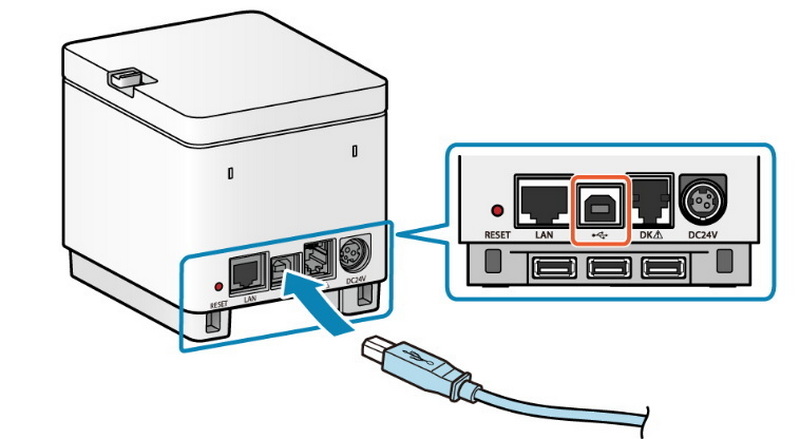

1. Locate the USB Ports: Carefully examine the back of your printer to identify the USB port. It's usually a square-shaped port clearly labeled "USB". Similarly, locate a vacant USB port on your computer.

2. Connect the USB Cable:

-  Printer End: Plug the USB Type-B connector (the square end) firmly into the USB port on the printer. Ensure it clicks or fits snugly.

-  Computer End: Plug the USB Type-A connector (the flat, rectangular end) securely into a USB port on your computer. Again, ensure a snug fit.

Step 4: Installing Printer Drivers

The next step involves installing the vital printer drivers on your computer. This software acts as the translator, enabling your computer to effectively communicate with the printer. Without the correct drivers, your computer won't be able to send print jobs to the printer.

For Windows:

1. Automatic Driver Installation: In many cases, Windows is designed to automatically detect the newly connected printer and attempt to install the required drivers. A notification will usually appear in the lower-right corner of your screen if this process is underway. Follow any on-screen prompts to complete the installation. Be patient; the driver download and installation may take a few minutes.

2. Manual Driver Installation: If Windows stubbornly refuses to automatically install the drivers, you'll need to take matters into your own hands and install them manually.

-  Manufacturer's Website is Key: Begin by visiting the official website of the printer manufacturer (e.g., HP, Canon, Epson, Brother).

-  Find the Support Section: Scour the website for a "Support," "Downloads," or "Drivers" section.

-  Identify Your Printer: Enter the precise model number of your printer. This is usually printed on a label on the printer itself. Using the correct model number ensures you download the correct drivers.

-  Download the Correct Drivers: Carefully select and download the appropriate drivers for your specific operating system (e.g., Windows 10, Windows 11, 32-bit, 64-bit). Downloading the wrong drivers can lead to compatibility issues.

-  Run the Installer: Locate the downloaded installer file (usually a .exe file) and double-click it to run it. Carefully follow the on-screen instructions provided by the installer. During the installation process, you may be prompted to select a connection type. Make sure to choose "USB" to reflect your connection method.

For macOS:

1. Automatic Driver Installation: Similar to Windows, macOS often exhibits a user-friendly behavior by automatically detecting the printer and attempting to install the necessary drivers.

2. Add the Printer Manually: If macOS doesn't automatically detect the printer, you'll need to add it manually through System Preferences.

-  Open System Preferences: Click the Apple menu in the upper-left corner of your screen and select "System Preferences."

-  Go to Printers & Scanners: In System Preferences, find and click on the "Printers & Scanners" icon.

-  Add a Printer: Click the "+" button located at the bottom of the left-hand pane to add a printer.

-  Select Your Printer: A list of available printers should appear. Select your printer from the list. If your printer is not listed, double-check that it's properly connected via USB, turned on, and that the USB cable is securely plugged in.

-  macOS Takes Over: macOS will typically handle the driver download and installation automatically. Simply follow any on-screen prompts to complete the process.

Step 5: Printing a Test Page

To confirm that your printer is correctly connected and configured, it's prudent to print a test page.

1. Windows:

-  Settings Access: Click the Start button, then click the Settings icon (the gear icon).

-  Navigate to Devices: In the Settings window, click on "Devices."

-  Printers & Scanners: In the Devices window, select "Printers & Scanners" from the left-hand menu.

-  Select Your Printer: Find your printer in the list of installed printers and click on it.

-  Manage Your Printer: Click the "Manage" button.

-  Print a Test Page: In the printer management window, click the "Print a test page" button.

2. macOS:

-  System Preferences: Click the Apple menu and select "System Preferences."

-  Printers & Scanners: In System Preferences, click on "Printers & Scanners."

-  Select Your Printer: Select your printer from the list of installed printers.

-  Print Test Page: Click the "Print Test Page" button.

If the test page prints successfully, congratulations! Your printer is now properly connected and configured, ready to tackle your printing needs.

Advanced Configuration (Optional)

-  Printer Sharing (Windows): You can share your USB-connected printer with other computers on your local network. Go to Settings > Devices > Printers & Scanners, select your printer, click Manage, then Printer Properties, and go to the Sharing tab to configure sharing options.

-  Custom Paper Sizes: Access the printer's settings (through Printer Properties on Windows or System Preferences > Printers & Scanners > Options & Supplies on macOS) to define custom paper sizes for specialized printing needs.

Troubleshooting: Diving Deeper

Let's expand on the troubleshooting advice to cover more specific scenarios:

Printer Not Detected:

-  Cable Integrity: Meticulously inspect the USB cable for any signs of physical damage. A damaged cable can cause intermittent or complete loss of connection.

-  USB Port Health: Test the USB port on your computer with other devices (e.g., a USB drive) to rule out a faulty port.

-  Power Cycle: Completely power down both the printer and the computer. Unplug them from the power source, wait a minute, and then plug them back in and turn them on.

-  Driver Reinstallation: Uninstall the printer drivers completely and then reinstall them from scratch, ensuring you download the latest versions.

Printing Errors:

-  Consumable Levels: Beyond just checking ink/toner levels, examine the condition of the cartridges or toner drums. Sometimes, even if they're not completely empty, they can be damaged or malfunctioning.

-  Paper Type Settings: Verify that the paper type setting in your printer driver matches the type of paper you're using. Incorrect settings can lead to poor print quality or paper jams.

-  Print Spooler Issues (Windows): If restarting the Print Spooler doesn't resolve the issue, try clearing the print spooler folder. Open File Explorer, navigate to `C:\Windows\System32\spool\PRINTERS`, and delete the contents of the folder. Then, restart the Print Spooler service.

USB Hub Issues:

-  Power Requirements: USB hubs, especially unpowered ones, may not provide sufficient power for printers, which can be power-hungry devices. Always use a powered USB hub if you need to connect the printer through a hub.

-  Hub Compatibility: Some USB hubs may not be fully compatible with certain printers. Try a different USB hub or, ideally, connect the printer directly to the computer.

Cable Length Limitations:

-  Signal Degradation: USB cables longer than 6 feet (approximately 2 meters) can experience signal degradation, leading to unreliable connections. If you need a longer cable, consider using a USB repeater or an active USB extension cable to boost the signal.

Conclusion

Connecting a printer to your computer using a USB cable remains a dependable and secure method for ensuring seamless printing. By meticulously following the steps outlined in this comprehensive guide, you can effortlessly set up your printer and embark on your printing tasks with confidence. Remember to diligently troubleshoot any encountered issues by meticulously checking cable connections, diligently updating drivers, and ensuring your printer is receiving adequate power.

FAQ

Q1: Why isn't my computer recognizing the printer after I connected it with a USB cable?

A1: There are several reasons why your computer might not be recognizing the printer:

1. Check the USB Connection: Make sure the USB cable is securely plugged into both the printer and the computer.

2. Try a Different USB Port: The USB port you're using might be faulty. Try another port on your computer.

3. Restart Devices: Restart both the printer and your computer. This can often resolve temporary glitches.

4. Driver Issues: Ensure the printer drivers are correctly installed. If not, download and install the latest drivers from the manufacturer's website.

Q2: How do I install printer drivers if Windows doesn't automatically detect my printer?

A2: If Windows doesn't automatically detect your printer, follow these steps to install the drivers manually:

1. Visit the Manufacturer's Website: Go to the official website of your printer manufacturer (e.g., HP, Canon, Epson, Brother).

2. Navigate to Support/Downloads: Find the "Support" or "Downloads" section of the website.

3. Enter Printer Model: Enter your printer's model number to find the appropriate drivers.

4. Download Drivers: Download the drivers compatible with your operating system (e.g., Windows 10, Windows 11).

5. Run Installer: Run the downloaded installer and follow the on-screen instructions to install the drivers.

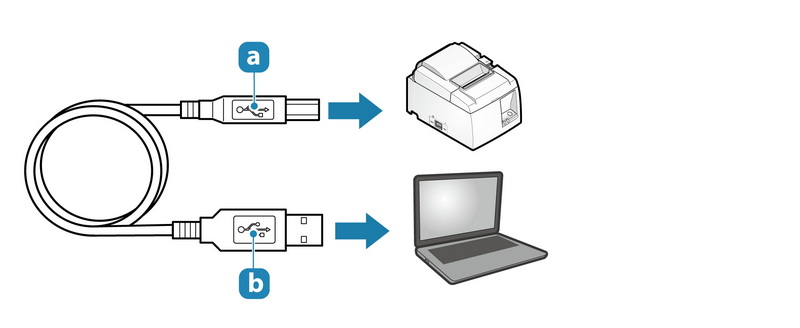

Q3: Can I use any USB cable to connect my printer?

A3: No, you need a specific type of USB cable known as a USB A-to-B cable. This cable has two different connectors:

-  USB Type-A: A flat, rectangular connector that plugs into your computer.

-  USB Type-B: A more square-shaped connector that plugs into the printer.

Using the correct cable ensures proper communication between the printer and the computer.

Q4: What should I do if my printer is printing blank pages?

A4: If your printer is printing blank pages, consider the following:

1. Check Ink/Toner Levels: Ensure that the ink or toner cartridges are not empty.

2. Print Head Cleaning: Run a print head cleaning cycle from the printer's software or control panel.

3. Check for Paper Jams: Inspect the printer for any paper jams that might be obstructing the printing process.

4. Driver Issues: Update or reinstall the printer drivers to ensure they are functioning correctly.

Q5: How do I know if my USB cable is faulty?

A5: Here are some signs that your USB cable might be faulty:

1. Intermittent Connection: The printer connects and disconnects randomly.

2. Error Messages: You receive error messages indicating a problem with the USB connection.

3. No Detection: The computer does not recognize the printer at all when connected via USB.

4. Visible Damage: The cable has visible signs of damage, such as cuts, bends, or frayed wires.
