USB (Universal Serial Bus) cables are ubiquitous in modern electronics, connecting devices for data transfer and power delivery. While they come in various lengths, situations arise where you might need a longer cable or wish to combine the functionality of two USB connections. This guide explores different methods for connecting two USB cables, covering extending cable length and more complex scenarios involving soldering and combining functionalities.
- Increased Reach: Connecting devices that are far from the host computer.
- Flexibility: Adapting to various workspace configurations.
- Convenience: Avoiding the need to move the computer or device closer.
The simplest and most reliable method is using a USB extension cable. These cables have a male USB connector on one end and a female USB connector on the other, allowing you to extend the reach of an existing USB cable[4].
- Advantages: Easy to use, no technical skills required, readily available.
- Disadvantages: Can introduce signal degradation over long distances, potential power loss.
A USB coupler (also known as a USB adapter or gender changer) connects two USB cables with male connectors. It essentially provides two female ports that join the cables[4].
- Advantages: Simple, compact, cost-effective.
- Disadvantages: Same length limitations as extension cables, can be less stable than a single extension cable.
For longer distances (beyond a few meters), active USB extension cables are recommended. These cables contain a built-in signal booster to compensate for signal loss over long distances, ensuring reliable data transfer[4].
- Advantages: Extends USB connections over longer distances, maintains signal integrity.
- Disadvantages: More expensive than passive extension cables, may require external power.
A USB hub can also act as an extension by providing multiple ports and boosting the signal. You can connect one USB cable from your computer to the hub and then another USB cable from the hub to your device[4].
- Advantages: Provides multiple ports, can extend the range, offers power delivery.
- Disadvantages: More bulky and expensive than simple extension cables.
USB cables have length limitations due to signal degradation. Standard USB 2.0 cables should not exceed 5 meters (16 feet), while USB 3.0 cables are typically limited to 3 meters (9.8 feet) without active extension[4]. Exceeding these lengths can lead to unreliable connections or data corruption.
Soldering USB cables involves modifying electrical connections and should only be attempted by individuals with experience in electronics and soldering. Incorrect wiring can damage your devices or create a safety hazard.
- Custom Lengths: Creating a USB cable of a specific, non-standard length[1].
- Repairing Damaged Cables: Fixing broken USB cables by splicing them together[9].
- Combining Functionality (Advanced): Merging two USB cables into a single connector for specialized applications[3].
- Two USB Cables: The cables you want to connect or modify.
- Wire Cutter/Stripper: For cutting and stripping the wires[1].
- Soldering Iron and Solder: For making electrical connections[1].
- Electrical Tape or Heat Shrink Tubing: For insulation and protection[1].
- Multimeter: For testing continuity and identifying wires[7].

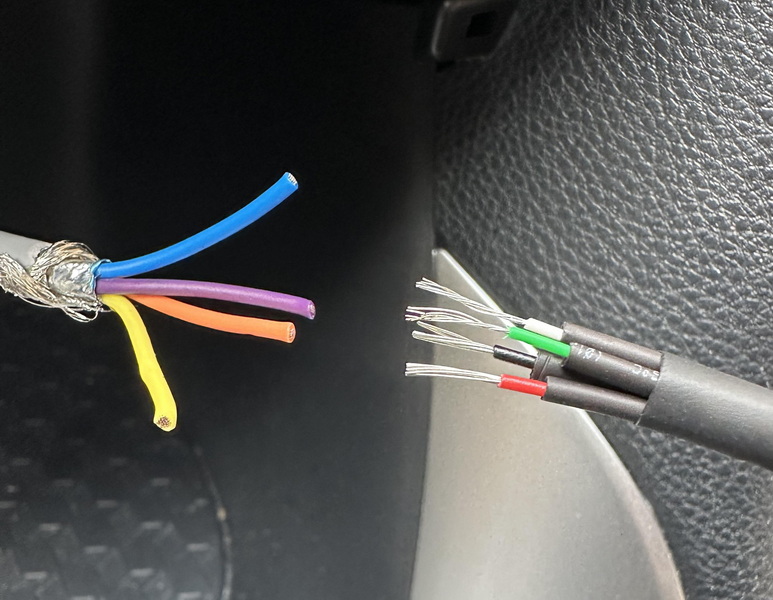

1. Cut and Strip the Cables: Cut the USB cables at the desired points and carefully strip about 1/4 inch of insulation from the ends of each wire[1].
2. Identify the Wires: USB cables typically have four wires:
- Red: +5V Power (VCC)
- Black: Ground (GND)
- White: Data - (D-)
- Green: Data + (D+)
3. Tin the Wires: Apply a small amount of solder to the exposed ends of each wire. This makes it easier to join them[1].
4. Join the Wires: Twist together the corresponding wires (red to red, black to black, etc.)[1].
5. Solder the Connections: Carefully solder each connection, ensuring a strong and clean joint. Avoid overheating the wires, as this can damage the insulation[1].
6. Insulate the Connections: Wrap each soldered connection with electrical tape or slide heat shrink tubing over the connection and heat it with a heat gun to create a secure and insulated joint[1].
7. Test the Connection: Use a multimeter to test the continuity of each connection and ensure there are no shorts between the wires.

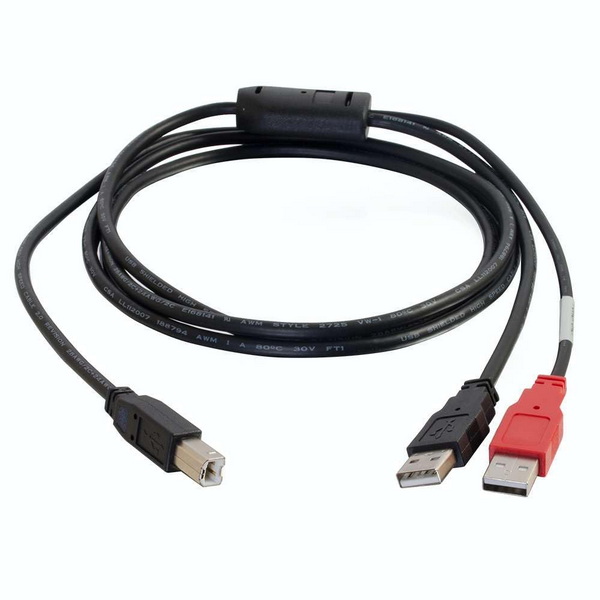

This involves soldering multiple USB-A ports to a single micro USB-B plug[3]. This requires a USB hub IC, as simply splitting the wires will not work due to USB architecture limitations. This project is complex and requires advanced electronics knowledge[3][5].
- Always unplug the USB cables from any power source before cutting or soldering.
- Use a well-ventilated area when soldering to avoid inhaling fumes.
- Wear safety glasses to protect your eyes from solder splatter.
- Be careful when using heat guns or soldering irons to avoid burns.
- If you are not comfortable with soldering, seek help from a qualified electrician or electronics technician.
Connecting two USB cables can be achieved through various methods, ranging from simple extension cables to more complex soldering techniques. The best approach depends on your specific needs and technical expertise. For simple length extensions, USB extension cables or couplers are recommended. Soldering should only be attempted by experienced individuals and with proper safety precautions.
No, simply connecting two USB cables to a device will not increase the charging speed. The charging speed is determined by the power output of the USB port and the device's charging circuitry.
For standard USB 2.0 cables, the maximum length is 5 meters (16 feet). For USB 3.0 cables, it's typically 3 meters (9.8 feet)[4]. Exceeding these lengths can cause signal degradation and unreliable connections.
Cutting and splicing USB cables can be safe if done correctly with proper soldering and insulation[1]. However, it's essential to have experience with electronics and soldering to avoid damaging your devices or creating a safety hazard.
While most USB extension cables are compatible, it's essential to ensure that the cable supports the USB version (e.g., USB 2.0, USB 3.0) required by your device[4]. Using an incompatible cable may result in reduced performance or no connection.
Active USB extension cables contain a built-in signal booster to compensate for signal loss over long distances. You should use them when extending USB connections beyond the standard length limitations (5 meters for USB 2.0, 3 meters for USB 3.0) to maintain signal integrity[4].
