Introduction
USB cables are ubiquitous in modern life, serving as the essential link for charging and data transfer between our devices. However, these cables are prone to wear and tear, leading to malfunctions that can disrupt our daily routines. Testing a USB cable with a multimeter is a straightforward process that can help you identify whether the cable is functioning correctly or needs replacement[1][2]. This article provides a comprehensive guide on how to test USB cables using a multimeter, ensuring you can diagnose and resolve common USB cable issues efficiently.
Why Test a USB Cable?
USB cables are subjected to constant bending, twisting, and general wear, which can lead to internal wire breaks or connection faults[2]. Identifying a faulty cable early can save you from the frustration of slow charging speeds, failed data transfers, or even potential damage to your devices. Regular testing can also help you differentiate between a faulty cable, a defective power adapter, or a problem with the device itself.
Understanding USB Cables
Before diving into the testing process, it's essential to understand the basic structure and types of USB cables. A standard USB cable consists of four wires:
- VCC (Red): Carries the +5V power supply.
- Data+ (Green): Carries data signals.
- Data- (White): Carries data signals.
- GND (Black): Provides the ground connection[1].
These wires are responsible for both powering devices and transferring data. USB cables come in various types, including USB-A, USB-B, Mini-USB, Micro-USB, and USB-C, each designed for specific devices and purposes[2].
Equipment Needed
To test a USB cable effectively, you will need the following equipment:
1. Multimeter: A digital multimeter is preferred for its accuracy and ease of use.
2. USB Breakout Board (Optional): This board simplifies connecting multimeter probes to the USB cable's pins but is not essential.
3. Alligator Clips (Optional): These can help secure the multimeter probes to the wires for hands-free testing.
4. Old USB Cable: For practicing the testing process.
5. Wire Strippers: To expose the wires if you are testing a cut cable[4].
6. Soldering Iron and Solder (Optional): To repair broken connections if you are skilled in soldering.
Safety Precautions
When working with electrical equipment, safety should always be a priority. Here are some precautions to keep in mind:
- Disconnect Power: Always disconnect the USB cable from any power source before testing to avoid electrical shock.
- Avoid Water: Ensure the testing environment is dry to prevent short circuits and electrical hazards.
- Proper Insulation: Make sure the multimeter probes are properly insulated to avoid accidental contact with exposed wires.
- Use Correct Settings: Always double-check the multimeter settings before testing to avoid damaging the device or the cable.
Testing Methods
There are several methods to test a USB cable using a multimeter, each providing different insights into the cable's functionality[2]. Here are the primary methods:
1. Visual Inspection
The first step in testing a USB cable is a thorough visual inspection[2]. Look for the following:
- Physical Damage: Check for any cuts, fraying, or exposed wires along the cable's length.
- Connector Damage: Examine the USB connectors for bent pins, corrosion, or loose connections.
- Strain Relief: Ensure the strain relief collars at the ends of the cable are intact and not broken.
If you notice any of these issues, the cable may be damaged and require replacement or repair.

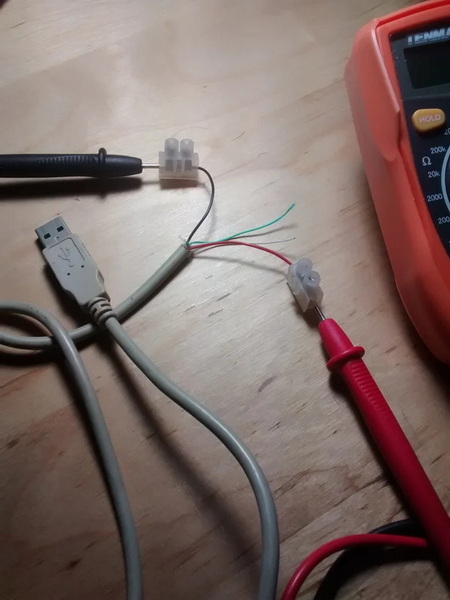

2. Continuity Testing
Continuity testing verifies whether there is a complete electrical path between the ends of each wire in the USB cable[3][5]. This test helps identify broken wires or loose connections. Here's how to perform a continuity test:
1. Prepare the Multimeter:
- Turn on the multimeter and set it to the continuity testing mode. This mode is usually indicated by a diode symbol or a speaker icon.
2. Prepare the Cable:
- If the cable is intact, use a USB breakout board to access the individual wires. Alternatively, you can carefully strip the insulation from both ends of the cable to expose the wires[4].
3. Test Each Wire:
- Connect one probe of the multimeter to one end of the red wire (VCC) and the other probe to the corresponding end of the same wire.
- If the multimeter beeps or displays a value close to zero ohms, there is continuity[3]. This indicates that the wire is intact.
- Repeat this process for the black (GND), green (Data+), and white (Data-) wires.
4. Interpreting Results:
- If the multimeter does not beep or displays a high resistance value, there is a break in the wire, indicating a faulty cable.
3. Resistance Testing
Resistance testing measures the amount of opposition to the current flow in each wire[4]. High resistance can indicate corrosion, poor connections, or partially broken wires. Here's how to perform a resistance test:
1. Prepare the Multimeter:
- Turn on the multimeter and set it to the resistance testing mode (Ohms Ω).
- Select the lowest resistance range for accurate readings (e.g., 200 Ohms)[4].
2. Prepare the Cable:
- As with continuity testing, use a USB breakout board or strip the insulation from both ends of the cable to expose the wires.
3. Test Each Wire:
- Connect one probe of the multimeter to one end of the red wire (VCC) and the other probe to the corresponding end of the same wire.
- Record the resistance value displayed on the multimeter.
- Repeat this process for the black (GND), green (Data+), and white (Data-) wires.
4. Interpreting Results:
- A good USB cable should have very low resistance (close to 0 Ohms) for each wire.
- High resistance values indicate a problem with the wire, such as corrosion or a partial break[4].

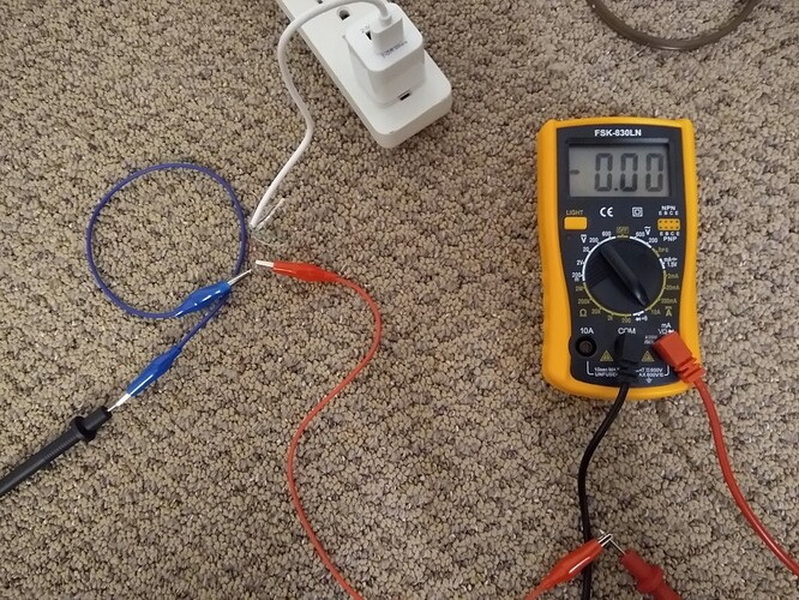

4. Voltage Testing
Voltage testing verifies whether the USB cable can deliver the correct voltage from the power source to the device[3]. This test is particularly useful for identifying issues with the VCC (red) and GND (black) wires. Here's how to perform a voltage test:
1. Prepare the Multimeter:
- Turn on the multimeter and set it to the DC voltage testing mode (VDC).
- Select a voltage range that is higher than 5V (e.g., 20V)[3].
2. Connect the Cable:
- Plug the USB cable into a power source, such as a USB wall charger connected to an extension cord[3].
3. Test the Voltage:
- Carefully connect the black probe of the multimeter to the GND (black) wire and the red probe to the VCC (red) wire at the other end of the cable.
- Observe the voltage reading on the multimeter[3].
4. Interpreting Results:
- A working USB cable should provide a voltage reading close to 5V.
- If the voltage is significantly lower or zero, there may be a problem with the cable or the power source[3].
5. Data Line Testing
Testing the data lines (green and white wires) requires a more advanced setup and is generally more complex than testing the power lines[1]. A multimeter alone cannot fully test the data lines, as it only measures electrical properties and not data transfer capabilities. However, you can perform a basic check to ensure the data lines are not shorted or open.
1. Continuity Test:
- Perform a continuity test on the green (Data+) and white (Data-) wires as described earlier. This will verify whether the wires are intact[1].
2. Resistance Test:
- Perform a resistance test on the green (Data+) and white (Data-) wires. Low resistance values indicate that the wires are in good condition[1].
3. Advanced Testing:
- For more advanced testing, you would typically use a USB data analyzer or connect the cable to a device and monitor the data transfer rates.
Step-by-Step Guide with Visuals
Here's a detailed step-by-step guide with images to help you test a USB cable using a multimeter:
Step 1: Gather Your Equipment
Collect all the necessary equipment, including a multimeter, USB breakout board (optional), alligator clips (optional), an old USB cable, wire strippers, and a soldering iron with solder (optional).
Step 2: Prepare the Cable
If you are using a USB breakout board, connect the USB cable to the board. If not, carefully strip the insulation from both ends of the cable to expose the wires[4].
Step 3: Set Up the Multimeter
Turn on the multimeter and select the appropriate testing mode (continuity, resistance, or voltage) based on the test you want to perform.
Step 4: Perform Continuity Testing
Set the multimeter to continuity mode. Connect the probes to the corresponding ends of each wire. A beep sound indicates continuity.
Step 5: Perform Resistance Testing
Set the multimeter to resistance mode. Connect the probes to the corresponding ends of each wire. Low resistance values indicate good condition.
Step 6: Perform Voltage Testing
Set the multimeter to DC voltage mode. Plug the USB cable into a power source. Connect the probes to the VCC (red) and GND (black) wires. A reading close to 5V indicates proper voltage delivery.
Common Issues and Troubleshooting
When testing USB cables, you may encounter several common issues[2]. Here's how to troubleshoot them:
1. No Continuity:
- Problem: The multimeter does not beep during the continuity test.
- Solution: Check for broken wires or loose connections. Use wire strippers to expose fresh wire and retest. If the problem persists, replace the cable.
2. High Resistance:
- Problem: The multimeter displays high resistance values during the resistance test.
- Solution: Clean the wire connections to remove any corrosion. Ensure the connections are tight and secure. If the resistance remains high, replace the cable[4].
3. Low Voltage:
- Problem: The multimeter displays a voltage significantly lower than 5V during the voltage test.
- Solution: Check the power source to ensure it is functioning correctly. Test another USB cable with the same power source to rule out issues with the power adapter[3].
4. Data Transfer Issues:
- Problem: Data transfer is slow or failing.
- Solution: Ensure the data lines (green and white wires) are intact. Use a USB data analyzer for advanced testing.
Repairing a USB Cable
If you find a break in a USB cable, you may be able to repair it, provided you have the necessary skills and equipment[3]. Here's a basic guide:
1. Identify the Break:
- Locate the exact point of the break in the wire.
2. Prepare the Wires:
- Cut the cable at the point of the break and strip the insulation from the ends of the wires.
3. Solder the Wires:
- Carefully solder the corresponding wires together, ensuring a strong and secure connection.
4. Insulate the Connections:
- Use electrical tape or heat-shrink tubing to insulate each soldered connection, preventing short circuits[3].
5. Test the Cable:
- After repairing the cable, test it using the methods described above to ensure it is functioning correctly.
Alternative Testing Methods
While using a multimeter is an effective way to test USB cables, there are alternative methods you can use[2]:
1. USB Cable Tester:
- A dedicated USB cable tester is a simple device that quickly checks the continuity and integrity of a USB cable. These testers typically use LED indicators to show whether each wire is functioning correctly[2].
2. Manual Check:
- Connect the USB cable to a device and check if it charges or transfers data. If the device does not respond, the cable may be faulty[2].

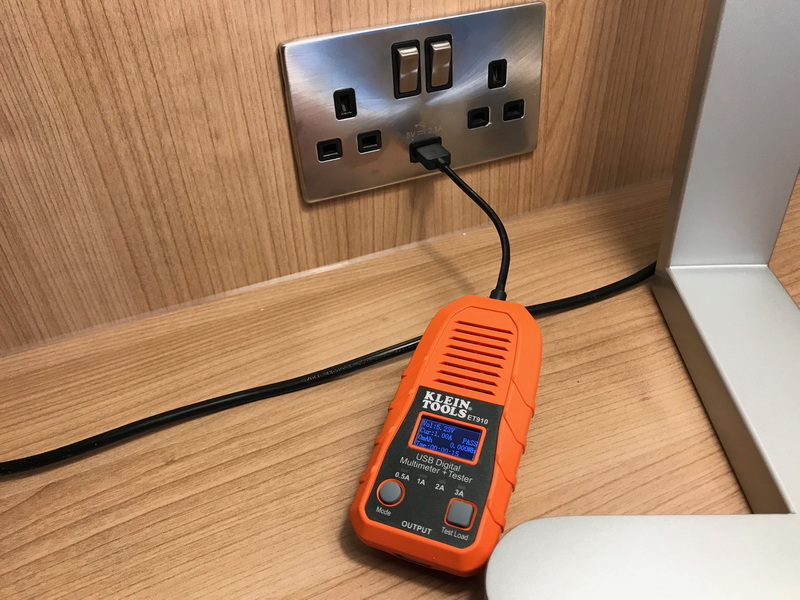

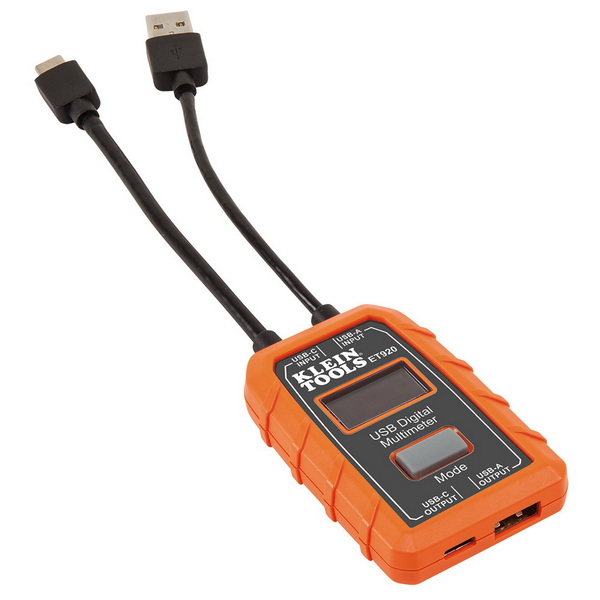

3. Using a USB Multimeter:
- A USB multimeter can measure voltage, current, capacity, and power. It can also help check for bad cables by displaying the current flow[2].
Conclusion
Testing a USB cable with a multimeter is a valuable skill that can save you time and money by identifying faulty cables before they cause further issues[1][2]. By following the methods and troubleshooting tips outlined in this article, you can effectively diagnose and resolve common USB cable problems. Regular testing and maintenance of your USB cables will ensure they continue to provide reliable charging and data transfer for your devices.
FAQ
1. How do I set up my multimeter for continuity testing?
To set up your multimeter for continuity testing, turn the dial to the continuity testing mode, which is usually indicated by a diode symbol or a speaker icon. Ensure that the multimeter is not connected to any power source before testing.
2. What does it mean if my multimeter beeps during a continuity test?
If your multimeter beeps during a continuity test, it means that there is a complete electrical path between the two points you are testing. This indicates that the wire is intact and there are no breaks or open circuits[3][5].
3. Can I test a USB cable while it is plugged into a power source?
No, you should never test a USB cable while it is plugged into a power source. This can be dangerous and could result in electrical shock or damage to the multimeter and the cable. Always disconnect the cable from any power source before testing[3].
4. What should the resistance value be for a good USB cable?
A good USB cable should have very low resistance (close to 0 Ohms) for each wire. High resistance values indicate a problem with the wire, such as corrosion or a partial break[4].
5. How can I test the data lines on a USB cable with a multimeter?
You can perform a basic check on the data lines (green and white wires) by conducting a continuity and resistance test. For more advanced testing, you would typically use a USB data analyzer or connect the cable to a device and monitor the data transfer rates[1].
