Introduction
USB-C cables have become ubiquitous in the world of modern technology, offering a versatile solution for charging, data transfer, and video output. With the introduction of USB Power Delivery (PD) and the ability to carry up to 240W of power, it's crucial to understand how to check the wattage capabilities of your USB-C cables[2][5]. This comprehensive guide will walk you through the process, ensuring you can safely and effectively utilize your cables for various devices.
Why Check USB-C Cable Wattage?
USB-C cables are not created equal. While they all share the same connector, their internal construction and capabilities can vary significantly[3]. Using a cable that is not rated for the required wattage can lead to several issues:
- Slow Charging: A low-wattage cable will limit the amount of power delivered to your device, resulting in slower charging times[3].
- Unreliable Data Transfer: Inadequate cables may not support the data transfer speeds required for certain applications, leading to data loss or corruption[3].
- Potential Damage: In extreme cases, using an under-rated cable with a high-power device can cause overheating and potentially damage the cable, the charger, or the device[3].
Understanding USB-C Power Delivery (PD)
USB Power Delivery (PD) is a charging protocol that allows devices to negotiate and deliver higher levels of power over USB-C connections[2]. The latest USB PD Revision 3.1 specification supports up to 240W of power, significantly expanding the range of devices that can be charged via USB-C[2][5].
Key Features of USB Power Delivery:
- Increased Power Levels: Supports power levels from existing USB standards, up to 240W[2].
- Adjustable Voltage Supply: Allows devices to request intermediate voltages between 5V and the maximum available fixed voltage of the charger[2].
- Bi-Directional Power: Power can flow in either direction, allowing devices to both draw and supply power[2].
- Intelligent Power Management: Optimizes power delivery across multiple peripherals, allowing each device to draw the power it needs[2].
Identifying USB-C Cable Wattage
There are several ways to determine the wattage capabilities of your USB-C cable:
1. Check the Cable Packaging and Markings
- Certification Logos: Look for USB-IF certification logos on the packaging or the cable itself[3]. This indicates that the cable has been tested and certified to meet the required safety and performance standards[3].
- Wattage Rating: The cable's wattage rating is often printed directly on the cable or its packaging[7]. Look for markings such as "60W," "100W," or "240W"[1][5].
- E-Marker Chip: High-wattage USB-C cables (especially those rated for 240W) include an E-marker chip[5][7]. This chip communicates the cable's capabilities to the connected devices, ensuring safe and efficient power delivery[5].
2. Use a USB-C Meter

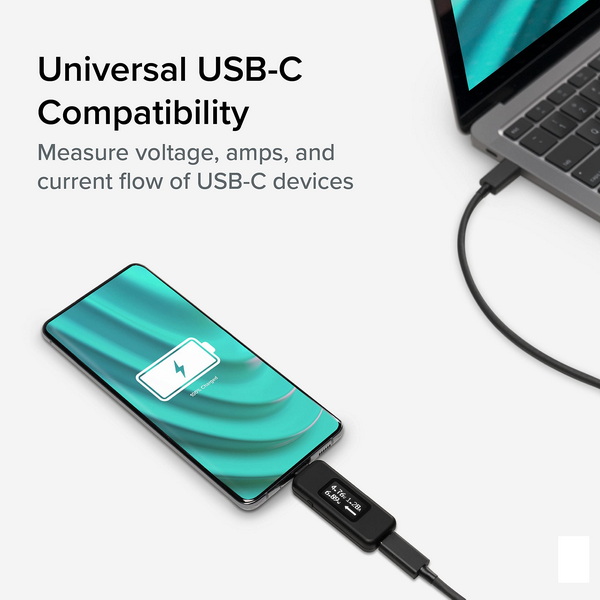

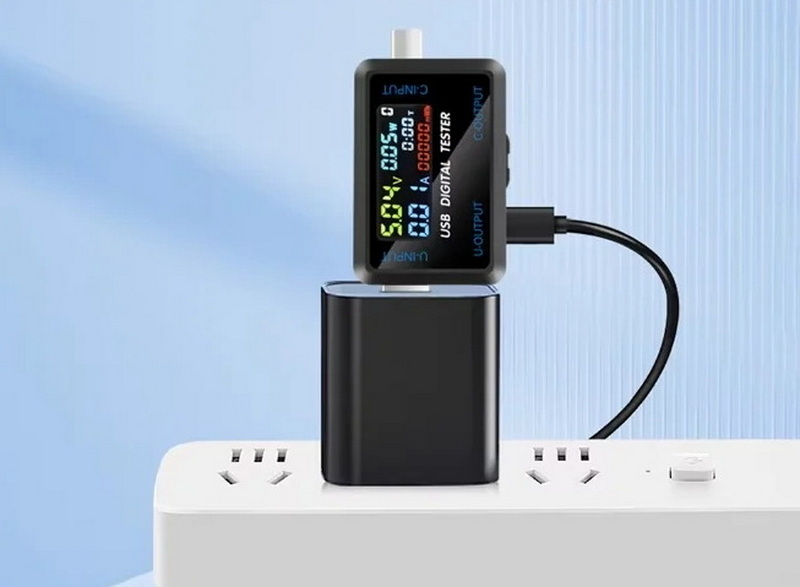

A USB-C meter is a valuable tool for testing the voltage, current, and power delivery capabilities of your USB-C cables[3]. These meters are readily available online and at electronics stores.
How to Use a USB-C Meter:

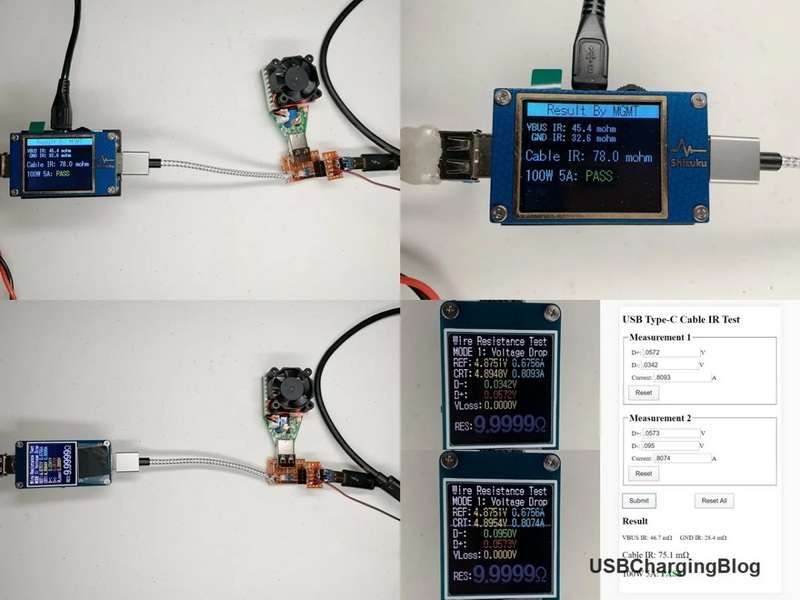

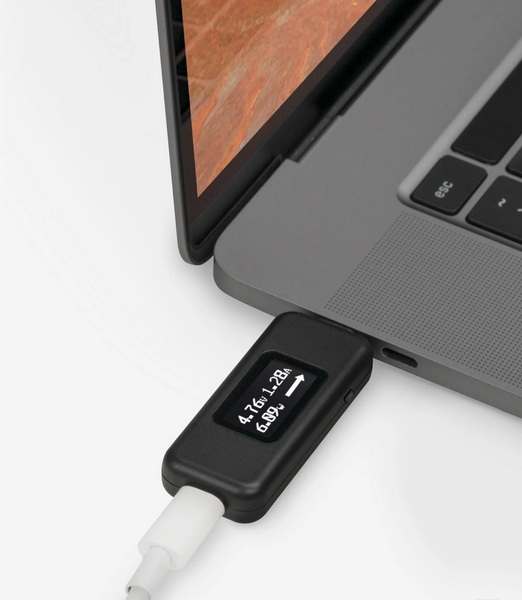

1. Connect the Meter: Plug the USB-C meter into a USB-C power source (e.g., a wall charger or power bank).
2. Connect the Cable: Plug the USB-C cable into the meter.
3. Connect the Device: Plug the other end of the USB-C cable into the device you want to charge or test.
4. Read the Display: The meter will display the voltage (V), current (A), and power (W) being delivered to the device.
By monitoring the power readings, you can determine the maximum wattage that the cable can handle. If the power reading is significantly lower than the charger's rated output, it may indicate that the cable is limiting the power delivery.
3. Software and Operating System Information
- MacBook: If you are using a MacBook, you can check the wattage by following the instructions provided by Apple's software[4].
- Other Devices: Some devices provide information about the connected USB-C cable and its capabilities within their operating system. Check your device's documentation for details.
4. Flex and Bend Test
Bending and flexing a cable can reveal any potential weak points or kinks in the wiring[3]. If a cable is not properly insulated or constructed, bending or flexing the cable can cause it to fail[3].
To conduct a flex and bend test, plug the cable into a device and gently bend and flex it while it's in use[3]. Look for any interruptions in the signal or changes in the device's performance[3]. If there are any issues, replace the cable immediately to avoid any potential damage to your devices[3].
5. Visual Inspection
Inspect the cable for any signs of damage, such as frayed wires, cracked connectors, or melted insulation. These can indicate that the cable is not safe to use and should be replaced.
Interpreting the Results
Once you have gathered information about your USB-C cable, you can interpret the results to determine its wattage capabilities:
- Rated Wattage: If the cable is clearly marked with a wattage rating (e.g., 60W, 100W, or 240W), you can be confident that it can handle that level of power[1][5].
- USB-C Meter Readings: If you are using a USB-C meter, observe the power readings while charging a device[3]. If the power reading consistently reaches a certain level and then plateaus, it may indicate the cable's maximum wattage capacity[3].
- Inconsistent Performance: If you experience slow charging, data transfer issues, or other problems when using a particular USB-C cable, it may be a sign that the cable is not capable of handling the required power or data transfer rates[3].
Safety Considerations
- Use Certified Cables: Always use USB-C cables that are certified by the USB-IF[3]. These cables have been tested to meet the required safety and performance standards[3].
- Avoid Damaged Cables: Do not use USB-C cables that are damaged or show signs of wear and tear.
- Match Cable to Device: Ensure that the USB-C cable you are using is appropriate for the device you are charging or connecting. Using an under-rated cable with a high-power device can be dangerous.
- Monitor for Overheating: If you notice that a USB-C cable is getting excessively hot during use, disconnect it immediately and replace it with a different cable.
Conclusion
Checking the wattage of your USB-C cables is essential for ensuring safe and efficient charging and data transfer. By following the steps outlined in this guide, you can confidently determine the capabilities of your cables and avoid potential problems. Remember to use certified cables, inspect them regularly for damage, and match the cable to the device you are using.
FAQ
1. How do I know if my USB-C cable supports Power Delivery (PD)?
Look for markings on the cable or its packaging that indicate support for USB Power Delivery (PD)[3]. You can also use a USB-C meter to verify if the cable is capable of delivering higher power levels[3].
2. Can I use a 60W USB-C cable with a 100W charger?
Yes, you can use a 60W USB-C cable with a 100W charger, but the cable will limit the power delivery to 60W[4]. Your device will charge, but it may not charge as quickly as it would with a 100W cable[4].
3. What is an E-marker chip, and why is it important?
An E-marker chip is a small integrated circuit inside high-wattage USB-C cables that communicates the cable's capabilities to the connected devices[5][7]. This ensures safe and efficient power delivery by preventing devices from drawing more power than the cable can handle[5].
4. How can I tell if a USB-C cable is USB 2.0 or USB 3.0?
Check the cable's packaging or markings for USB 2.0 or USB 3.0 designations[4]. USB 3.0 cables typically have higher data transfer speeds than USB 2.0 cables[4]. You can also use software tools to test the data transfer speeds of the cable[3].
5. Is it safe to use a USB-C cable that feels warm during charging?
A USB-C cable may feel slightly warm during charging, especially when delivering high power levels. However, if the cable becomes excessively hot, disconnect it immediately and replace it with a different cable. Overheating can be a sign of a damaged or under-rated cable.
