Introduction
In today's tech-driven world, USB cables are essential for everything from charging our devices to transferring data[3]. However, the performance of these cables can vary significantly[3]. This comprehensive guide will show you how to test USB cable speed, ensuring you get the most out of your connections[3].
Understanding USB Cable Speeds
Before diving into testing methods, it's important to understand the different USB standards and their theoretical maximum speeds[3]:
- USB 2.0: Up to 480 Mbps[1]
- USB 3.0 (USB 3.1 Gen 1/USB 3.2 Gen 1): Up to 5 Gbps[1]
- USB 3.1 (USB 3.1 Gen 2/USB 3.2 Gen 2): Up to 10 Gbps
- USB 3.2 (USB 3.2 Gen 2x2): Up to 20 Gbps
- USB4: Up to 40 Gbps
It's worth noting that these are theoretical maximum speeds[3]. Actual speeds can be affected by various factors, including the USB port, the device, and the cable quality[1].
Methods to Test USB Cable Speed
Here are several methods to test your USB cable speed[1]:

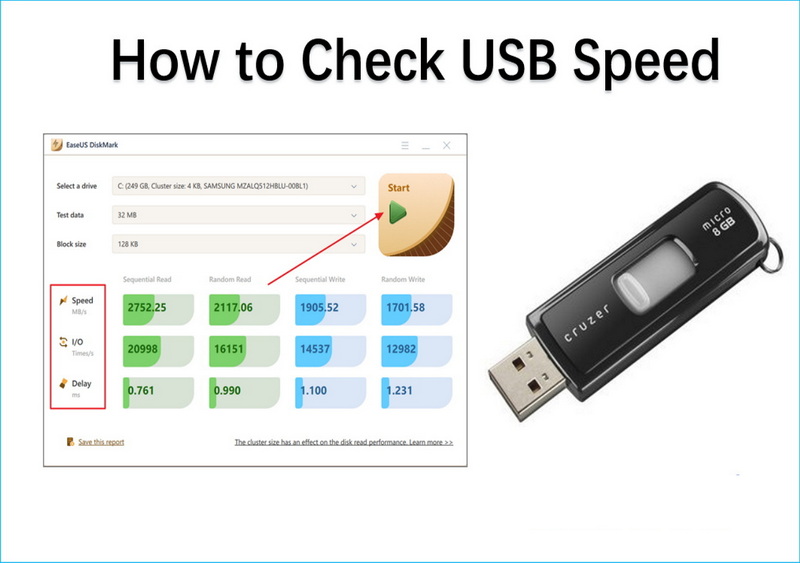

1. Use Specialized Software
Several software tools can measure the read and write speeds of your USB cable[1]. Here are a few popular options[1][2]:
- CrystalDiskMark: This tool can test the transfer speed of flash drives, hard drives, and SSDs[1][2]. It allows you to customize parameters such as the number of runs, size, and drive[2].
- USBDeview: This tool measures the read and write speeds of your USB cable and provides performance ratings[1].
- USB Flash Benchmark: This portable utility works with memory cards, SD cards, portable hard drives, and USB flash drives[2]. It runs benchmarks for speeds from 1K blocks to 16MB and provides icon results[2].
- SpeedOut: A simple, portable benchmark tool for Windows that tests read and write speeds at a low level[5].
How to Use:
1. Download and install the software[1][2].
2. Connect the USB cable to your computer and the device you want to test[6].
3. Launch the software and select the USB drive[5][6].
4. Run the test and note the read and write speeds[1][5].
2. Perform Manual File Transfers
A simple way to test USB cable speed is by transferring files of varying sizes between your computer and the USB drive[1]. The data transfer speed will give you an idea of your cable speed[1].
How to Use:
1. Connect the USB cable to your computer and the device[6].
2. Copy a large file (e.g., a movie or a large archive) to the USB drive and note the time it takes to transfer[1].
3. Copy the same file back to your computer and note the time[1].
4. Calculate the transfer speed by dividing the file size by the transfer time[1].
3. Check Cable Specifications
USB cables have different specifications that affect transfer speeds[1]. Check the cable's specification to get an idea of its speed[1].
How to Use:
1. Examine the cable for markings indicating the USB standard (e.g., USB 2.0, USB 3.0)[1].
2. If there are no markings, check the packaging or the manufacturer's website[1].
3. Cross-reference the specifications with speed testing results to see if it's working at its optimal level[1].
4. Test the USB Port
Sometimes, the USB port can be a bottleneck[1]. Test the USB port to determine if it's causing the issue[1].
How to Use:
1. Connect the USB cable to another port on your computer[1].
2. If possible, test the cable on a different computer[1].
3. If the transfer speed increases, the problem might be the first USB port[1].
5. Use Online Speed Test Tools
Some online tools can test your USB drive speed, but they may not be as accurate as dedicated software[3].
How to Use:
1. Search for an online USB speed test tool[3].
2. Follow the instructions on the website to test your USB drive speed[6].
3. Note the read and write speeds[1].

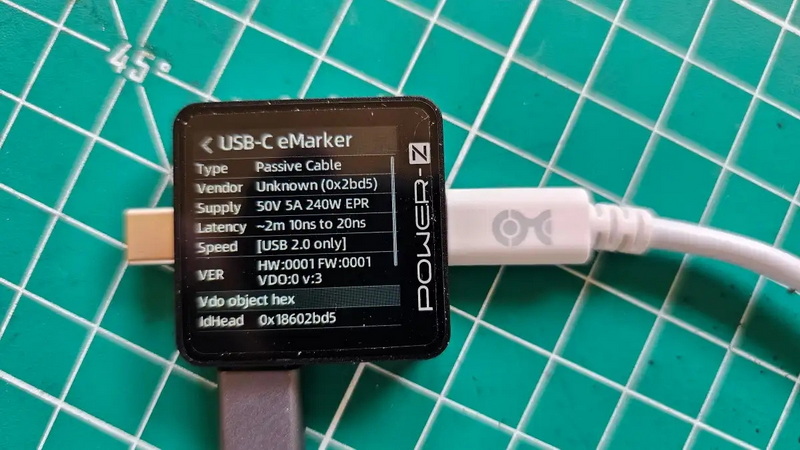

6. Use Hardware Cable Testers
For more accurate and detailed testing, you can use hardware cable testers, although these can be expensive[3][4].
How to Use:
1. Purchase a USB loopback tester or a dedicated cable tester[4].
2. Connect the cable to the tester[6].
3. Follow the manufacturer's instructions to perform the test[4].
4. Analyze the results to determine the cable's performance[1].
Factors Affecting USB Cable Speed
Several factors can affect the speed of your USB cable[1]:
- USB Standard: Different USB standards have different maximum speeds[3].
- Cable Quality: High-quality cables can provide better performance[1].
- Cable Length: Longer cables may experience signal degradation[6].
- USB Port: The USB port's speed can limit the data transfer rate[1].
- Device: The device's capabilities can also affect the speed[6].
- Electromagnetic interference: Nearby electronic devices can cause interference that slows down data transfer.
- Driver issues: Outdated or corrupt drivers can cause slower transfer speeds. Make sure your USB drivers are up to date.
Tips for Maintaining USB Cable Performance
Here are some tips for maintaining USB cable performance[3]:
- Use High-Quality Cables: Invest in high-quality cables from reputable brands[1].
- Avoid Long Cables: Use shorter cables whenever possible to minimize signal degradation[6].
- Keep Cables Clean: Keep your cables clean and free of dust and debris[3].
- Store Cables Properly: Store your cables properly to avoid damage[3].
- Update Drivers: Keep your USB drivers up to date[6].
Conclusion
Testing your USB cable speed is essential to ensure it's working at its optimal level[1]. You can use software tools, manual file transfers, or hardware cable testers to determine the cable's performance[1]. By understanding the factors that affect USB cable speed and following the tips for maintaining cable performance, you can ensure you get the most out of your USB connections[3][6].
FAQ
1. Why is my USB cable not performing at its advertised speed?
Several factors can cause a USB cable to underperform, including cable quality, USB port limitations, device capabilities, and cable length[1]. Always ensure you are using a high-quality cable and that your USB ports and devices support the advertised speed[6].
2. Can I use a USB 3.0 cable with a USB 2.0 port?
Yes, USB 3.0 cables are backward compatible with USB 2.0 ports[1]. However, the data transfer speed will be limited to the maximum speed supported by the USB 2.0 port (480 Mbps)[1].
3. How often should I replace my USB cables?
There is no fixed replacement schedule for USB cables[3]. Replace them when you notice a significant decrease in performance, physical damage, or connection issues[1].
4. Are more expensive USB cables always faster?
Not necessarily[4]. While higher-priced cables may use better materials and construction, the USB standard primarily determines the speed[3]. Ensure the cable meets the required USB specification for your needs[1].
5. Can software updates improve USB cable speed?
Software updates themselves cannot directly improve USB cable speed[3]. However, updating USB drivers can optimize the performance of your USB ports, indirectly affecting data transfer speed[6].
