USB, or Universal Serial Bus, has become an indispensable technology for connecting various devices to computers and other peripherals. Over the years, USB technology has evolved, leading to different versions and standards, each offering varying data transfer speeds and capabilities. Identifying the specific USB version of a cable is crucial to ensure optimal performance and compatibility. This article will provide a detailed guide on how to determine if a cable is USB 3.0, along with relevant background information and troubleshooting tips.
The first version of USB, USB 1.0, was introduced in 1996, offering a data transfer rate of 12 Mbps. While it was a significant step forward, it wasn't widely adopted due to its limited speed. USB 1.1, released in 1998, addressed some of the initial issues and gained more traction.
In 2000, USB 2.0 was introduced, marking a major improvement with a data transfer rate of 480 Mbps. This version became widely popular and was the standard for many years.
USB 3.0, released in 2008, brought another significant leap in performance, offering a data transfer rate of up to 5 Gbps. This version was later renamed USB 3.1 Gen 1.
USB 3.1 Gen 2, introduced in 2013, doubled the data transfer rate to 10 Gbps.
USB 3.2, released in 2017, further increased the data transfer rate to 20 Gbps by utilizing multiple lanes.
The latest standard, USB4, was introduced in 2019 and is based on the Thunderbolt protocol, offering data transfer rates of up to 40 Gbps.
Knowing the USB version of a cable is essential for several reasons:
1. Data Transfer Speed: Different USB versions offer different data transfer speeds. Using a USB 2.0 cable with a USB 3.0 device will limit the data transfer speed to USB 2.0 rates.
2. Compatibility: While USB is generally backward compatible, some devices may require a specific USB version to function correctly.
3. Power Delivery: Newer USB versions support higher power delivery, which is important for charging devices like smartphones and laptops.
There are several ways to determine if a cable is USB 3.0. Here are some of the most reliable methods:

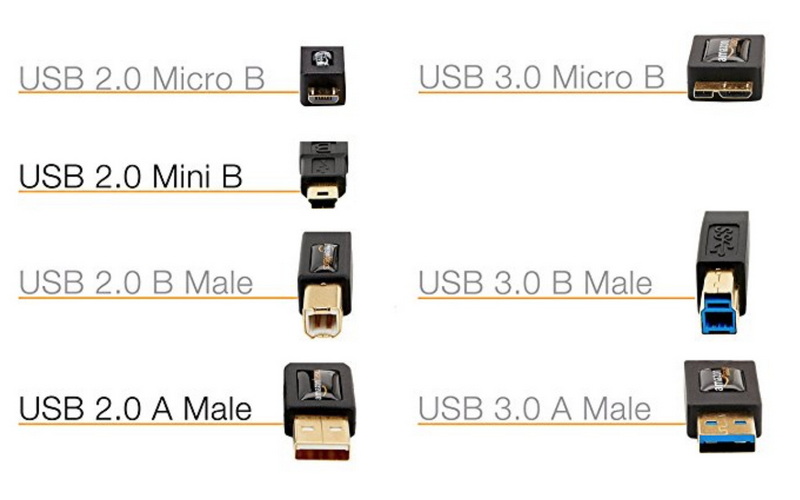

One of the easiest ways to identify a USB 3.0 cable is by checking the color of the plastic insert inside the connector.
USB 2.0: Typically has a black or white plastic insert[1][7].
USB 3.0: Usually has a blue plastic insert[1][7].
USB 3.1/3.2: May have a teal or red plastic insert[1].
This color coding helps quickly differentiate between different USB versions. However, it's not always reliable as some manufacturers may not adhere to this standard.
Another way to identify a USB 3.0 cable is by looking for specific markings or symbols on the cable or connector.
SS: USB 3.0 cables often have the letters "SS" (SuperSpeed) printed near the connector[7].
USB 3.0: Some cables may have the "USB 3.0" logo printed on the connector or cable[5].
These markings indicate that the cable supports USB 3.0 data transfer speeds.

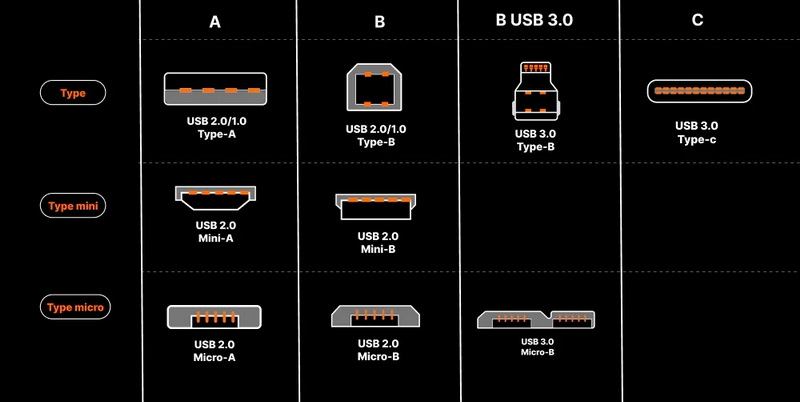

USB 3.0 cables have more pins than USB 2.0 cables.
USB 2.0: Has 4 pins.
USB 3.0: Has 9 pins[8].
By examining the connector closely, you can count the number of pins to determine the USB version. However, this method can be challenging without a magnifying glass.
A USB cable tester is a small device that plugs into the USB port and displays the type of USB cable being used[3]. This is a reliable way to identify the USB version of a cable, especially if it lacks clear markings or color coding.
If you have a USB 3.0 device and a computer with USB 3.0 ports, you can test the data transfer speed of the cable.
1. Connect the USB cable between the USB 3.0 device and the USB 3.0 port on your computer.
2. Transfer a large file (e.g., a movie or a large archive) between the device and your computer.
3. Monitor the data transfer speed.
-USB 2.0: Will typically transfer data at around 30-40 MB/s (480 Mbps)[3].
-USB 3.0: Should transfer data at speeds up to 625 MB/s (5 Gbps)[3].
If the data transfer speed is significantly higher than USB 2.0 speeds, the cable is likely USB 3.0.
Your computer's operating system can provide information about the connected USB devices and their capabilities.
Windows:
1. Open Device Manager.
2. Expand the Universal Serial Bus controllers section.
3. Locate the USB device you connected.
4. Right-click on the device and select Properties.
5. Go to the Advanced tab.
6. Look for information about the USB version or speed.
macOS:
1. Click the Apple menu and select About This Mac.
2. Click the System Report button.
3. In the sidebar, select USB under the Hardware section.
4. Locate the USB device you connected.
5. Check the Speed or Version information.
This method provides detailed information about the USB connection and can help you determine the USB version of the cable.
There are also software tools available that can identify the USB version of a connected device. These tools often provide more detailed information than the built-in operating system utilities. Some popular USB information tools include:
-USB Device Tree Viewer: A Windows application that displays detailed information about USB devices, including their USB version, speed, and capabilities.
-USBlyzer: A USB protocol analyzer for Windows that can capture and analyze USB traffic, providing insights into the USB communication.
These tools can be helpful for advanced users who need detailed information about their USB devices.
If you still have the packaging or documentation for the USB cable, check the specifications. The packaging should clearly state the USB version supported by the cable. Look for terms like "USB 3.0," "SuperSpeed," or "5 Gbps."
USB-C cables present a unique challenge because they lack the color-coded inserts found in USB-A and USB-B connectors. To determine the USB version of a USB-C cable, you can try the following:
1. Check for an E-Marker: USB-C cables have an optional "e-marker" chip that contains information about the cable's capabilities, including the USB version, power delivery, and supported protocols[7]. However, reading this e-marker requires specialized tools.
2. Count the Pins: Inspect the connector closely to see if all the pins are present. USB 2.0 cables have fewer pins than USB 3.0 cables[7]. However, this method is not foolproof as some cables may have all the pins but not be fully wired for USB 3.0 speeds.
3. Look for Markings: Some USB-C cables may have markings or logos indicating the USB version or supported data transfer speeds.
4. Test the Data Transfer Speed: Connect the cable between a USB-C device and a USB-C port on your computer and transfer a large file to test the data transfer speed.
5. Check Device Manager/System Information: Use the Device Manager (Windows) or System Information (macOS) to check the USB version of the connected device.
The price and quality of a USB cable can be an indicator of its USB version[7]. Cheaper cables are less likely to support USB 3.0 speeds. Higher-quality cables are more likely to be USB 3.0 and offer better performance and durability.
If you're experiencing issues with your USB 3.0 cable, here are some troubleshooting tips:
1. Check the Connections: Make sure the USB cable is securely connected to both the device and the computer.
2. Try a Different Port: Try connecting the USB cable to a different USB 3.0 port on your computer.
3. Update Drivers: Make sure you have the latest drivers installed for your USB devices and your computer's USB controllers.
4. Test with Another Cable: Try using a different USB 3.0 cable to see if the issue is with the cable itself.
5. Check for Compatibility Issues: Make sure the USB device and the computer are compatible with USB 3.0.
6. Restart Your Computer: Sometimes, simply restarting your computer can resolve USB connectivity issues.
Identifying the USB version of a cable is crucial for ensuring optimal performance and compatibility. By using the methods described in this article, you can confidently determine if a cable is USB 3.0 and troubleshoot any related issues. Whether you're checking the color of the connector, looking for markings, or testing the data transfer speed, these techniques will help you make informed decisions about your USB cables.
USB 3.0 ports are often blue, but this isn't always the case. Check for the "SS" (SuperSpeed) logo next to the port or consult your computer's documentation[1][7].
While many USB 3.0 cables have blue connectors, this isn't a universal standard. Always double-check for other indicators like the "SS" logo or test the data transfer speed[1][7].
Yes, USB 3.0 is backward compatible with USB 2.0 ports. However, you'll only get USB 2.0 speeds[1].
USB 3.0 has a data transfer speed of up to 5 Gbps (gigabits per second), which is about ten times faster than USB 2.0[2][8].
Click the Apple menu, select "About This Mac," then click "System Report." In the sidebar, select "USB" under the "Hardware" section to see the USB devices and their versions.
