Introduction

USB cables are essential for charging devices and transferring data[1]. However, they can sometimes malfunction[6]. Here's how to test a USB cable to ensure it's working correctly.

Checking for Physical Damage

Before testing the USB cable, examine it for any physical damage[6]. Look for frayed or bent wires, broken connectors, or any other signs of wear and tear[6]. If there is noticeable damage, the cable likely needs to be replaced[6].

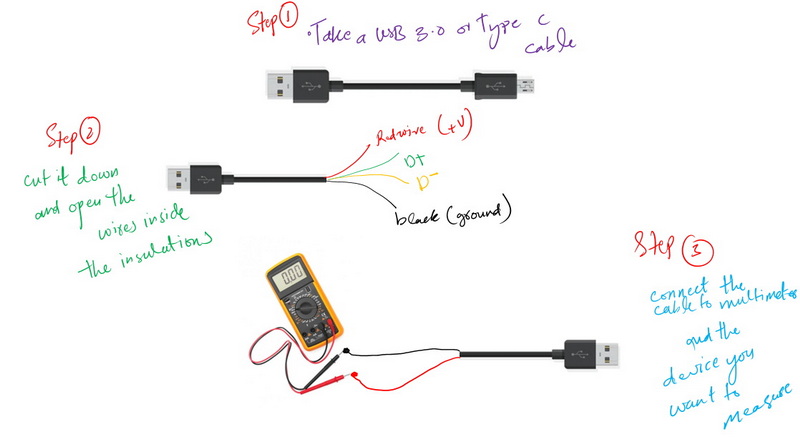

Testing with a Multimeter

A multimeter can be used to check the continuity and voltage of a USB cable[1]. Here are the steps:

1. Set the Multimeter to Continuity Mode: Turn the dial to the continuity symbol (∞). This mode checks if the electrical circuit is complete[1].

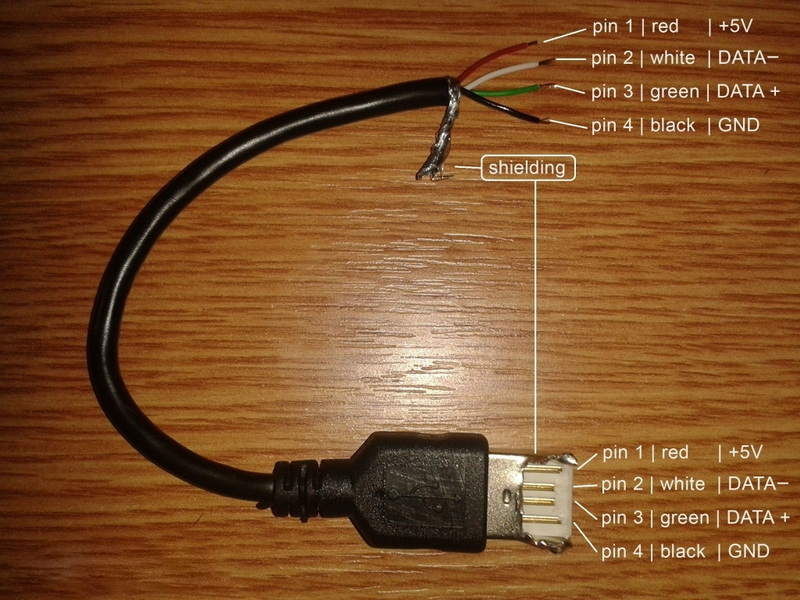

2. Identify the Cables: A typical USB cable has four wires inside: red (power), black (ground), white, and green (data)[1].

3. Check Continuity: Place the multimeter probes on either end of the corresponding cables. The multimeter should beep if the cable is functioning correctly, indicating continuity[1].

4. Check Voltage: Set the multimeter to DC voltage mode. Place the black probe on the black wire (ground) and the red probe on the red wire (power). The voltage should be between 4.5 and 5.5 volts[1][3]. A voltage outside this range indicates a potential issue[3].

5. Check Data Wires: Place the black probe on the black wire (ground) and the red probe on the white wire (data wire). Repeat for the green wire. Voltage indicates the data wires are functioning correctly[1].

Alternative Methods

Check the USB Port: Ensure the USB port is clean and free from dust or debris[6]. Use compressed air to clean it if necessary[6].

Try a Different USB Port: The issue may be with the USB port itself. Try a different port on your computer[6]. If it works in another port, the original port may need repair[6].

Use a Different Device: Test the cable with another device to see if it works[6]. If the cable works with another device, the original device may be the problem[6].

Use a Different USB Cable: If the cable still doesn't work, try a different USB cable to rule out a faulty cable[6].

Troubleshooting Steps for USB Cable Headsets[2]

1. Check Physical Connections:

Ensure the USB connector is fully inserted into the USB port on your computer[2].

Try different ports to rule out port-specific issues[2].

2. Update Drivers:

Open 'Device Manager' and locate the headset[2].

Update the driver if available or download the latest drivers from the manufacturer's website[2].

3. Configure Sound Settings:

Set the headset as the default playback and recording device in your computer's sound settings[2].

Ensure the headset volume is not muted and is set to an appropriate level[2].

4. Inspect the Cable:

Examine the USB cable for any visible signs of damage, such as fraying or cuts[2].

What to Do If a USB Port Stops Working[4]

1. Scan for Hardware Changes:

Open Device Manager[4].

Click on your computer[4].

Click 'Action' and then 'Scan for hardware changes'[4].

2. Disable and Re-enable the USB Controller:

Open Device Manager[4].

Expand 'Universal Serial Bus controllers'[4].

Right-click the first USB controller and click 'Uninstall'[4].

Repeat for each USB controller[4].

Additional Tips

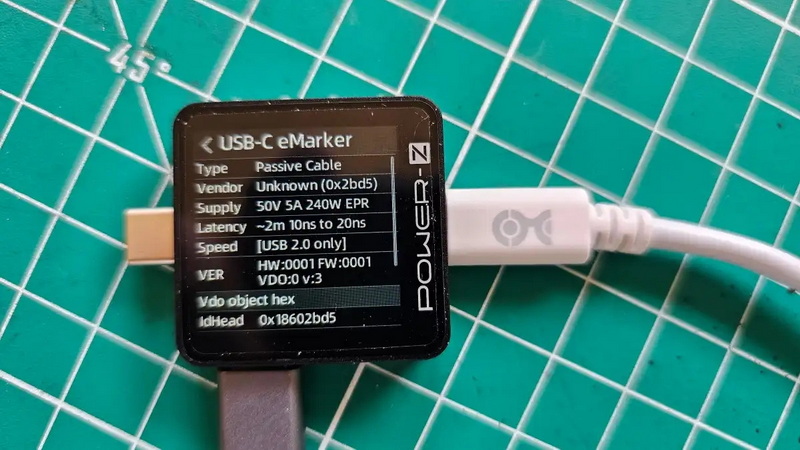

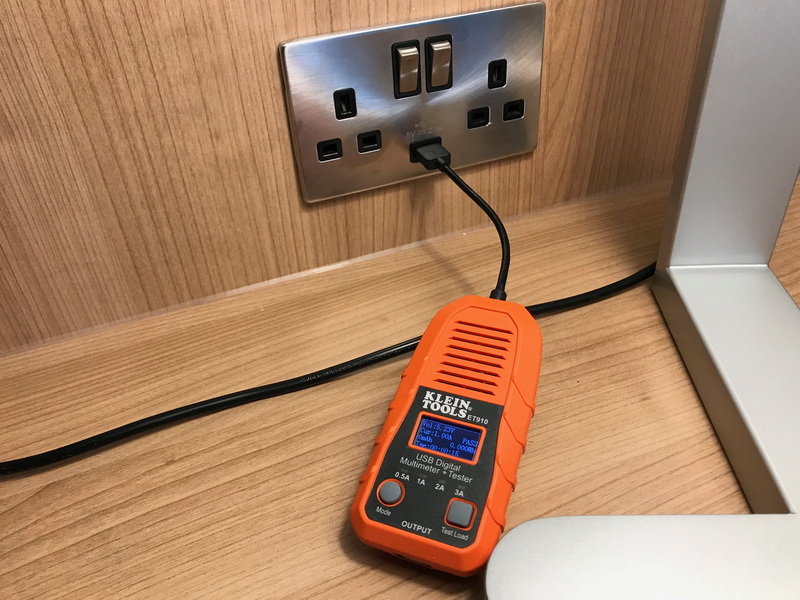

Use USB Cable Tester: Use a USB cable tester to check the capabilities of a USB cable[10].

Check Voltage Levels: The voltage level should be within the range of 4.5 to 5.5 volts[9].

Test Data Transfer: Connect the cable to a computer and check if data transfer is working[10].

Conclusion

Testing a USB cable is essential to ensure proper functionality for data transfer and charging[1]. By checking for physical damage, testing continuity and voltage with a multimeter, and trying different ports and devices, you can identify and resolve issues with your USB cables[1][6]. Regular checks and proper maintenance, such as keeping USB ports clean, can extend the life of your cables[6].

FAQ

1. How do I check a USB cable with a multimeter?

Set the multimeter to continuity mode and check each wire for continuity. Then, switch to DC voltage mode to check the voltage between the power and ground wires. It should read between 4.5V and 5.5V[1][3].

2. What does it mean if my USB cable has no continuity?

If a USB cable has no continuity, it means there is a break in the circuit, and the cable is not capable of conducting electricity. This usually indicates a damaged or faulty cable[1].

3. Can a damaged USB cable affect charging speed?

Yes, a damaged USB cable can affect charging speed. Damage to the internal wires can reduce the cable's ability to efficiently transfer power, resulting in slower charging[2].

4. How often should I replace my USB cables?

The lifespan of a USB cable depends on usage and quality. Inspect cables regularly for damage and replace them as soon as you notice any issues, such as fraying, exposed wires, or intermittent connectivity[6].

5. Is it safe to use a USB cable with exposed wires?

No, it is not safe to use a USB cable with exposed wires. Exposed wires can cause electric shock and damage your devices. Replace the cable immediately[6].
