Introduction
USB charging has revolutionized how we power portable devices, offering a universal and convenient solution for everything from smartphones to rechargeable batteries. This guide covers the technical principles, practical steps, safety considerations, and advanced techniques for charging batteries via USB cables.
USB Power Specifications
USB ports provide standardized power outputs, making them ideal for battery charging:
- USB 2.0/3.0: Delivers up to 500 mA (2.5 W) at 5V.
- USB-C with Power Delivery (PD): Supports up to 240W at variable voltages (5V–48V).
- Battery Charging (BC) 1.2: Enables up to 1.5A charging for compatible devices.
Lithium-ion (Li-ion) batteries, commonly used in electronics, require precise voltage control (typically 4.2V ±1%) to avoid damage. USB's 5V output often necessitates voltage regulation circuitry to safely charge these batteries.
The Evolution of USB Charging
The evolution of USB technology has led to enhanced charging capabilities. Initially, USB was limited in power delivery, but advancements such as USB-C and Power Delivery have expanded its potential significantly. The introduction of the Battery Charging Specification in 2007 allowed devices to draw more current from USB ports, facilitating faster charging.
USB-C ports are now ubiquitous in modern devices, providing a single solution for both power and data transfer. This versatility simplifies the user experience by reducing the number of cables and chargers needed.
Step-by-Step Guide to Charging Batteries via USB

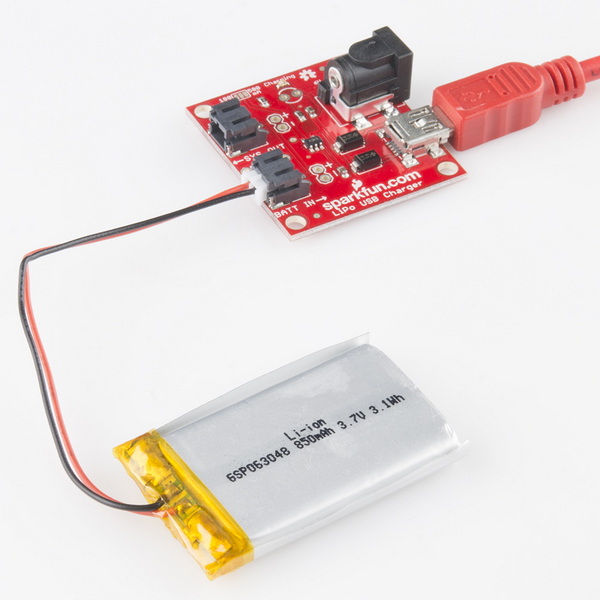

Method 1: Using a Dedicated USB Charger Module
1. Components Needed:
- TP4056 USB-C charger module (supports 5V/1A input).
- Li-ion battery (3.7V nominal).
- USB-C cable and power source (e.g., wall adapter).
2. Wiring Instructions:
- Connect the battery's positive terminal to the module's B+ pin.
- Link the negative terminal to B-.
- Plug the USB-C cable into the module and a power source.
3. Charging Indicators:
- Red LED: Charging in progress.
- Blue/Green LED: Fully charged.
4. Adjusting Charge Current:
For applications requiring different charge currents, consider using adjustable modules that allow you to set the desired current limit based on your battery specifications.

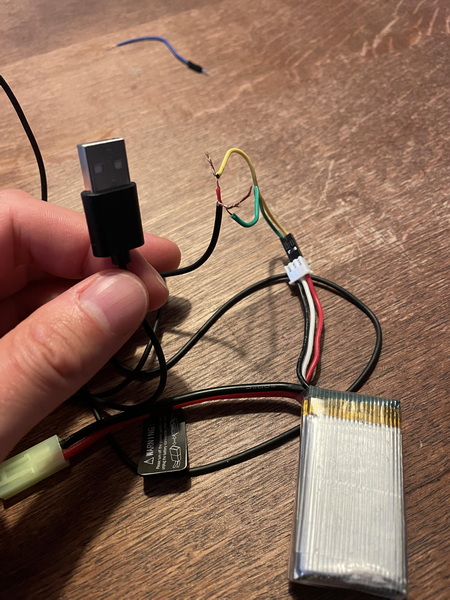

Method 2: Direct USB Cable Charging (Emergency Use)
For devices with built-in charging circuits (e.g., smartphones):
1. Strip a USB cable to expose red (+5V) and black (GND) wires.
2. Connect wires to the battery terminals (*caution: only for batteries with protection circuits*).
3. Monitor voltage closely to prevent overcharging.

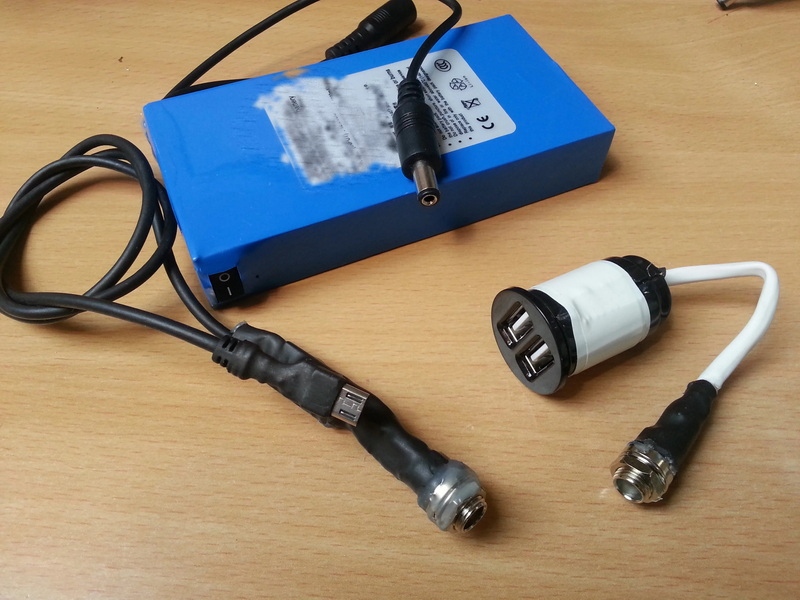

Method 3: Using Power Banks for Portable Charging
Power banks are convenient solutions for charging batteries on-the-go:
1. Ensure your power bank supports the required output specifications for your battery.
2. Connect your device using an appropriate USB cable.
3. Monitor the charge level of both your device and power bank to avoid running out of power unexpectedly.
Safety Precautions
| Risk | Mitigation Strategy |
| Overheating | Use modules with thermal protection and charge in well-ventilated areas. |
| Overvoltage | Implement voltage regulators (e.g., LM317) and use certified chargers. |
| Reverse Polarity | Add diode protection (e.g., 1N4007) to prevent damage. |
Best Practices for Safe Charging
- Always use manufacturer-recommended cables and chargers.
- Inspect cables regularly for wear or damage.
- Avoid charging devices on soft surfaces that may trap heat.
- Do not leave devices unattended while charging.
Advanced Charging Techniques
USB-C Power Delivery (PD)
USB-C PD negotiates higher voltages (e.g., 9V, 12V) for faster charging:
1. Use a PD-compatible charger and cable.
2. Pair with a buck-boost converter to step down voltage for 3.7V batteries.
3. Monitor battery temperature during charging as higher speeds can generate more heat.
Solar/USB Hybrid Charging
Combine solar panels with USB charge controllers for off-grid battery charging:
- Select solar panels that can output sufficient voltage and current.
- Use a charge controller that regulates voltage to protect your battery from overcharging.
Troubleshooting Common Issues
1. Slow Charging:
- Upgrade to a USB-C PD charger.
- Replace undersized cables (e.g., <20 AWG).
2. Device Not Recognizing Charger:
- Check for BC 1.2 compatibility.
- Test with a different USB port (e.g., SDP vs. DCP).
3. Overheating During Charge:
- Ensure proper ventilation.
- Disconnect if temperatures exceed safe limits.
4. Battery Not Holding Charge:
- Inspect for damage or wear on the battery.
- Consider replacing old or degraded batteries.
Conclusion
USB charging offers unparalleled convenience but requires careful attention to voltage limits, battery chemistry, and safety protocols. Dedicated charger modules like the TP4056 simplify the process for Li-ion batteries, while USB-C PD unlocks rapid charging for high-capacity devices.
As technology continues to advance, understanding these principles will help users make informed decisions about their charging practices and maintain their devices effectively.
Frequently Asked Questions (FAQ)
1. Can I charge any battery with a USB cable?
No—only batteries with compatible voltages (e.g., 3.7V Li-ion) and protection circuits can be safely charged via USB.
2. How long does a USB charge take?
Charge time depends on battery capacity (e.g., 2,000mAh battery at 1A = ~2 hours).
3. Is USB-C faster than micro-USB?
Yes, USB-C PD supports up to 240W vs. micro-USB's 15W.
4. Can I use a phone charger for other batteries?
Yes, if the charger's output matches the battery's voltage and current requirements.
5. Why does my battery get hot during charging?
Overheating indicates excessive current, faulty circuitry, or poor ventilation—disconnect immediately.
